基于WPF實現自定義彈窗輸入功能
更新時間：2025年07月02日 09:25:05 作者：加號3
這篇文章主要為大家詳細介紹了如何基于WPF實現自定義彈窗輸入功能,文中的示例代碼講解詳細,具有一定的借鑒價值,感興趣的小伙伴可以了解下
功能介紹：

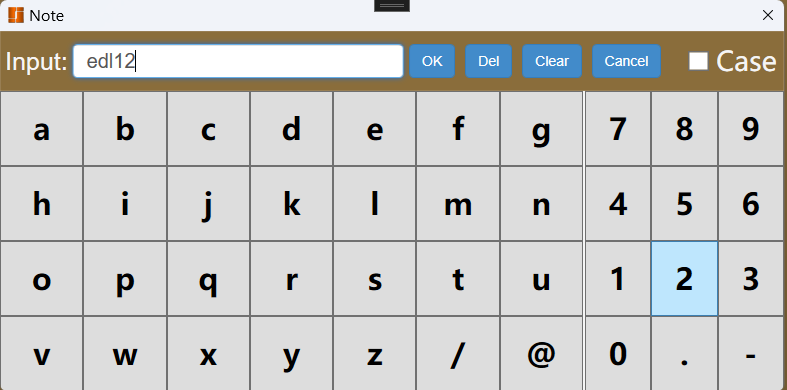

本文主要介紹了如何使用WPF實現自定義彈窗輸入效果，整體采用了Grid和DockPanel混合布局，頂部為輸入控制區,有文本框、四個功能按鈕(OK/Del/Clear/Cancel)和一個大小寫復選框；底部右側為3x4數字鍵盤布局,包含數字0-9按鈕。下面我們就來看看具體實現代碼吧
完整代碼如下：
1.前端實現
<Grid>
<Grid.RowDefinitions>
<RowDefinition Height="60" />
<RowDefinition Height="*" />
</Grid.RowDefinitions>
<Border
Grid.Row="0"
BorderBrush="WhiteSmoke"
BorderThickness="0.1">
<DockPanel Margin="5,0,0,0">
<WrapPanel
Width="380"
VerticalAlignment="Center"
DockPanel.Dock="Right">
<Button
x:Name="Button_OK"
Margin="5"
Click="Button_OK_Click"
Content="OK"
Style="{DynamicResource btn-primary}" />
<Button
x:Name="Button_Del"
Margin="5"
Click="Button_Del_Click"
Content="Del"
Style="{DynamicResource btn-primary}" />
<Button
x:Name="Button_Clear"
Margin="5"
Click="Button_Clear_Click"
Content="Clear"
Style="{DynamicResource btn-primary}" />
<Button
x:Name="Button_Cancel"
Margin="5"
Click="Button_Cancel_Click"
Content="Cancel"
Style="{DynamicResource btn-primary}" />
<CheckBox
x:Name="CheckBox_Case"
Margin="20,5,5,5"
Checked="CheckBox_Case_Checked"
Content="Case"
FontSize="18"
Foreground="WhiteSmoke"
Style="{DynamicResource CheckBox_BoxStyle}"
Unchecked="CheckBox_Case_Unchecked" />
</WrapPanel>
<DockPanel VerticalAlignment="Center">
<Label
VerticalContentAlignment="Center"
Content="Input:"
FontSize="25"
Foreground="{DynamicResource Skin-TextColor}" />
<TextBox
x:Name="TextBox_Value"
Margin="5,0,0,0"
FontSize="20"
InputMethod.IsInputMethodEnabled="False" />
</DockPanel>
</DockPanel>
</Border>
<Border Grid.Row="1">
<DockPanel>
<!-- 數字 -->
<Border
Width="200"
BorderBrush="WhiteSmoke"
BorderThickness="1,0.2,0.2,0.2"
DockPanel.Dock="Right">
<Grid>
<Grid.RowDefinitions>
<RowDefinition />
<RowDefinition />
<RowDefinition />
<RowDefinition />
</Grid.RowDefinitions>
<Grid.ColumnDefinitions>
<ColumnDefinition />
<ColumnDefinition />
<ColumnDefinition />
</Grid.ColumnDefinitions>
<Button
Grid.Row="0"
Grid.Column="0"
Click="Button_Click"
Content="7"
Style="{DynamicResource ButtonSizeAdaptive}" />
<Button
Grid.Row="0"
Grid.Column="1"
Click="Button_Click"
Content="8"
Style="{DynamicResource ButtonSizeAdaptive}" />
<Button
Grid.Row="0"
Grid.Column="2"
Click="Button_Click"
Content="9"
Style="{DynamicResource ButtonSizeAdaptive}" />
<Button
Grid.Row="1"
Grid.Column="0"
Click="Button_Click"
Content="4"
Style="{DynamicResource ButtonSizeAdaptive}" />
<Button
Grid.Row="1"
Grid.Column="1"
Click="Button_Click"
Content="5"
Style="{DynamicResource ButtonSizeAdaptive}" />
<Button
Grid.Row="1"
Grid.Column="2"
Click="Button_Click"
Content="6"
Style="{DynamicResource ButtonSizeAdaptive}" />
<Button
Grid.Row="2"
Grid.Column="0"
Click="Button_Click"
Content="1"
Style="{DynamicResource ButtonSizeAdaptive}" />
<Button
Grid.Row="2"
Grid.Column="1"
Click="Button_Click"
Content="2"
Style="{DynamicResource ButtonSizeAdaptive}" />
<Button
Grid.Row="2"
Grid.Column="2"
Click="Button_Click"
Content="3"
Style="{DynamicResource ButtonSizeAdaptive}" />
<Button
Grid.Row="3"
Grid.Column="0"
Click="Button_Click"
Content="0"
Style="{DynamicResource ButtonSizeAdaptive}" />
<Button
Grid.Row="3"
Grid.Column="1"
Click="Button_Click"
Content="."
Style="{DynamicResource ButtonSizeAdaptive}" />
<Button
Grid.Row="3"
Grid.Column="2"
Click="Button_Click"
Content="-"
Style="{DynamicResource ButtonSizeAdaptive}" />
</Grid>
</Border>
<!-- 字母 -->
<Border BorderBrush="WhiteSmoke" BorderThickness="0.2,0.2,1,0.2">
<Grid x:Name="UniformGrid_Letter">
<Grid.RowDefinitions>
<RowDefinition />
<RowDefinition />
<RowDefinition />
<RowDefinition />
</Grid.RowDefinitions>
<Grid.ColumnDefinitions>
<ColumnDefinition />
<ColumnDefinition />
<ColumnDefinition />
<ColumnDefinition />
<ColumnDefinition />
<ColumnDefinition />
<ColumnDefinition />
</Grid.ColumnDefinitions>
<!-- abcdefg -->
<Button
x:Name="Button_Letter_1"
Grid.Row="0"
Grid.Column="0"
Click="Button_Letter_Click"
Content=""
Style="{DynamicResource ButtonSizeAdaptive}" />
<Button
x:Name="Button_Letter_2"
Grid.Row="0"
Grid.Column="1"
Click="Button_Letter_Click"
Content=""
Style="{DynamicResource ButtonSizeAdaptive}" />
<Button
x:Name="Button_Letter_3"
Grid.Row="0"
Grid.Column="2"
Click="Button_Letter_Click"
Content=""
Style="{DynamicResource ButtonSizeAdaptive}" />
<Button
x:Name="Button_Letter_4"
Grid.Row="0"
Grid.Column="3"
Click="Button_Letter_Click"
Content=""
Style="{DynamicResource ButtonSizeAdaptive}" />
<Button
x:Name="Button_Letter_5"
Grid.Row="0"
Grid.Column="4"
Click="Button_Letter_Click"
Content=""
Style="{DynamicResource ButtonSizeAdaptive}" />
<Button
x:Name="Button_Letter_6"
Grid.Row="0"
Grid.Column="5"
Click="Button_Letter_Click"
Content=""
Style="{DynamicResource ButtonSizeAdaptive}" />
<Button
x:Name="Button_Letter_7"
Grid.Row="0"
Grid.Column="6"
Click="Button_Letter_Click"
Content=""
Style="{DynamicResource ButtonSizeAdaptive}" />
<!-- hijklmn -->
<Button
x:Name="Button_Letter_8"
Grid.Row="1"
Grid.Column="0"
Click="Button_Letter_Click"
Content=""
Style="{DynamicResource ButtonSizeAdaptive}" />
<Button
x:Name="Button_Letter_9"
Grid.Row="1"
Grid.Column="1"
Click="Button_Letter_Click"
Content=""
Style="{DynamicResource ButtonSizeAdaptive}" />
<Button
x:Name="Button_Letter_10"
Grid.Row="1"
Grid.Column="2"
Click="Button_Letter_Click"
Content=""
Style="{DynamicResource ButtonSizeAdaptive}" />
<Button
x:Name="Button_Letter_11"
Grid.Row="1"
Grid.Column="3"
Click="Button_Letter_Click"
Content=""
Style="{DynamicResource ButtonSizeAdaptive}" />
<Button
x:Name="Button_Letter_12"
Grid.Row="1"
Grid.Column="4"
Click="Button_Letter_Click"
Content=""
Style="{DynamicResource ButtonSizeAdaptive}" />
<Button
x:Name="Button_Letter_13"
Grid.Row="1"
Grid.Column="5"
Click="Button_Letter_Click"
Content=""
Style="{DynamicResource ButtonSizeAdaptive}" />
<Button
x:Name="Button_Letter_14"
Grid.Row="1"
Grid.Column="6"
Click="Button_Letter_Click"
Content=""
Style="{DynamicResource ButtonSizeAdaptive}" />
<!-- opqrstu -->
<Button
x:Name="Button_Letter_15"
Grid.Row="2"
Grid.Column="0"
Click="Button_Letter_Click"
Content=""
Style="{DynamicResource ButtonSizeAdaptive}" />
<Button
x:Name="Button_Letter_16"
Grid.Row="2"
Grid.Column="1"
Click="Button_Letter_Click"
Content=""
Style="{DynamicResource ButtonSizeAdaptive}" />
<Button
x:Name="Button_Letter_17"
Grid.Row="2"
Grid.Column="2"
Click="Button_Letter_Click"
Content=""
Style="{DynamicResource ButtonSizeAdaptive}" />
<Button
x:Name="Button_Letter_18"
Grid.Row="2"
Grid.Column="3"
Click="Button_Letter_Click"
Content=""
Style="{DynamicResource ButtonSizeAdaptive}" />
<Button
x:Name="Button_Letter_19"
Grid.Row="2"
Grid.Column="4"
Click="Button_Letter_Click"
Content=""
Style="{DynamicResource ButtonSizeAdaptive}" />
<Button
x:Name="Button_Letter_20"
Grid.Row="2"
Grid.Column="5"
Click="Button_Letter_Click"
Content=""
Style="{DynamicResource ButtonSizeAdaptive}" />
<Button
x:Name="Button_Letter_21"
Grid.Row="2"
Grid.Column="6"
Click="Button_Letter_Click"
Content=""
Style="{DynamicResource ButtonSizeAdaptive}" />
<!-- vwxyz-@ -->
<Button
x:Name="Button_Letter_22"
Grid.Row="3"
Grid.Column="0"
Click="Button_Letter_Click"
Content=""
Style="{DynamicResource ButtonSizeAdaptive}" />
<Button
x:Name="Button_Letter_23"
Grid.Row="3"
Grid.Column="1"
Click="Button_Letter_Click"
Content=""
Style="{DynamicResource ButtonSizeAdaptive}" />
<Button
x:Name="Button_Letter_24"
Grid.Row="3"
Grid.Column="2"
Click="Button_Letter_Click"
Content=""
Style="{DynamicResource ButtonSizeAdaptive}" />
<Button
x:Name="Button_Letter_25"
Grid.Row="3"
Grid.Column="3"
Click="Button_Letter_Click"
Content=""
Style="{DynamicResource ButtonSizeAdaptive}" />
<Button
x:Name="Button_Letter_26"
Grid.Row="3"
Grid.Column="4"
Click="Button_Letter_Click"
Content=""
Style="{DynamicResource ButtonSizeAdaptive}" />
<Button
x:Name="Button_Letter_27"
Grid.Row="3"
Grid.Column="5"
Click="Button_Letter_Click"
Content="/"
Style="{DynamicResource ButtonSizeAdaptive}" />
<Button
x:Name="Button_Letter_28"
Grid.Row="3"
Grid.Column="6"
Click="Button_Letter_Click"
Content="@"
Style="{DynamicResource ButtonSizeAdaptive}" />
</Grid>
</Border>
</DockPanel>
</Border>
</Grid>
2.后端實現
/// <summary>
/// KeyboardWindow.xaml 的交互邏輯
/// </summary>
public partial class KeyboardWindow : Window
{
List<string> letterList = new List<string>();
public KeyboardWindow(string value = "")
{
InitializeComponent();
Init(value);
}
private void Window_Closing(object sender, System.ComponentModel.CancelEventArgs e)
{
}
/// <summary>
/// 初始化
/// </summary>
private void Init(string value)
{
try
{
value = value ?? "";
TextBox_Value.Text = value;
TextBox_Value.SelectionStart = value.Length;
TextBox_Value.Focus();
string[] ss = new string[26] { "a", "b", "c", "d", "e", "f", "g", "h", "i", "j", "k", "l", "m", "n", "o", "p", "q", "r", "s", "t", "u", "v", "w", "x", "y", "z" };
letterList= ss.ToList();
Load();
}
catch
{
}
}
private void Load(bool isCase = false)
{
try
{
for (int i = 0; i < letterList.Count; i++)
{
string name = string.Format("Button_Letter_{0}", i + 1);
Button but = this.UniformGrid_Letter.FindName(name) as Button;
if (isCase)
{
but.Content = letterList[i].ToUpper();
}
else
{
but.Content = letterList[i].ToLower();
}
}
}
catch
{
}
}
#region 值輸入
/// <summary>
/// 清空
/// </summary>
/// <param name="sender"></param>
/// <param name="e"></param>
private void Button_Clear_Click(object sender, RoutedEventArgs e)
{
TextBox_Value.Text = string.Empty;
}
/// <summary>
/// 刪除
/// </summary>
/// <param name="sender"></param>
/// <param name="e"></param>
private void Button_Del_Click(object sender, RoutedEventArgs e)
{
try
{
if (TextBox_Value.Text.Trim().Length > 0)
{
TextBox_Value.Text = TextBox_Value.Text.Substring(0, TextBox_Value.Text.Trim().Length - 1);
}
}
catch
{
}
}
/// <summary>
/// 取消
/// </summary>
/// <param name="sender"></param>
/// <param name="e"></param>
private void Button_Cancel_Click(object sender, RoutedEventArgs e)
{
this.DialogResult = false;
this.Close();
}
/// <summary>
/// 確定
/// </summary>
/// <param name="sender"></param>
/// <param name="e"></param>
private void Button_OK_Click(object sender, RoutedEventArgs e)
{
try
{
this.DialogResult = true;
this.Close();
}
catch
{
}
}
#endregion
/// <summary>
/// 輸入值
/// </summary>
/// <param name="sender"></param>
/// <param name="e"></param>
private void Button_Click(object sender, RoutedEventArgs e)
{
try
{
Button but = sender as Button;
string value = but.Content.ToString();
//TextBox_Value.Text += value;
int cursorPos = TextBox_Value.SelectionStart;
TextBox_Value.Text = TextBox_Value.Text.Insert(cursorPos, value);
TextBox_Value.SelectionStart = cursorPos + value.Length;
TextBox_Value.Focus();
}
catch
{
}
}
/// <summary>
/// 返回值
/// </summary>
/// <returns></returns>
public string GetValue()
{
return TextBox_Value.Text;
}
/// <summary>
/// 字母輸入
/// </summary>
/// <param name="sender"></param>
/// <param name="e"></param>
private void Button_Letter_Click(object sender, RoutedEventArgs e)
{
try
{
Button but = sender as Button;
string value = but.Content.ToString();
//TextBox_Value.Text += value;
int cursorPos = TextBox_Value.SelectionStart;
TextBox_Value.Text = TextBox_Value.Text.Insert(cursorPos, value);
TextBox_Value.SelectionStart = cursorPos + value.Length;
TextBox_Value.Focus();
}
catch
{
}
}
/// <summary>
/// 選中大寫
/// </summary>
/// <param name="sender"></param>
/// <param name="e"></param>
private void CheckBox_Case_Checked(object sender, RoutedEventArgs e)
{
Load(true);
}
/// <summary>
/// 小寫
/// </summary>
/// <param name="sender"></param>
/// <param name="e"></param>
private void CheckBox_Case_Unchecked(object sender, RoutedEventArgs e)
{
Load(false);
}
}
3.自定義Button樣式
<Style x:Key="ButtonSizeAdaptive" TargetType="Button">
<Setter Property="VerticalContentAlignment" Value="Center" />
<Setter Property="VerticalAlignment" Value="Stretch" />
<Setter Property="HorizontalAlignment" Value="Stretch" />
<Setter Property="HorizontalContentAlignment" Value="Center" />
<Setter Property="Height" Value="Auto" />
<Setter Property="Width" Value="Auto" />
<Setter Property="FontSize" Value="30" />
<Setter Property="FontWeight" Value="Bold" />
</Style>
4.效果
到此這篇關于基于WPF實現自定義彈窗輸入功能的文章就介紹到這了,更多相關WPF自定義彈窗輸入內容請搜索腳本之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持腳本之家！
相關文章
這篇文章介紹了Revit API取得變量的內參名稱實例代碼，有需要的朋友可以參考一下2013-11-11
輕松學習C#的屬性，對C#的屬性感興趣的朋友可以參考本篇文章，幫助大家更靈活的運用C#的屬性2015-11-11
上篇文章 為什么哈希存取比較快？使用它需要付出什么代價 只是簡單介紹了使用hash所帶來的利與弊。并未涉及hash的技術細節，本文則著重學習一下如何解決哈希編址的沖突問題。2016-06-06
這篇文章主要介紹了c#檢測文本文件編碼的方法2016-03-03![詳談C# 圖片與byte[]之間以及byte[]與string之間的轉換](http://img.jbzj.com/images/xgimg/bcimg4.png)
詳談C# 圖片與byte[]之間以及byte[]與string之間的轉換
下面小編就為大家?guī)硪黄斦凜# 圖片與byte[]之間以及byte[]與string之間的轉換。小編覺得挺不錯的，現在就分享給大家，也給大家做個參考。一起跟隨小編過來看看吧2017-02-02
這篇文章介紹了C#使用DoddleReport快速生成報表的方法，文中通過示例代碼介紹的非常詳細。對大家的學習或工作具有一定的參考借鑒價值，需要的朋友可以參考下2022-06-06
今天用C#輸出XML文件時，發現報錯，經過反復檢查調試，發現是因為某處內容含有某些特殊字符，這些特殊字符是在XML里不被允許的2020-07-07
C# Winform截圖指定控件范圍內的圖像的流程步驟
工作所需,需要截圖軟件跑出來的界面上的圖表,但是窗口本身是可以縮放的,圖表也是做的可以跟著窗體大小一起縮放,所以就寫了一個函數,用于截圖圖表容器內的圖像,文中有函數源碼供大家參考,需要的朋友可以參考下2024-10-10
這篇文章主要介紹了詳解LINQ入門（下篇），文中通過示例代碼介紹的非常詳細，對大家的學習或者工作具有一定的參考學習價值，需要的朋友們下面隨著小編來一起學習學習吧2019-12-12
這篇文章主要介紹了C# 監控 Windows 文件夾的方法，本文給大家介紹的非常詳細，對大家的學習或工作具有一定的參考借鑒價值,需要的朋友可以參考下2020-03-03
