Spring?boot整合dubbo+zookeeper的詳細過程

更新時間：2025年07月11日 11:25:42 作者：ciku

本文講解Spring?Boot整合Dubbo與Zookeeper實現API、Provider、Consumer模式,包含依賴配置、啟動類注解、服務注冊與調用步驟,及QoS、超時、負載均衡等參數設置,確保分布式服務通信正常運行,感興趣的朋友一起看看吧

Spring boot整合dubbo+zookeeper

下文將簡述springboot整合dubbo+zookeeper實現api+provider+consumer模式，Api用于定于interface,provider和consumer依賴Api,provider實現api接口，consumer調用provider。
spring boot版本：3.5.3
jdk版本：java17

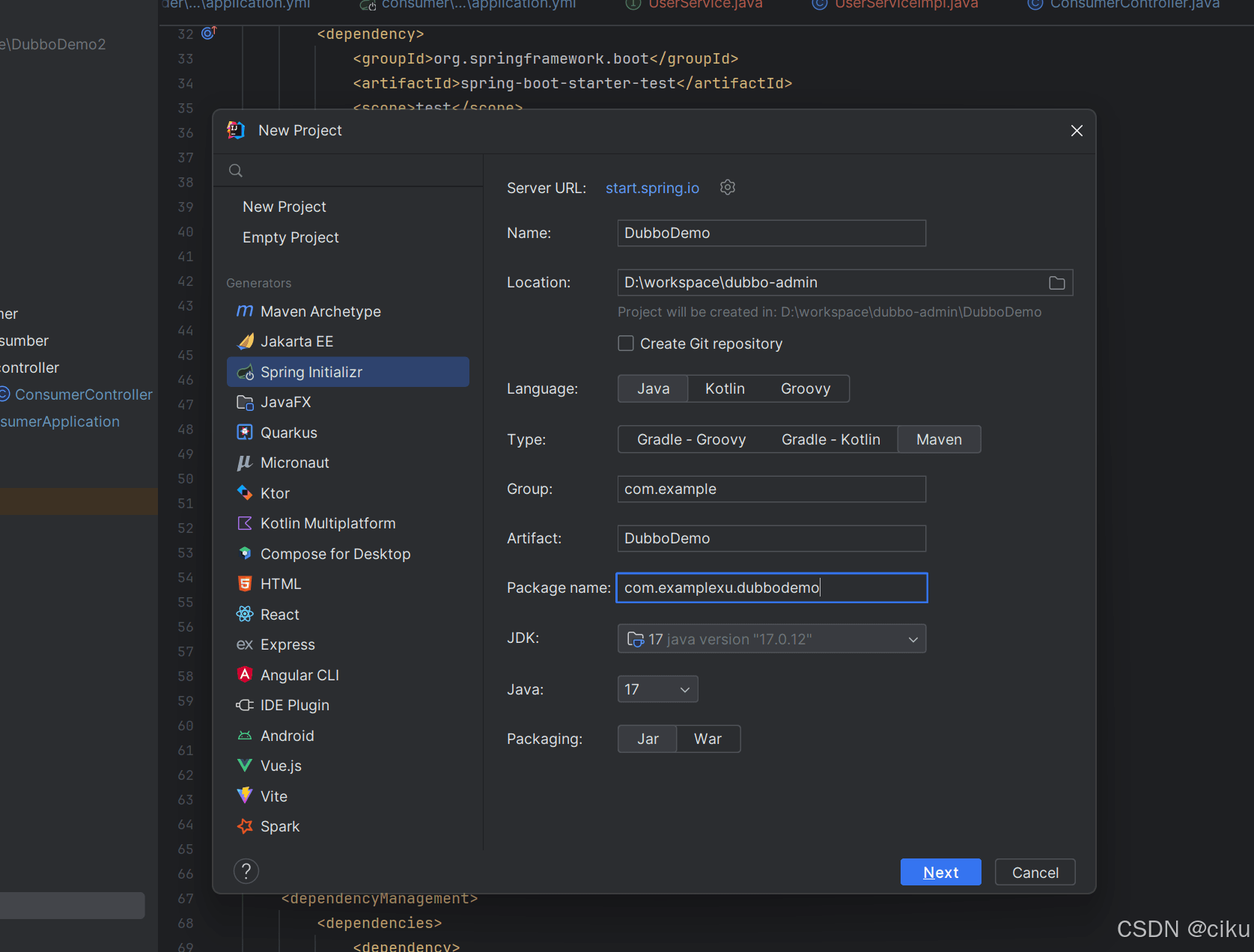

1.創建父工程

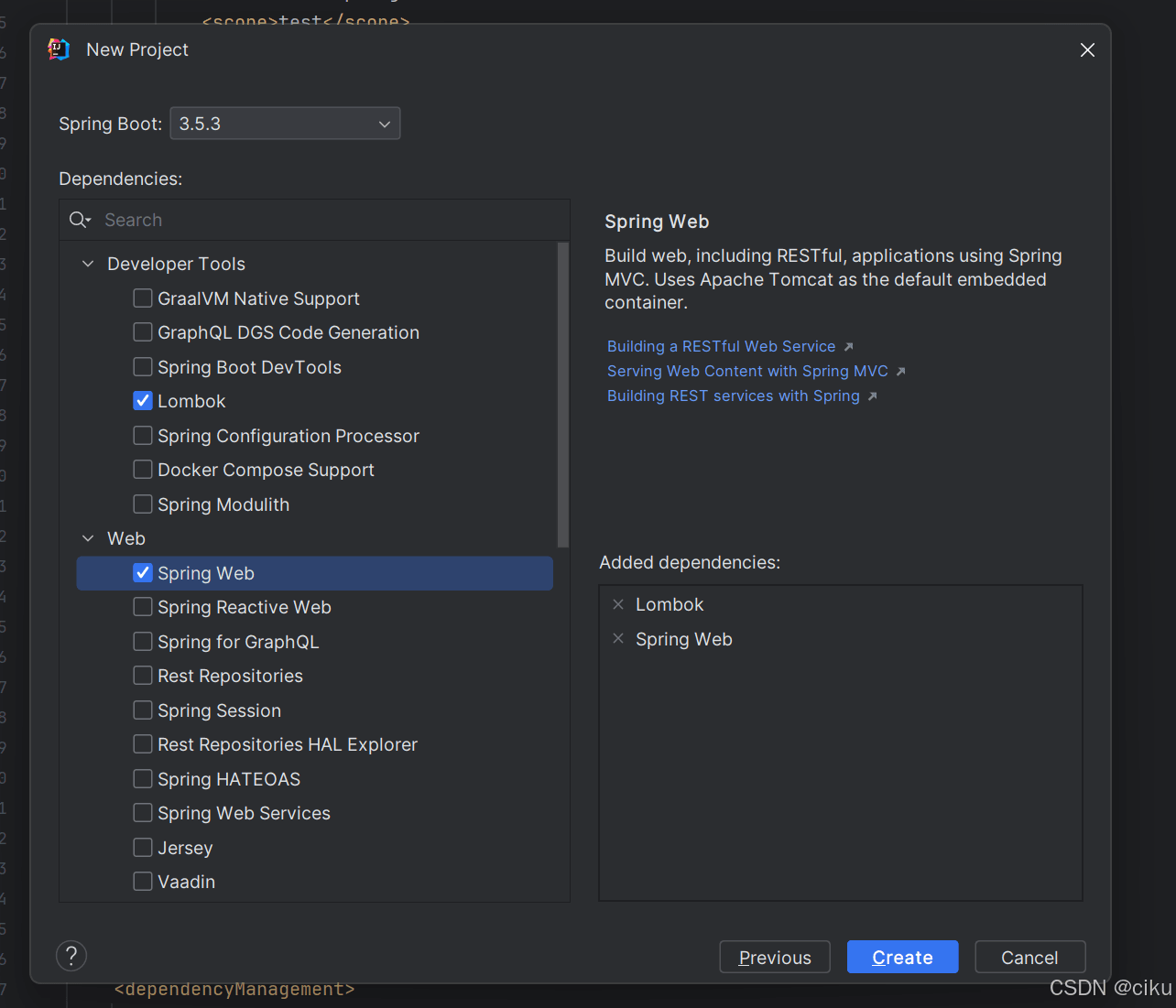

此處只勾選了spring web和lombok，需要Orm框架自行增加

2.父工程引入依賴

父工程pom.xml，引入dubbo和zookeeper相關依賴，修改packaging為pom不打包，并刪除src目錄

           <dependency>
            <groupId>org.apache.dubbo</groupId>
            <artifactId>dubbo-spring-boot-starter</artifactId>
            <version>3.2.10</version>
        </dependency>
        <!-- Zookeeper客戶端 -->
        <dependency>
            <groupId>org.apache.curator</groupId>
            <artifactId>curator-recipes</artifactId>
            <version>5.2.0</version>
        </dependency>
        <dependency>
            <groupId>org.apache.curator</groupId>
            <artifactId>curator-framework</artifactId>
            <version>5.2.0</version>
        </dependency>
        <dependency>
            <groupId>org.apache.curator</groupId>
            <artifactId>curator-x-discovery</artifactId>
            <version>5.2.0</version> <!-- 與Zookeeper版本匹配 -->
        </dependency>
           <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-dependencies</artifactId>
                <version>3.5.3</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>

3.創建api子模塊

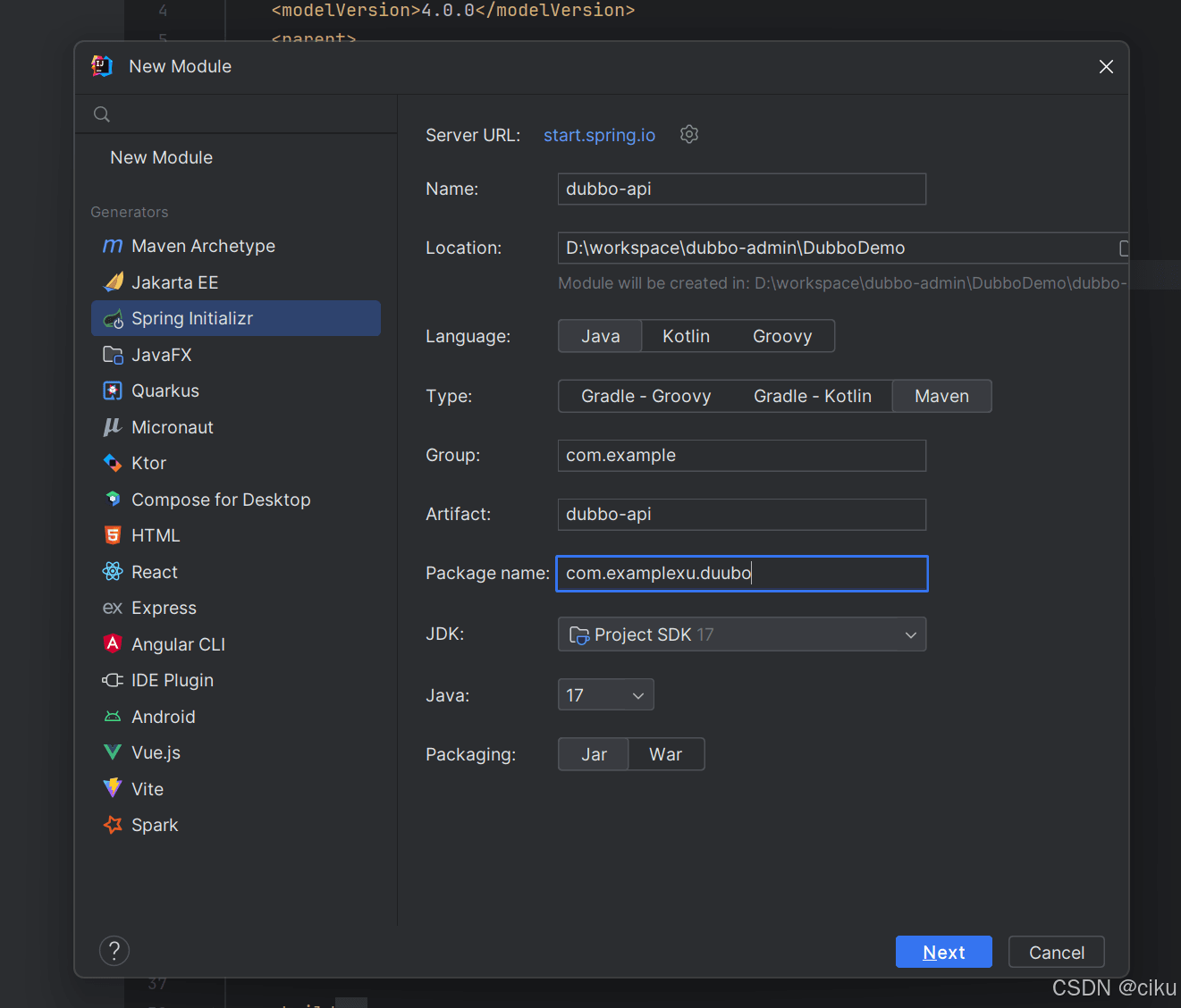

（1）.新建dubbo-api module

（2）.修改pom.xml文件
修改dubbo-api的pom.xml,parent修改為剛才新建的groupId、artifactId和version，再去掉重復的配置

<parent>
		<groupId>com.example</groupId>
		<artifactId>DubboDemo</artifactId>
		<version>0.0.1-SNAPSHOT</version>
	</parent>

父工程pom.xml增加子模塊

<modules>
		<module>dubbo-api</module>
	</modules>

（ 3）.修改配置
修改application.properties為application.yml，并增加dubbo配置內容

spring:
  application:
      name: dubbo-api
  config:
    activate:
      on-profile: default
server:
  port: 8080
dubbo:
  application:
     name: dubbo-api
  protocol:
    name: dubbo
    port: 20880
  registry:
    address: zookeeper://192.168.48.154:2181

dubbo.protocol 此處協議不是自定義的，自由dubbo、rpc等類型
registry：配置zookeeper地址
(4)啟動類，開啟dubbo，
@EnableDubbo 注解用于開啟dubbo客戶端，scanBasePackages 可以配置包路徑

@SpringBootApplication
@EnableDubbo
public class DubboApiApplication{
    public static void main(String[] args) {
        SpringApplication.run(DubboProviderApplication.class, args);
    }
}

（5）新增Service接口

public interface TestService {
    String sayHello(String name);
}

4.創建provider子模塊

（1）創建dubbo-provider模塊，和上面一樣，就不贅述了
（2）修改pom.xml文件
依賴中加入api模塊的依賴

  <dependencies>
        <dependency>
            <groupId>com.example</groupId>
            <artifactId>dubbo-api</artifactId>
            <version>0.0.1-SNAPSHOT</version>
        </dependency>
    </dependencies>

（3）修改配置文件
application.yml

spring:
  application:
   name: provider
  config:
    activate:
      on-profile: default
server:
  port: 8081
dubbo:
  application:
    name: dubbo-provider
    qos-enable: true
    qos-port: 22223
  registry:
    address: zookeeper://192.168.48.154:2181
  protocol:
    name: dubbo
    port: 20881  #同一臺機器不能相同

對比api模塊增加了qos-enable和qos-port兩個屬性，QoS是Dubbo提供的運維和管理功能，表示開啟；qos-port表示運維管理功能的端口
(4)啟動類，開啟dubbo，
@EnableDubbo 注解用于開啟dubbo客戶端，scanBasePackages 可以配置包路徑

@SpringBootApplication
@EnableDubbo
public class DubboProviderApplication {
    public static void main(String[] args) {
        System.setProperty("zookeeper.sasl.client", "false");
        SpringApplication.run(DubboProviderApplication.class, args);
    }
}

（5）實現TestService接口

package com.examplexu.dubboprovider.service;
import com.examplexu.duubo.service.TestService;
import org.apache.dubbo.config.annotation.DubboService;
@DubboService(version = "1.0.0")
public class TestServiceImpl implements TestService {
    @Override
    public String sayHello(String name) {
        return "welcome"+name+" to dubbo!";
    }
}

@DubboService 的作用為標記TestService為服務提供者，暴露為dubbo服務，并注冊到zookeeper并進行管理?？梢耘渲玫膮?shù)如下：
version: 服務版本號(必填)
timeout: 調用超時時間(毫秒)
loadbalance: 負載均衡策略
retries: 失敗重試次數
check: 啟動時檢查依賴服務是否可用

5.創建consumer子模塊

（1）創建dubbo-consumer模塊，和上面一樣，就不贅述了
（2）修改pom.xml文件
依賴中加入api模塊的依賴

  <dependencies>
        <dependency>
            <groupId>com.example</groupId>
            <artifactId>dubbo-api</artifactId>
            <version>0.0.1-SNAPSHOT</version>
        </dependency>
    </dependencies>

(3)修改配置文件

spring:
  application:
    name: consumer
  config:
    activate:
      on-profile: default
server:
  port: 8084
dubbo:
  config:
  application:
    name: dubbo-consumer
    qos-enable: true
    qos-port: 22224
  registry:
    address: zookeeper://192.168.48.154:2181
    timeout: 20000
  protocol:
    name: dubbo
    port: 20882
  config-center:
    timeout: 20000

此處增加了超時時間,注冊中心如果超時，會拋出異常，若配置了重試會進行重試操作；配置中心超時，會記錄警告日志，可能會影響動態配置更新
(5)啟動類，開啟dubbo

@SpringBootApplication
@EnableDubbo
public class DubboConsumerApplication {
    public static void main(String[] args) {
        System.setProperty("zookeeper.sasl.client", "false");
        SpringApplication.run(DubboConsumerApplication.class, args);
    }
}

（6)增加Controller調用provider

@RestController
@RequestMapping("/consumer")
public class TestController {
    @DubboReference(version = "1.0.0",timeout = 5000,loadbalance = "roundrobin",retries = 3,check = false)
    private TestService testService;
    @GetMapping("/sayHello")
    public String test(String name) {
        return testService.sayHello(name);
    }
}

@DubboReference 用于標記引用Dubbo服務，自動從注冊中心發現并創建服務代理，實現服務的遠程調用。主要配置參數如下：
version 版本號，與服務提供者提供的version一直
timeout 單次調用超時時間
loadbalance 負載均衡策略有random/roundrobin/leastactive策略，即隨機、輪詢、近期最少使用
retries 失敗自動重試次數
check 啟動時是否檢查依賴服務的可用性

6.啟動服務

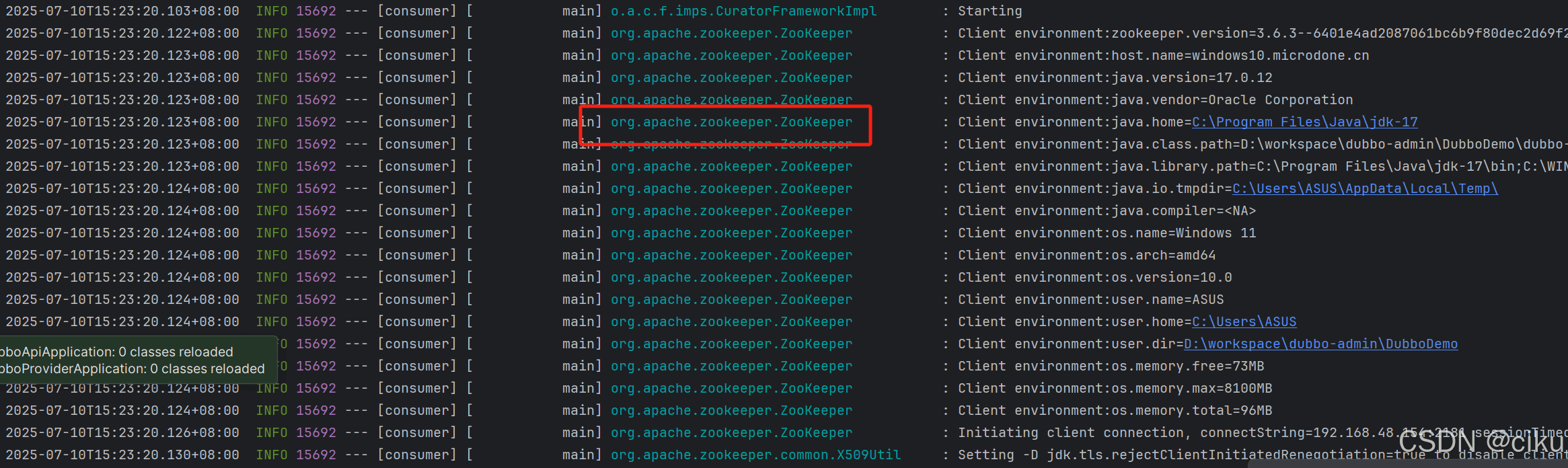

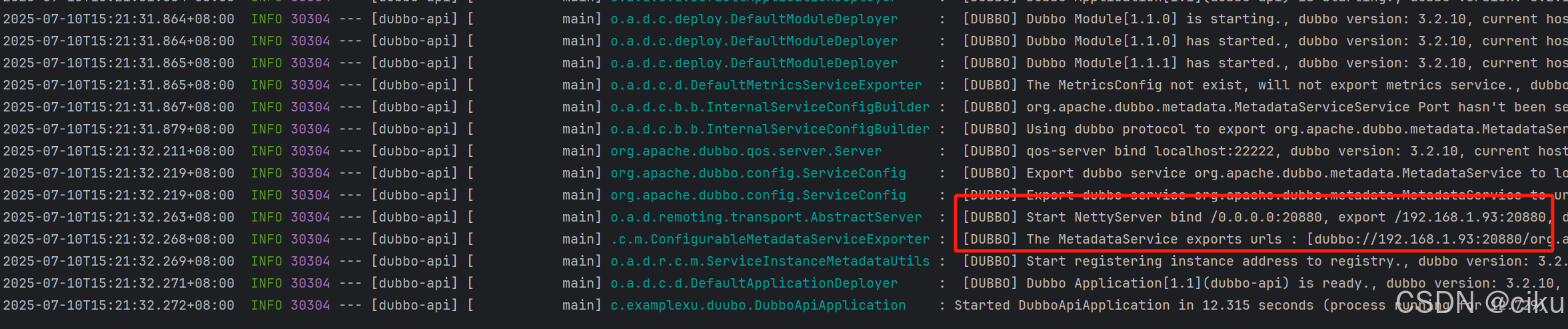

依次啟動dubbo-api、dubbo-provider、dubbo-consumer;啟動時可以查看日志會出現很多zookeeper和dubbo的日志

啟動過程中如果報錯：

2025-07-10T15:28:14.979+08:00 ERROR 37840 --- [consumer] [           main] o.a.d.c.deploy.DefaultModuleDeployer     :  [DUBBO] Model reference failed: Dubbo Module[1.1.1] , catch error : Can not create registry service-discovery-registry://192.168.48.154:2181/org.apache.dubbo.registry.RegistryService?application=dubbo-consumer&dubbo=2.0.2&executor-management-mode=isolation&file-cache=true&interface=org.apache.dubbo.registry.RegistryService&pid=37840&qos.enable=true&qos.port=22224&registry=zookeeper&release=3.2.10&timeout=20000, dubbo version: 3.2.10, current host: 192.168.1.93, error code: 5-15. This may be caused by , go to https://dubbo.apache.org/faq/5/15 to find instructions.
java.lang.RuntimeException: Can not create registry service-discovery-registry://192.168.48.154:2181/org.apache.dubbo.registry.RegistryService?application=dubbo-consumer&dubbo=2.0.2&executor-management-mode=isolation&file-cache=true&interface=org.apache.dubbo.registry.RegistryService&pid=37840&qos.enable=true&qos.port=22224&registry=zookeeper&release=3.2.10&timeout=20000
	at org.apache.dubbo.registry.support.AbstractRegistryFactory.getRegistry(AbstractRegistryFactory.java:105) ~[dubbo-3.2.10.jar:3.2.10]
	at org.apache.dubbo.registry.RegistryFactoryWrapper.getRegistry(RegistryFactoryWrapper.java:33) ~[dubbo-3.2.10.jar:3.2.10]

啟動類中新增：

 System.setProperty("zookeeper.sasl.client", "false");

表示不進行SASL認證，生產環境視要求具體設置

測試結果

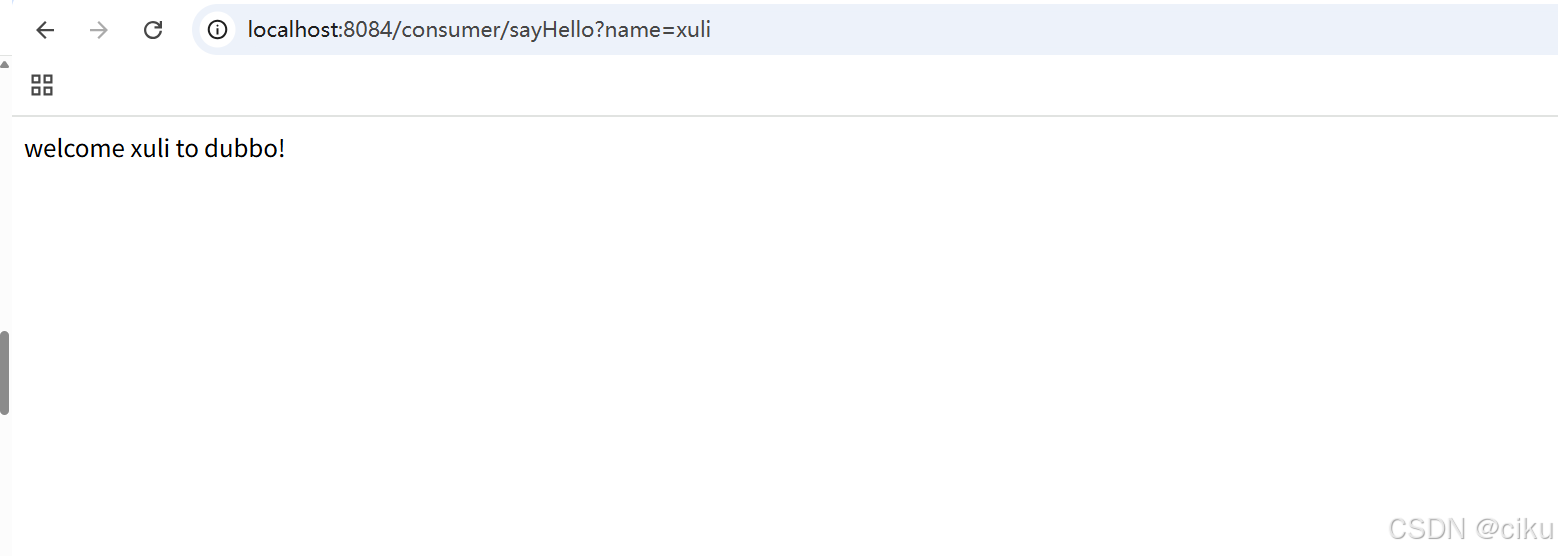

當dubbo-api、dubbo-provider和dubbo-consumer都啟動完成后，使用消費者接口訪問。

可以發現此處消費者調用的是提供者的實現內容。

到此這篇關于Spring boot整合dubbo+zookeeper的文章就介紹到這了,更多相關Spring boot整合dubbo+zookeeper內容請搜索腳本之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持腳本之家！
