SpringBoot整合Netty開發MQTT服務端

更新時間：2025年07月22日 09:45:23 作者：大魚>

Netty是一款基于NIO（Nonblocking I/O,非阻塞IO）開發的網絡通信框架,本文主要介紹了SpringBoot如何整合Netty開發MQTT服務端,感興趣的小伙伴可以了解下

Netty認知

Netty是一款基于NIO（Nonblocking I/O，非阻塞IO）開發的網絡通信框架，相比傳統Socket，在并發性方面有著很大的提升。關于NIO,BIO,AIO之間的區別，可以參考這篇博客：Java中AIO、BIO、NIO應用場景及區別

MQTT服務端實現

首先我們啟動一個tcp服務，這里我用到了Redis與RabbitMQ，主要是與分布式WEB平臺之間好對接

@Component
public class ApplicationEventListener implements CommandLineRunner {
    @Value("${spring.application.name}")
    private String nodeName;

    @Value("${gnss.mqttserver.tcpPort}")
    private int tcpPort;

    @Override
    public void run(String... args) throws Exception {
        //啟動TCP服務
        startTcpServer();

        //清除Redis所有此節點的在線終端
        RedisService redisService = SpringBeanService.getBean(RedisService.class);
        redisService.deleteAllOnlineTerminals(nodeName);

        //將所有此節點的終端設置為離線
        RabbitMessageSender messageSender = SpringBeanService.getBean(RabbitMessageSender.class);
        messageSender.noticeAllOffline(nodeName);
    }

    /**
     * 啟動TCP服務
     *
     * @throws Exception
     */
    private void startTcpServer() throws Exception {
        //計數器,必須等到所有服務啟動成功才能進行后續的操作
        final CountDownLatch countDownLatch = new CountDownLatch(1);
        //啟動TCP服務
        TcpServer tcpServer = new TcpServer(tcpPort, ProtocolEnum.MqttCommon, countDownLatch);
        tcpServer.start();
        //等待啟動完成
        countDownLatch.await();
    }
}

接下來我們編寫一個TcpServer類實現TCP服務

@Slf4j
public class TcpServer extends Thread{
    private int port;

    private ProtocolEnum protocolType;

    private EventLoopGroup bossGroup;

    private EventLoopGroup workerGroup;

    private ServerBootstrap serverBootstrap = new ServerBootstrap();

    private CountDownLatch countDownLatch;

    public TcpServer(int port, ProtocolEnum protocolType, CountDownLatch countDownLatch) {
        this.port = port;
        this.protocolType = protocolType;
        this.countDownLatch = countDownLatch;

        bossGroup = new NioEventLoopGroup(1);
        workerGroup = SpringBeanService.getBean("workerGroup", EventLoopGroup.class);
        final EventExecutorGroup executorGroup = SpringBeanService.getBean("executorGroup", EventExecutorGroup.class);
        serverBootstrap.group(bossGroup, workerGroup)
                .channel(NioServerSocketChannel.class)
                .option(ChannelOption.SO_BACKLOG, 1024)
                .childOption(ChannelOption.SO_KEEPALIVE, true)
                .childOption(ChannelOption.TCP_NODELAY, true)
                .childHandler(new ChannelInitializer<SocketChannel>() {

                    @Override
                    protected void initChannel(SocketChannel ch) throws Exception {
                        ch.pipeline().addLast(new IdleStateHandler(MqttConstant.READER_IDLE_TIME, 0, 0, TimeUnit.SECONDS));
                        ch.pipeline().addLast("encoder", MqttEncoder.INSTANCE);
                        ch.pipeline().addLast("decoder", new MqttDecoder());
                        ch.pipeline().addLast(executorGroup, MqttBusinessHandler.INSTANCE);
                    }
                });
    }

    @Override
    public void run() {
        bind();
    }

    /**
     * 綁定端口啟動服務
     */
    private void bind() {
        serverBootstrap.bind(port).addListener(future -> {
            if (future.isSuccess()) {
                log.info("{} MQTT服務器啟動,端口:{}", protocolType, port);
                countDownLatch.countDown();
            } else {
                log.error("{} MQTT服務器啟動失敗,端口:{}", protocolType, port, future.cause());
                System.exit(-1);
            }
        });
    }

    /**
     * 關閉服務端
     */
    public void shutdown() {
        workerGroup.shutdownGracefully();
        bossGroup.shutdownGracefully();
        log.info("{} TCP服務器關閉,端口:{}", protocolType, port);
    }
}

編寫一個解碼器MqttBusinessHandler，實現對MQTT消息接收與處理

@Slf4j
@ChannelHandler.Sharable
public class MqttBusinessHandler extends SimpleChannelInboundHandler<Object> {
    public static final MqttBusinessHandler INSTANCE = new MqttBusinessHandler();
    private MqttMsgBack mqttMsgBack;
    private MqttBusinessHandler() {
        mqttMsgBack= MqttMsgBack.INSTANCE;
    }

    /**
     * 接收到消息后處理
     * @param ctx
     * @param msg
     * @throws Exception
     */
    @Override
    protected void channelRead0(ChannelHandlerContext ctx, Object msg) throws Exception {
        if (null != msg) {
            MqttMessage mqttMessage = (MqttMessage) msg;
            MqttFixedHeader mqttFixedHeader = mqttMessage.fixedHeader();
            Channel channel = ctx.channel();
            if(mqttFixedHeader.messageType().equals(MqttMessageType.CONNECT)){
                //在一個網絡連接上，客戶端只能發送一次CONNECT報文。服務端必須將客戶端發送的第二個CONNECT報文當作協議違規處理并斷開客戶端的連接
                //建議connect消息單獨處理，用來對客戶端進行認證管理等 這里直接返回一個CONNACK消息
                mqttMsgBack.connectionAck(ctx, mqttMessage);
            }

            switch (mqttFixedHeader.messageType()){
                //客戶端發布消息
                case PUBLISH:
                    mqttMsgBack.publishAck(ctx, mqttMessage);
                    break;
                //發布釋放
                case PUBREL:
                    mqttMsgBack.publishComp(ctx, mqttMessage);
                    break;
                //訂閱主題
                case SUBSCRIBE:
                    mqttMsgBack.subscribeAck(ctx, mqttMessage);
                    break;
                //取消訂閱主題
                case UNSUBSCRIBE:
                    mqttMsgBack.unsubscribeAck(ctx, mqttMessage);
                    break;
                //客戶端發送心跳報文
                case PINGREQ:
                    mqttMsgBack.pingResp(ctx, mqttMessage);
                    break;
                //客戶端主動斷開連接
                case DISCONNECT:
                    break;
                default:
                    break;
            }
        }
    }

    @Override
    public void channelInactive(ChannelHandlerContext ctx) throws Exception {
        log.info("終端關閉連接,IP信息:{}", CommonUtil.getClientAddress(ctx));
    }

    @Override
    public void exceptionCaught(ChannelHandlerContext ctx, Throwable cause) throws Exception {
        ctx.close();
        log.error("終端連接異常,IP信息:{}", CommonUtil.getClientAddress(ctx), cause);
    }

    /**
     * 	服務端當讀超時時會調用這個方法
     */
    @Override
    public void userEventTriggered(ChannelHandlerContext ctx, Object evt) throws Exception, IOException {
        ctx.close();
        log.error("讀超時,IP信息:{}", CommonUtil.getClientAddress(ctx), evt);
    }

我們對接收到的消息進行業務處理

@Slf4j
public class MqttMsgBack {
    public static final MqttMsgBack INSTANCE = new MqttMsgBack();
    private RedisService redisService;
    private RabbitMessageSender messageSender;
    private Environment environment;
    private MessageServiceProvider messageServiceProvider;

    private MqttMsgBack() {
        redisService = SpringBeanService.getBean(RedisService.class);
        messageSender = SpringBeanService.getBean(RabbitMessageSender.class);
        environment = SpringBeanService.getBean(Environment.class);
        messageServiceProvider = SpringBeanService.getBean(MessageServiceProvider.class);
    }

    /**
     * 	確認連接請求
     * @param ctx
     * @param mqttMessage
     */
    public void connectionAck (ChannelHandlerContext ctx, MqttMessage mqttMessage) {
        MqttConnectMessage mqttConnectMessage = (MqttConnectMessage) mqttMessage;
        MqttFixedHeader mqttFixedHeaderInfo = mqttConnectMessage.fixedHeader();
        MqttConnectVariableHeader mqttConnectVariableHeaderInfo = mqttConnectMessage.variableHeader();
        //構建返回報文， 可變報頭
        MqttConnAckVariableHeader mqttConnAckVariableHeaderBack = new MqttConnAckVariableHeader(MqttConnectReturnCode.CONNECTION_ACCEPTED, mqttConnectVariableHeaderInfo.isCleanSession());
        //構建返回報文， 固定報頭
        MqttFixedHeader mqttFixedHeaderBack = new MqttFixedHeader(MqttMessageType.CONNACK,mqttFixedHeaderInfo.isDup(), MqttQoS.AT_MOST_ONCE, mqttFixedHeaderInfo.isRetain(), 0x02);
        //構建連接回復消息體
        MqttConnAckMessage connAck = new MqttConnAckMessage(mqttFixedHeaderBack, mqttConnAckVariableHeaderBack);
        ctx.writeAndFlush(connAck);
        //獲取連接者的ClientId
        String clientIdentifier = mqttConnectMessage.payload().clientIdentifier();
        //查詢終端號碼有無在平臺注冊
        TerminalProto terminalInfo = redisService.getTerminalInfoByTerminalNum(clientIdentifier);
        if (terminalInfo == null) {
            log.error("終端登錄失敗,未找到終端信息,終端號:{},IP信息:{}", clientIdentifier, CommonUtil.getClientAddress(ctx));
            ctx.close();
            return;
        }
        //設置節點名
        terminalInfo.setNodeName(environment.getProperty("spring.application.name"));
        //保存終端信息和消息流水號到上下文屬性中
        Session session = new Session(terminalInfo);
        ChannelHandlerContext oldCtx = SessionUtil.bindSession(session, ctx);
        if (oldCtx == null) {
            log.info("終端登錄成功,終端ID:{},終端號:{},IP信息:{}", terminalInfo.getTerminalStrId(), clientIdentifier, CommonUtil.getClientAddress(ctx));
        } else {
            log.info("終端重復登錄關閉上一個連接,終端ID:{},終端號:{},IP信息:{}", terminalInfo.getTerminalStrId(), clientIdentifier, CommonUtil.getClientAddress(ctx));
            oldCtx.close();
        }
        //通知上線
        messageSender.noticeOnline(terminalInfo);
        log.info("終端登錄成功,終端號:{},IP信息:{}", clientIdentifier, CommonUtil.getClientAddress(ctx));
    }

    /**
     * 	根據qos發布確認
     * @param ctx
     * @param mqttMessage
     */
    public void publishAck (ChannelHandlerContext ctx, MqttMessage mqttMessage) {
        MqttPublishMessage mqttPublishMessage = (MqttPublishMessage) mqttMessage;
        MqttFixedHeader mqttFixedHeaderInfo = mqttPublishMessage.fixedHeader();
        MqttQoS qos = (MqttQoS) mqttFixedHeaderInfo.qosLevel();
        //得到主題
        String topicName = mqttPublishMessage.variableHeader().topicName();
        //獲取消息體
        ByteBuf msgBodyBuf = mqttPublishMessage.payload();
        log.info("收到:{}", ByteBufUtil.hexDump(msgBodyBuf));
        MqttCommonMessage msg=new MqttCommonMessage();
        msg.setTerminalNum(SessionUtil.getTerminalInfo(ctx).getTerminalNum());
        msg.setStrMsgId(topicName);

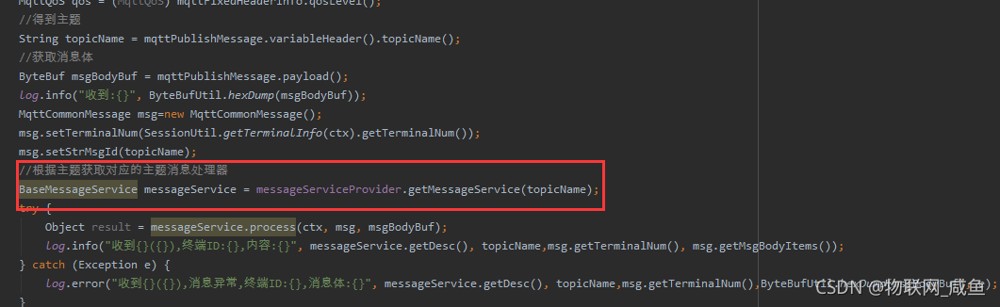

        //根據主題獲取對應的主題消息處理器
        BaseMessageService messageService = messageServiceProvider.getMessageService(topicName);
        try {
            Object result = messageService.process(ctx, msg, msgBodyBuf);
            log.info("收到{}({}),終端ID:{},內容:{}", messageService.getDesc(), topicName,msg.getTerminalNum(), msg.getMsgBodyItems());
        } catch (Exception e) {
            log.error("收到{}({}),消息異常,終端ID:{},消息體:{}", messageService.getDesc(), topicName,msg.getTerminalNum(),ByteBufUtil.hexDump(msgBodyBuf), e);
        }
        switch (qos) {
            //至多一次
            case AT_MOST_ONCE:
                break;
            //至少一次
            case AT_LEAST_ONCE:
                //構建返回報文， 可變報頭
                MqttMessageIdVariableHeader mqttMessageIdVariableHeaderBack = MqttMessageIdVariableHeader.from(mqttPublishMessage.variableHeader().packetId());
                //構建返回報文， 固定報頭
                MqttFixedHeader mqttFixedHeaderBack = new MqttFixedHeader(MqttMessageType.PUBACK,mqttFixedHeaderInfo.isDup(), MqttQoS.AT_MOST_ONCE, mqttFixedHeaderInfo.isRetain(), 0x02);
                //構建PUBACK消息體
                MqttPubAckMessage pubAck = new MqttPubAckMessage(mqttFixedHeaderBack, mqttMessageIdVariableHeaderBack);
                log.info("Qos:AT_LEAST_ONCE:{}",pubAck.toString());
                ctx.writeAndFlush(pubAck);
                break;
            //剛好一次
            case EXACTLY_ONCE:
                //構建返回報文，固定報頭
                MqttFixedHeader mqttFixedHeaderBack2 = new MqttFixedHeader(MqttMessageType.PUBREC,false, MqttQoS.AT_LEAST_ONCE,false,0x02);
                //構建返回報文，可變報頭
                MqttMessageIdVariableHeader mqttMessageIdVariableHeaderBack2 = MqttMessageIdVariableHeader.from(mqttPublishMessage.variableHeader().packetId());
                MqttMessage mqttMessageBack = new MqttMessage(mqttFixedHeaderBack2,mqttMessageIdVariableHeaderBack2);
                log.info("Qos:EXACTLY_ONCE回復:{}"+mqttMessageBack.toString());
                ctx.writeAndFlush(mqttMessageBack);
                break;
            default:
                break;
        }
    }

    /**
     * 發布完成 qos2
     * @param ctx
     * @param mqttMessage
     */
    public void publishComp (ChannelHandlerContext ctx, MqttMessage mqttMessage) {

        MqttMessageIdVariableHeader messageIdVariableHeader = (MqttMessageIdVariableHeader) mqttMessage.variableHeader();
        //構建返回報文， 固定報頭
        MqttFixedHeader mqttFixedHeaderBack = new MqttFixedHeader(MqttMessageType.PUBCOMP,false, MqttQoS.AT_MOST_ONCE,false,0x02);
        //構建返回報文， 可變報頭
        MqttMessageIdVariableHeader mqttMessageIdVariableHeaderBack = MqttMessageIdVariableHeader.from(messageIdVariableHeader.messageId());
        MqttMessage mqttMessageBack = new MqttMessage(mqttFixedHeaderBack,mqttMessageIdVariableHeaderBack);
        log.info("發布完成回復:{}"+mqttMessageBack.toString());
        ctx.writeAndFlush(mqttMessageBack);
    }

    /**
     * 	訂閱確認
     * @param ctx
     * @param mqttMessage
     */
    public void subscribeAck(ChannelHandlerContext ctx, MqttMessage mqttMessage) {
        MqttSubscribeMessage mqttSubscribeMessage = (MqttSubscribeMessage) mqttMessage;
        MqttMessageIdVariableHeader messageIdVariableHeader = mqttSubscribeMessage.variableHeader();
        //構建返回報文， 可變報頭
        MqttMessageIdVariableHeader variableHeaderBack = MqttMessageIdVariableHeader.from(messageIdVariableHeader.messageId());
        Set<String> topics = mqttSubscribeMessage.payload().topicSubscriptions().stream().map(mqttTopicSubscription -> mqttTopicSubscription.topicName()).collect(Collectors.toSet());
        List<Integer> grantedQoSLevels = new ArrayList<>(topics.size());
        for (int i = 0; i < topics.size(); i++) {
            grantedQoSLevels.add(mqttSubscribeMessage.payload().topicSubscriptions().get(i).qualityOfService().value());
        }
        //	構建返回報文	有效負載
        MqttSubAckPayload payloadBack = new MqttSubAckPayload(grantedQoSLevels);
        //	構建返回報文	固定報頭
        MqttFixedHeader mqttFixedHeaderBack = new MqttFixedHeader(MqttMessageType.SUBACK, false, MqttQoS.AT_MOST_ONCE, false, 2+topics.size());
        //	構建返回報文	訂閱確認
        MqttSubAckMessage subAck = new MqttSubAckMessage(mqttFixedHeaderBack,variableHeaderBack, payloadBack);
        log.info("訂閱回復:{}", subAck.toString());
        ctx.writeAndFlush(subAck);
    }

    /**
     * 取消訂閱確認
     * @param ctx
     * @param mqttMessage
     */
    public void unsubscribeAck(ChannelHandlerContext ctx, MqttMessage mqttMessage) {
        MqttMessageIdVariableHeader messageIdVariableHeader = (MqttMessageIdVariableHeader) mqttMessage.variableHeader();
        //	構建返回報文	可變報頭
        MqttMessageIdVariableHeader variableHeaderBack = MqttMessageIdVariableHeader.from(messageIdVariableHeader.messageId());
        //	構建返回報文	固定報頭
        MqttFixedHeader mqttFixedHeaderBack = new MqttFixedHeader(MqttMessageType.UNSUBACK, false, MqttQoS.AT_MOST_ONCE, false, 2);
        //	構建返回報文	取消訂閱確認
        MqttUnsubAckMessage unSubAck = new MqttUnsubAckMessage(mqttFixedHeaderBack,variableHeaderBack);
        log.info("取消訂閱回復:{}",unSubAck.toString());
        ctx.writeAndFlush(unSubAck);
    }

    /**
     * 心跳響應
     * @param ctx
     * @param mqttMessage
     */
    public void pingResp (ChannelHandlerContext ctx, MqttMessage mqttMessage) {
        MqttFixedHeader fixedHeader = new MqttFixedHeader(MqttMessageType.PINGRESP, false, MqttQoS.AT_MOST_ONCE, false, 0);
        MqttMessage mqttMessageBack = new MqttMessage(fixedHeader);
        log.info("心跳回復:{}", mqttMessageBack.toString());
        ctx.writeAndFlush(mqttMessageBack);
    }
}

我們可以根據客戶端發布消息的主題匹配不同的處理器

最后，我們?cè)趯?duì)應的處理器里面實現對主題消息的處理邏輯，比如：定位消息，指令消息等等，比如簡單實現對定位數據Location主題的消息處理

@Slf4j
@MessageService(strMessageId = "Location", desc = "定位")
public class LocationMessageService extends BaseMessageService<MqttCommonMessage> {
    @Autowired
    private RabbitMessageSender messageSender;

    @Override
    public Object process(ChannelHandlerContext ctx, MqttCommonMessage msg, ByteBuf msgBodyBuf) throws Exception {
        byte[] msgByteArr = new byte[msgBodyBuf.readableBytes()];
        msgBodyBuf.readBytes(msgByteArr);
        String data = new String(msgByteArr);
        msg.putMessageBodyItem("位置", data);
        return null;
    }
}

后續

目前僅僅是實現MQTT服務端消息接收與消息回復，后續可以根據接入的物聯網設備進行對應主題消息的業務處理

到此這篇關于SpringBoot整合Netty開發MQTT服務端的文章就介紹到這了,更多相關SpringBoot MQTT服務端內容請搜索腳本之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持腳本之家！

您可能感興趣的文章:
