C#實現釘釘消息推送過程

更新時間：2025年07月23日 14:21:46 作者：老農民編程

本文介紹通過C#實現釘釘消息推送報警數據至群聊的方法,重點講解機器人設置步驟（建群、添加自定義機器人、配置關鍵字和Webhook）及C#代碼實現,支持文本、Markdown等消息類型,用于設備報警提醒場景

前言

想起之前有個項目需要使用釘釘消息推送報警數據到群里，提醒群里人員知道設備報警。

這篇是通過C#實現釘釘消息推送，因?yàn)獒斸敊C(jī)器人設定需設置安全設置，有三個（自定義關鍵詞、加簽、IP地址(段)），目前是設置自定義關鍵詞通過C#消息推送。

一、釘釘機器人如何設置

1、釘釘機器人設置需建群（在群里才能機器人）

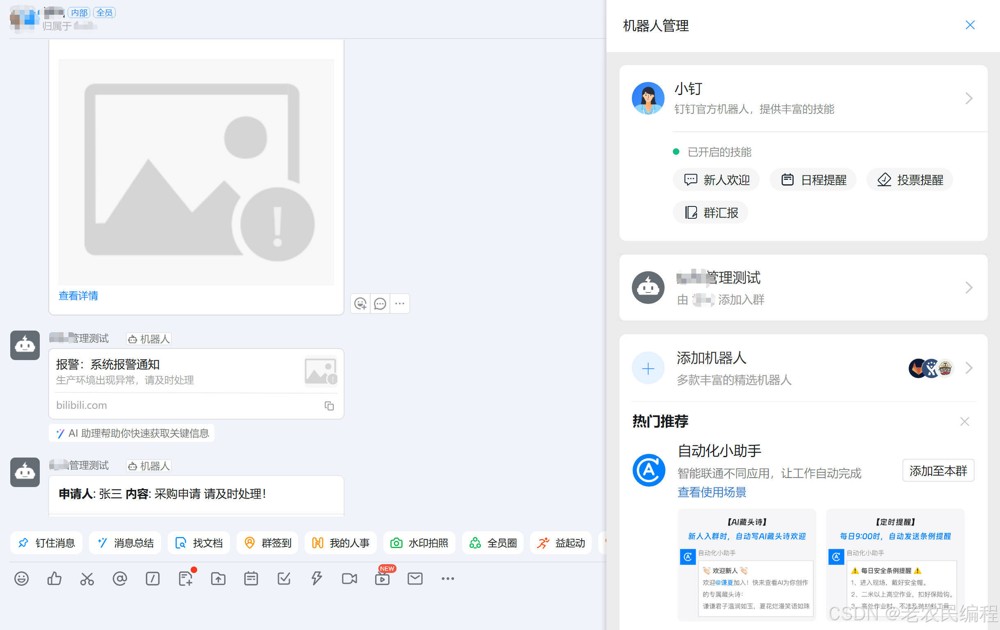

2、點擊群設置，在群管理里點擊機器人管理。

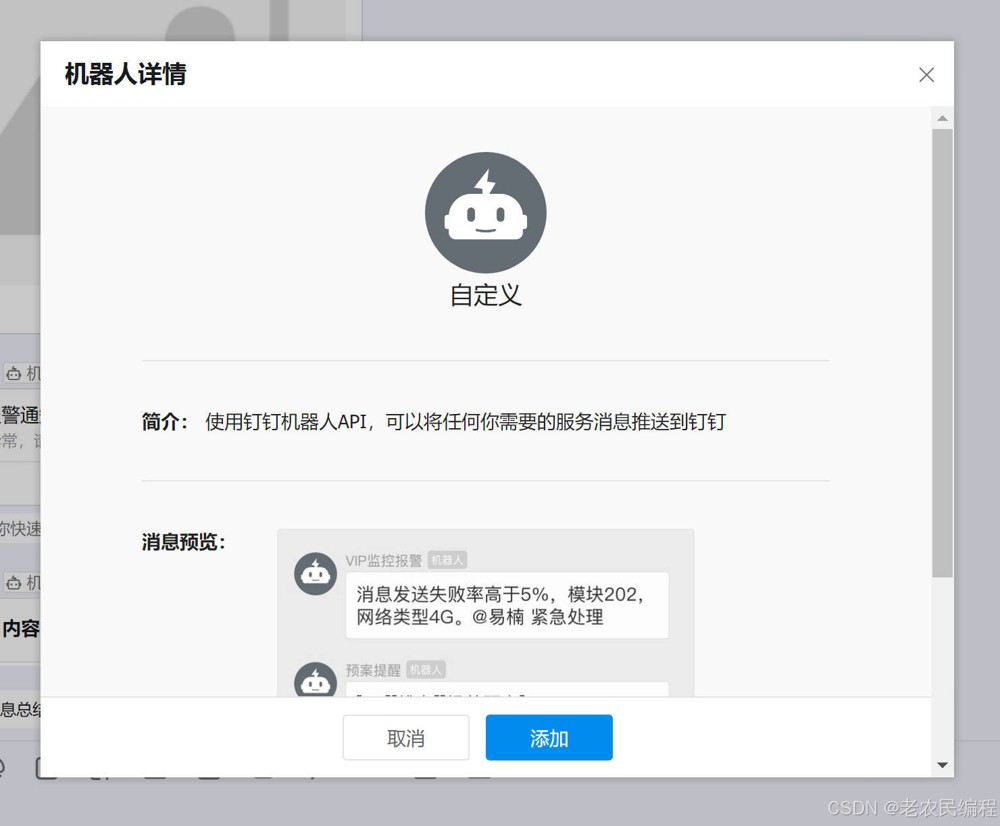

3、點擊添加機器人選擇自定義機器人點擊添加。

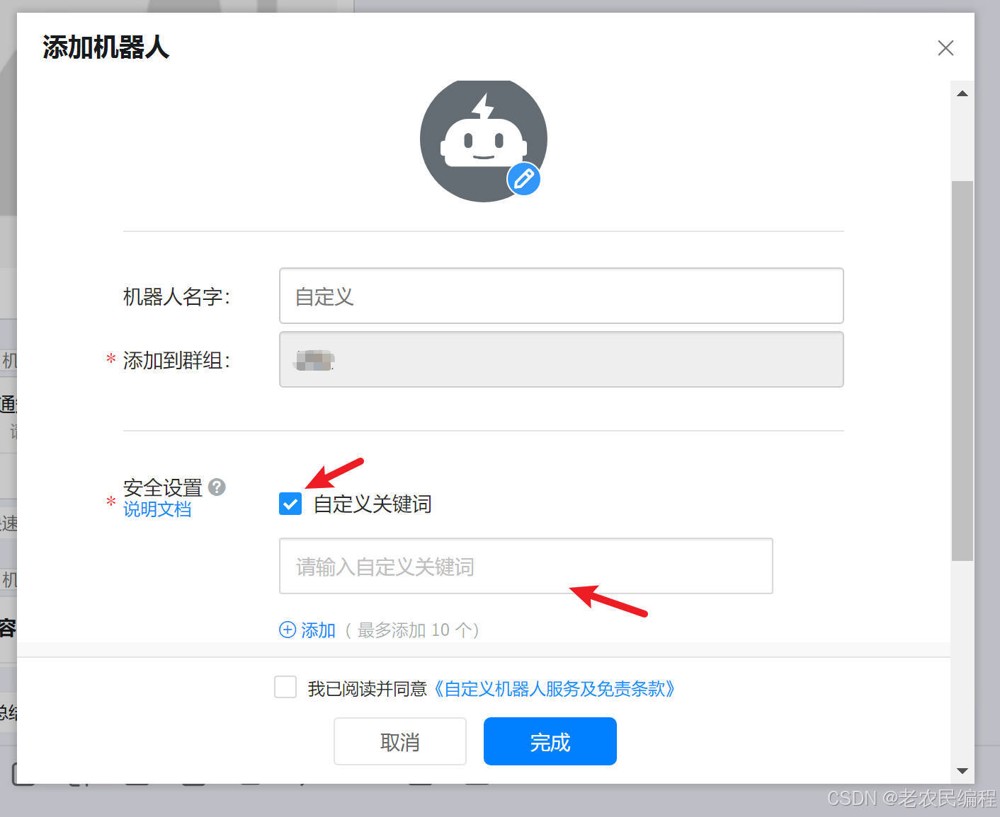

4、在添加釘釘機器人時需要確定加密方式有以下幾種：

自定義關鍵字
加簽
IP地址段

注：因目前所選方式為第一種，所以需輸入自定義關鍵字，如："報警："

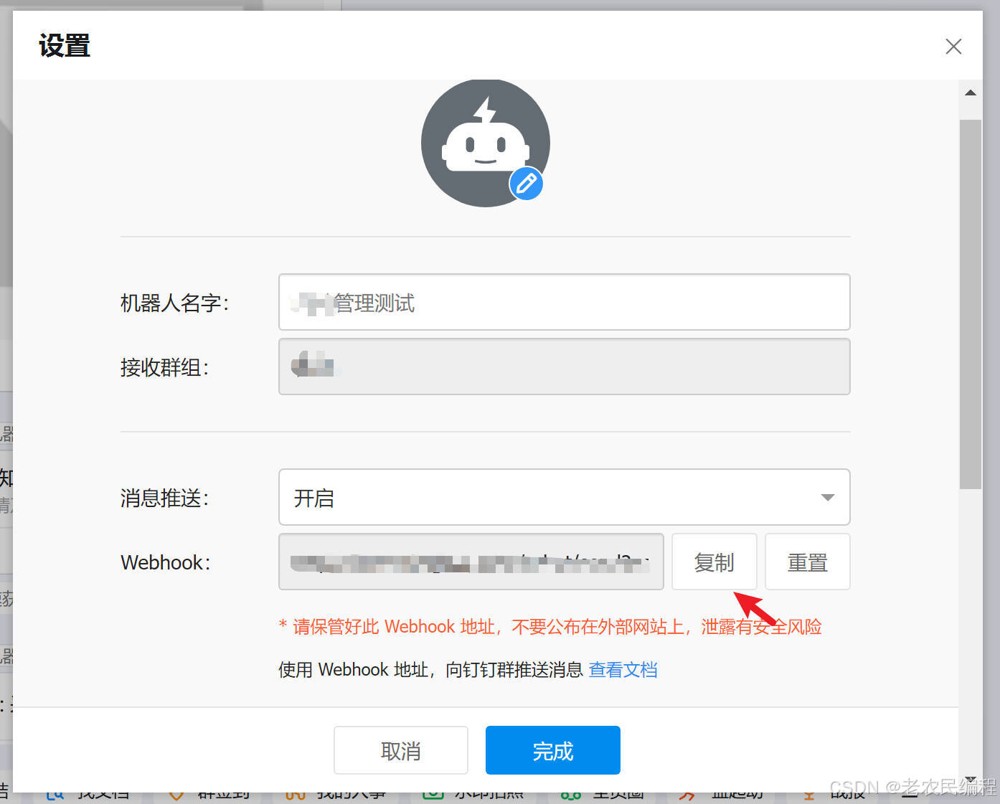

5、點擊完成后，釘釘會給出一個webhook，需復制webhook在C#中使用。

6、如果自定義機器人在群里發送招呼話語，說明已建造設置成功。

二、C#實現釘釘消息推送

1.釘釘消息類型

釘釘消息有六種消息類型，總結如下：

類型	是否支持交互	關鍵特性	適用場景
文本	?	純文本，支持@成員	簡單通知、報警
Markdown	?	支持Markdown格式化	復雜內容(如日志報告)
鏈接	?	標題+圖片+跳轉鏈接	帶縮略圖的通知
ActionCard	?	單、多 1-2個可點擊按鈕	審批、任務處理
FeedCard	?	多條鏈接列表	聚合通知(如新聞列表)

2.代碼實現

使用C#控制臺實現釘釘機器人消息推送。

1）DingTalkRobot類型

釘釘機器人信息推送，代碼如下（示例）：

using System;
using System.Net.Http;
using System.Text;
using System.Threading.Tasks;

public class DingTalkRobot
{
    private readonly string _webhookUrl;
    private readonly HttpClient _httpClient;

    public DingTalkRobot(string webhookUrl)
    {
        _webhookUrl = webhookUrl ?? throw new ArgumentNullException(nameof(webhookUrl));
        _httpClient = new HttpClient();
    }

    /// <summary>
    /// 發送文本消息
    /// </summary>
    /// <param name="content">消息內容</param>
    /// <param name="atMobiles">需要@的手機號數組</param>
    /// <param name="isAtAll">是否@所有人</param>
    public async Task SendTextMessageAsync(string content, string[] atMobiles = null, bool isAtAll = false)
    {
        var message = new
        {
            msgtype = "text",
            text = new
            {
                content = content
            },
            at = new
            {
                atMobiles = atMobiles ?? Array.Empty<string>(),
                isAtAll = isAtAll
            }
        };

        await SendMessageAsync(message);
    }

    /// <summary>
    /// 發送Markdown消息
    /// </summary>
    /// <param name="title">標題</param>
    /// <param name="text">Markdown格式內容</param>
    /// <param name="atMobiles">需要@的手機號數組</param>
    /// <param name="isAtAll">是否@所有人</param>
    public async Task SendMarkdownMessageAsync(string title, string text, string[] atMobiles = null, bool isAtAll = false)
    {
        var message = new
        {
            msgtype = "markdown",
            markdown = new
            {
                title = title,
                text = text
            },
            at = new
            {
                atMobiles = atMobiles ?? Array.Empty<string>(),
                isAtAll = isAtAll
            }
        };

        await SendMessageAsync(message);
    }

    /// <summary>
    /// 發送鏈接消息
    /// </summary>
    /// <param name="title">標題</param>
    /// <param name="text">內容</param>
    /// <param name="messageUrl">跳轉鏈接</param>
    /// <param name="picUrl">圖片鏈接（可選）</param>
    public async Task SendLinkMessageAsync(string title, string text, string messageUrl, string picUrl = "")
    {
        var message = new
        {
            msgtype = "link",
            link = new
            {
                title = title,
                text = text,
                messageUrl = messageUrl,
                picUrl = picUrl
            }
        };

        await SendMessageAsync(message);
    }

    /// <summary>
    /// 發送 單按鈕 ActionCard?消息
    /// </summary>
    /// <param name="title">消息標題，顯示在消息頂部</param>
    /// <param name="text">消息內容，支持Markdown語法</param>
    /// <param name="singleTitle">單個按鈕的文本（不超過20字符）</param>
    /// <param name="singleUrl">按鈕跳轉鏈接（需HTTP/HTTPS）</param>
    /// <param name="atMobiles">需要@的群成員手機號數組</param>
    /// <param name="isAtAll">是否@所有人（慎用）</param>
    /// <returns></returns>
    public async Task SendActionCardAsync(string title, string text, string singleTitle, string singleUrl, string[] atMobiles = null, bool isAtAll = false)
    {
        var message = new
        {
            msgtype = "actionCard",
            actionCard = new
            {
                title = title,
                text = text,
                singleTitle = singleTitle,
                singleURL = singleUrl,
                btnOrientation = "0" // "0"垂直按鈕，"1"水平按鈕
            },
            at = new
            {
                atMobiles = atMobiles ?? Array.Empty<string>(),
                isAtAll = isAtAll
            }
        };
        await SendMessageAsync(message);
    }

    /// <summary>
    /// 發送 多按鈕 ActionCard消息
    /// </summary>
    /// <param name="title">消息標題</param>
    /// <param name="text">消息內容</param>
    /// <param name="buttons">按鈕列表（最多2個）</param>
    /// <param name="btnOrientation">按鈕排列方向：“0”(垂直，默認) 或 “1”(水平)</param>
    /// <param name="atMobiles">需要@的手機號數組</param>
    /// <param name="isAtAll">是否@所有人</param>
    /// <returns></returns>
    public async Task SendMultiActionCardAsync(string title, string text, List<DingTalkButton> buttons, string btnOrientation = "0", // "0"垂直，"1"水平
    string[] atMobiles = null, bool isAtAll = false)
    {
        var message = new
        {
            msgtype = "actionCard",
            actionCard = new
            {
                title = title,
                text = text,
                btns = buttons.Select(b => new { title = b.Title, actionURL = b.Url }).ToArray(),
                btnOrientation = btnOrientation
            },
            at = new
            {
                atMobiles = atMobiles ?? Array.Empty<string>(),
                isAtAll = isAtAll
            }
        };
        await SendMessageAsync(message);
    }

    /// <summary>
    /// 發送FeedCard消息
    /// </summary>
    /// <param name="links">鏈接列表（最多5條）</param>
    /// <returns></returns>
    public async Task SendFeedCardAsync(List<FeedCardLink> links)
    {
        var message = new
        {
            msgtype = "feedCard",
            feedCard = new
            {
                links = links.Select(link => new
                {
                    title = link.Title,
                    messageURL = link.MessageUrl,
                    picURL = link.PicUrl
                }).ToArray()
            }
        };
        await SendMessageAsync(message);
    }

    // FeedCard 鏈接定義類
    public class FeedCardLink
    {
        //鏈接標題（小于等于64字符）
        public string Title { get; set; }
        //跳轉鏈接（需HTTP/HTTPS）
        public string MessageUrl { get; set; }
        //圖片鏈接（可選，建議尺寸：520x275像素）
        public string PicUrl { get; set; }
    }

    // 按鈕定義類
    public class DingTalkButton
    {
        //按鈕文本（小于等于20字符）
        public string Title { get; set; }
        //跳轉鏈接（需HTTP/HTTPS）
        public string Url { get; set; }
    }

    private async Task SendMessageAsync(object message)
    {
        var json = Newtonsoft.Json.JsonConvert.SerializeObject(message);
        var content = new StringContent(json, Encoding.UTF8, "application/json");

        var response = await _httpClient.PostAsync(_webhookUrl, content);
        response.EnsureSuccessStatusCode();

        var responseContent = await response.Content.ReadAsStringAsync();
        Console.WriteLine($"釘釘機器人響應: {responseContent}");
    }
}

2）Program類型

釘釘機器人發送消息實現類，代碼如下：

using static DingTalkRobot;
using static System.Net.Mime.MediaTypeNames;

public class Program
{
    static async Task Main(string[] args)
    {
        // 實際Webhook URL
        var webhookUrl = "https://oapi.dingtalk.com/robot/send?access_token=ea8b2fe200c23a4ec8a9569c88ca9561d4f7ebe9bb10d1146ed07e49904c0627\r\n";
        var dingTalkRobot = new DingTalkRobot(webhookUrl);

        try
        {
            //關鍵字 = “報警：” 需在title、content參數加關鍵字
            //1、發送文本消息（消息長度不超過20kb）

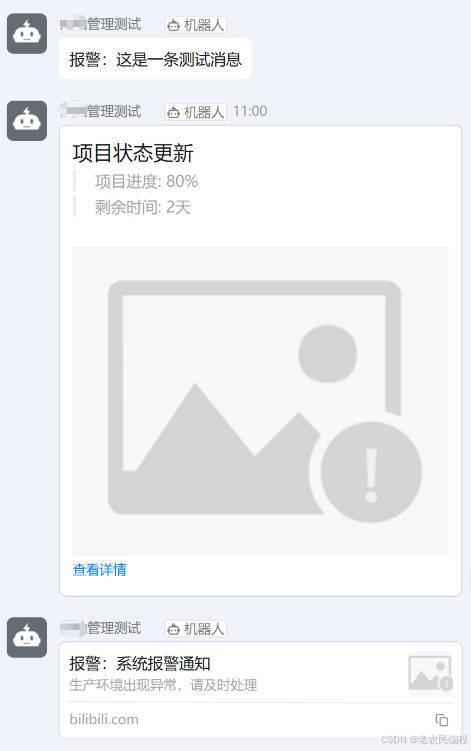

            await dingTalkRobot.SendTextMessageAsync("報警：這是一條測試消息",
                atMobiles: new[] { "13812345678" },
                isAtAll: false);

            //2、發送Markdown消息(1、不支持HTML和復雜表格 2、總長度不超過8192字節)
            await dingTalkRobot.SendMarkdownMessageAsync(
                "報警：項目更新通知",
                "### 項目狀態更新\n" +
                "> 項目進度: 80%\n\n" +
                "> 剩余時間: 2天\n\n" +
                "![screenshot](https://example.com/image.png)\n" +
                "###### [查看詳情](https://example.com)",
                atMobiles: new[] { "13812345678" });

            //3、發送鏈接消息（最后兩個 跳轉鏈接 圖片鏈接）
            await dingTalkRobot.SendLinkMessageAsync(
                "報警：系統報警通知",
                "生產環境出現異常，請及時處理",
                "https://www.bilibili.com/video/BV1ZU4y1q7sn/?share_source=copy_web&vd_source=ad0206b6bbe094bb6fa542017f2e474b",
                "https://www.bilibili.com/opus/366829175324803541?from=search&spm_id_from=333.337.0.0");

            //4、發送單按鈕 ActionCard消息

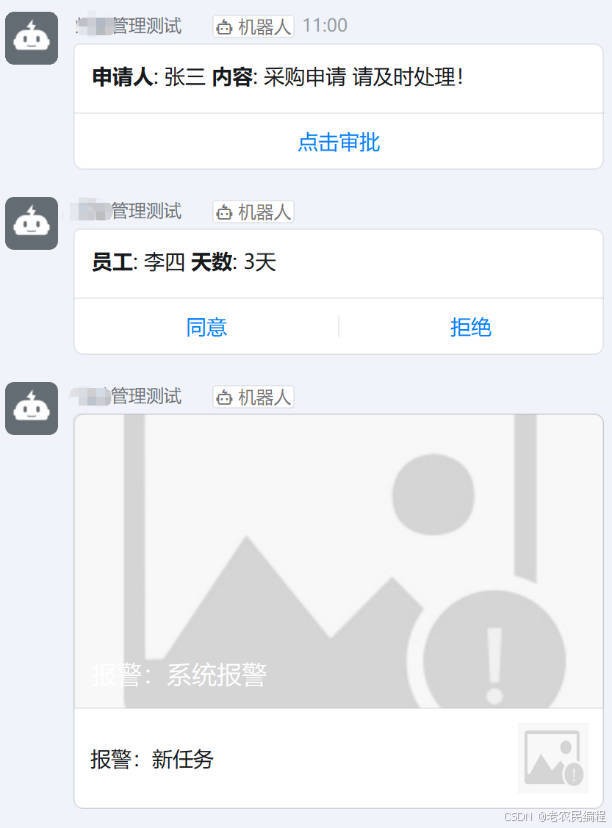

            await dingTalkRobot.SendActionCardAsync(
                title: "報警：任務審批",
                text: "**申請人**: 張三\n**內容**: 采購申請\n請及時處理！",
                singleTitle: "點擊審批",
                singleUrl: "https://example.com/approve?id=123");

            //5、發送多按鈕 ActionCard消息
            var buttons = new List<DingTalkButton>
            {
                new DingTalkButton { Title = "同意", Url = "https://example.com/agree" },
                new DingTalkButton { Title = "拒絕", Url = "https://example.com/reject" }
            };

            await dingTalkRobot.SendMultiActionCardAsync(
                title: "報警：請假審批",
                text: "**員工**: 李四\n**天數**: 3天",
                buttons: buttons,
                btnOrientation: "1" // 水平排列按鈕
            );

            //6、發送FeedCard消息
            var links = new List<FeedCardLink>
            {
                new FeedCardLink
                {
                    Title = "報警：系統報警",
                    MessageUrl = "https://example.com/alert1",
                    PicUrl = "https://example.com/alert.png"
                },
                new FeedCardLink
                {
                    Title = "報警：新任務",
                    MessageUrl = "https://example.com/task1",
                    PicUrl = "https://example.com/task.png"
                }
            };

            await dingTalkRobot.SendFeedCardAsync(links);
        }
        catch (Exception ex)
        {
            Console.WriteLine($"發送釘釘消息失敗: {ex.Message}");
        }
    }
}
