在Linux上檢查CPU和硬盤溫度的方法

更新時間：2025年02月28日 09:02:30 作者：愛寫代碼的小白.

為了更好地監測您的Linux系統的硬件健康狀況,如CPU與硬盤溫度、風扇轉速等關鍵指標,采用lm_sensors與hddtemp這兩款強大工具是明智之選,以下是關于這些工具的詳盡指南,包括它們的功能介紹、安裝步驟以及如何配置,需要的朋友可以參考下

引言

為了更好地監測您的Linux系統的硬件健康狀況，如CPU與硬盤溫度、風扇轉速等關鍵指標，采用lm_sensors與hddtemp這兩款強大工具是明智之選。以下是關于這些工具的詳盡指南，包括它們的功能介紹、安裝步驟以及如何配置lm_sensors，旨在為您提供一個清晰且優化的操作流程。

lm_sensors：全方位硬件監控解決方案

功能概述：lm_sensors是一個開源項目，專為Linux系統設計，用于實時監測系統內部的溫度、電壓、風扇轉速等重要硬件狀態。它通過與各種傳感器芯片通信，提供精確的硬件健康數據，是維護系統穩定性的得力助手。

特色工具：

s-tui：作為lm_sensors的一個現代化界面補充，s-tui（Stress Terminal UI）是一個基于終端的實時監控界面，能直觀展示CPU負載、溫度及頻率變化，同時控制風扇速度，非常適合追求高效監控體驗的用戶。

基本命令：

sensors：顯示當前所有傳感器讀數。
sensors -s：依據配置文件設定傳感器閾值。
sensors –bus-list：為配置文件生成適配的總線聲明。
sudo sensors-detect：自動檢測并配置系統支持的傳感器。

hddtemp：硬盤溫度的專業守護者

功能介紹：hddtemp專注于硬盤溫度監控，通過讀取兼容SMART（自我監控、分析和報告技術）的硬盤驅動器信息，提供精確的硬盤溫度數據。它不僅適用于IDE/SATA硬盤，還支持部分SCSI硬盤，是確保硬盤長期可靠性的理想工具。

安裝指南（針對主流Linux發行版）：

Fedora:

sudo dnf install lm_sensors hddtemp

Debian/Ubuntu:

sudo apt-get install lm-sensors hddtemp

或使用較新的apt命令：

sudo apt install lm-sensors hddtemp

Arch Linux及其衍生版:

sudo pacman -S lm_sensors hddtemp

RHEL/CentOS:

sudo yum install lm_sensors hddtemp

注意：CentOS 8及以上版本或RHEL 8+推薦使用dnf命令代替yum。

openSUSE Leap:

sudo zypper install lm_sensors hddtemp

配置lm_sensors：

安裝完畢后，執行以下命令以自動檢測并配置lm_sensors：

sudo sensors-detect
$ sudo sensors-detect

# sensors-detect revision $Revision$
# System: LENOVO 80NV [Lenovo ideapad Y700-15ISK] (laptop)
# Board: LENOVO Allsparks 5A
# Kernel: 4.19.6-1-MANJARO x86_64
# Processor: Intel(R) Core(TM) i7-6700HQ CPU @ 2.60GHz (6/94/3)

This program will help you determine which kernel modules you need
to load to use lm_sensors most effectively. It is generally safe
and recommended to accept the default answers to all questions,
unless you know what you're doing.

Some south bridges, CPUs or memory controllers contain embedded sensors.
Do you want to scan for them? This is totally safe. (YES/no): YES
Module cpuid loaded successfully.
Silicon Integrated Systems SIS5595...                       No
VIA VT82C686 Integrated Sensors...                          No
VIA VT8231 Integrated Sensors...                            No
AMD K8 thermal sensors...                                   No
AMD Family 10h thermal sensors...                           No
AMD Family 11h thermal sensors...                           No
AMD Family 12h and 14h thermal sensors...                   No
AMD Family 15h thermal sensors...                           No
AMD Family 16h thermal sensors...                           No
AMD Family 17h thermal sensors...                           No
AMD Family 15h power sensors...                             No
AMD Family 16h power sensors...                             No
Intel digital thermal sensor...                             Success!
    (driver `coretemp')
Intel AMB FB-DIMM thermal sensor...                         No
Intel 5500/5520/X58 thermal sensor...                       No
VIA C7 thermal sensor...                                    No
VIA Nano thermal sensor...                                  No

Some Super I/O chips contain embedded sensors. We have to write to
standard I/O ports to probe them. This is usually safe.
Do you want to scan for Super I/O sensors? (YES/no): YES
Probing for Super-I/O at 0x2e/0x2f
Trying family `National Semiconductor/ITE'...               No
Trying family `SMSC'...                                     No
Trying family `VIA/Winbond/Nuvoton/Fintek'...               No
Trying family `ITE'...                                      No
Probing for Super-I/O at 0x4e/0x4f
Trying family `National Semiconductor/ITE'...               Yes
Found unknown chip with ID 0x8371

Some hardware monitoring chips are accessible through the ISA I/O ports.
We have to write to arbitrary I/O ports to probe them. This is usually
safe though. Yes, you do have ISA I/O ports even if you do not have any
ISA slots! Do you want to scan the ISA I/O ports? (YES/no): YES
Probing for `National Semiconductor LM78' at 0x290...       No
Probing for `National Semiconductor LM79' at 0x290...       No
Probing for `Winbond W83781D' at 0x290...                   No
Probing for `Winbond W83782D' at 0x290...                   No

Lastly, we can probe the I2C/SMBus adapters for connected hardware
monitoring devices. This is the most risky part, and while it works
reasonably well on most systems, it has been reported to cause trouble
on some systems.
Do you want to probe the I2C/SMBus adapters now? (YES/no): YES
Using driver `i2c-i801' for device 0000:00:1f.4: Sunrise Point-H (PCH)
Module i2c-dev loaded successfully.

Next adapter: SMBus I801 adapter at 6040 (i2c-0)
Do you want to scan it? (YES/no/selectively): YES

Next adapter: i915 gmbus dpc (i2c-1)
Do you want to scan it? (yes/NO/selectively): YES

Next adapter: i915 gmbus dpb (i2c-2)
Do you want to scan it? (yes/NO/selectively): yes

Next adapter: i915 gmbus dpd (i2c-3)
Do you want to scan it? (yes/NO/selectively): yes

Next adapter: DPDDC-A (i2c-4)
Do you want to scan it? (yes/NO/selectively): yes

Next adapter: nvkm-0000:01:00.0-bus-0000 (i2c-5)
Do you want to scan it? (yes/NO/selectively): yes

Next adapter: nvkm-0000:01:00.0-bus-0001 (i2c-6)
Do you want to scan it? (yes/NO/selectively): yes

Next adapter: nvkm-0000:01:00.0-bus-0002 (i2c-7)
Do you want to scan it? (yes/NO/selectively): yes

Next adapter: nvkm-0000:01:00.0-bus-0005 (i2c-8)
Do you want to scan it? (yes/NO/selectively): yes

Next adapter: nvkm-0000:01:00.0-bus-0006 (i2c-9)
Do you want to scan it? (yes/NO/selectively): yes

Next adapter: nvkm-0000:01:00.0-bus-0007 (i2c-10)
Do you want to scan it? (yes/NO/selectively): yes

Next adapter: nvkm-0000:01:00.0-bus-0008 (i2c-11)
Do you want to scan it? (yes/NO/selectively): yes

Next adapter: nvkm-0000:01:00.0-bus-0009 (i2c-12)
Do you want to scan it? (yes/NO/selectively): yes

Next adapter: nvkm-0000:01:00.0-aux-000a (i2c-13)
Do you want to scan it? (yes/NO/selectively): yes
Client found at address 0x18
Probing for `Analog Devices ADM1021'...                     No
Probing for `Analog Devices ADM1021A/ADM1023'...            No
Probing for `Maxim MAX1617'...                              No
Probing for `Maxim MAX1617A'...                             No
Probing for `Maxim MAX1668'...                              No
Probing for `Maxim MAX1805'...                              No
Probing for `Maxim MAX1989'...                              No
.
.
Probing for `Fintek F75121R/F75122R/RG (VID+GPIO)'...       No
Probing for `Fintek F75111R/RG/N (GPIO)'...                 No
Probing for `ITE IT8201R/IT8203R/IT8206R/IT8266R'...        No
Client found at address 0x77
Probing for `Asus Mozart-2'...                              No


Now follows a summary of the probes I have just done.
Just press ENTER to continue:

Driver `coretemp':
  * Chip `Intel digital thermal sensor' (confidence: 9)

Do you want to generate /etc/conf.d/lm_sensors? (YES/no): YES
Created symlink /etc/systemd/system/multi-user.target.wants/lm_sensors.service → /usr/lib/systemd/system/lm_sensors.service.
Unloading i2c-dev... OK
Unloading cpuid... OK

執行以下命令查看CPU溫度。

$ sensors

nouveau-pci-0100
Adapter: PCI adapter
GPU core:     +0.60 V  (min =  +0.60 V, max =  +1.20 V)
temp1:         -0.0°C  (high = +95.0°C, hyst =  +3.0°C)
                       (crit = +105.0°C, hyst =  +5.0°C)
                       (emerg = +135.0°C, hyst =  +5.0°C)

coretemp-isa-0000
Adapter: ISA adapter
Package id 0:  +35.0°C  (high = +100.0°C, crit = +100.0°C)
Core 0:        +33.0°C  (high = +100.0°C, crit = +100.0°C)
Core 1:        +35.0°C  (high = +100.0°C, crit = +100.0°C)
Core 2:        +33.0°C  (high = +100.0°C, crit = +100.0°C)
Core 3:        +32.0°C  (high = +100.0°C, crit = +100.0°C)
Print the temperatures in degrees Fahrenheit instead of Celsius.

$ sensors -f

nouveau-pci-0100
Adapter: PCI adapter
GPU core:     +0.60 V  (min =  +0.60 V, max =  +1.20 V)
temp1:        +32.0°F  (high = +203.0°F, hyst = +37.4°F)
                       (crit = +221.0°F, hyst = +41.0°F)
                       (emerg = +275.0°F, hyst = +41.0°F)

coretemp-isa-0000
Adapter: ISA adapter
Package id 0:  +96.8°F  (high = +212.0°F, crit = +212.0°F)
Core 0:        +95.0°F  (high = +212.0°F, crit = +212.0°F)
Core 1:        +95.0°F  (high = +212.0°F, crit = +212.0°F)
Core 2:        +91.4°F  (high = +212.0°F, crit = +212.0°F)
Core 3:        +91.4°F  (high = +212.0°F, crit = +212.0°F)

顯示硬盤溫度。

$ sudo hddtemp /dev/sda2 /dev/sda2：WDC WD10SPCX-24HWST1：32°C

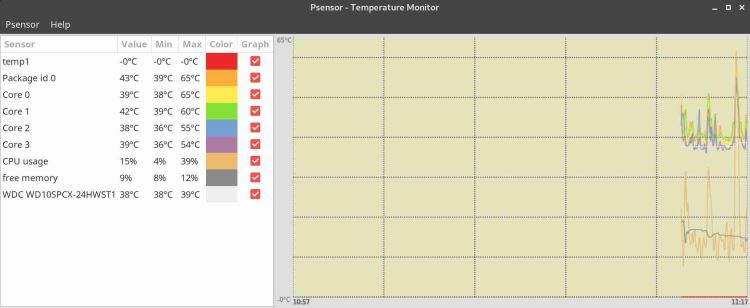

在Linux中安裝Psensor

psensor是 Linux 下的圖形化硬件溫度監視器。該應用程序設計簡單且易于使用。 CPU和內存消耗并不大。

它可以監控：

主板和 CPU 傳感器的溫度（使用 lm 傳感器）。
NVidia GPU 的溫度（使用 XNVCtrl）。
ATI/AMD GPU 的溫度（在官方發行版存儲庫中未啟用，請參閱啟用其支持的說明）。
硬盤驅動器的溫度（使用 hddtemp 或 libatasmart）。
風扇的轉速（使用流明傳感器）。
CPU 使用率（從 0.6.2.10 開始并使用 Gtop2）。

到此這篇關于在Linux上檢查CPU和硬盤溫度的方法的文章就介紹到這了,更多相關Linux檢查CPU和硬盤溫度內容請搜索腳本之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持腳本之家！
