k8s高可用集群安裝教程

 更新時間：2025年03月28日 09:38:10   作者：qq_42799562
本文給大家介紹k8s高可用集群安裝教程,本文通過圖文示例相結合給大家介紹的非常詳細,感興趣的朋友一起看看吧

一、安裝負載均衡器

k8s負載均衡器 官方指南

1、準備三臺機器

節點名稱IP
master-1192.168.1.11
master-2192.168.1.12
master-3192.168.1.13

2、在這三臺機器分別安裝haproxy和keepalived作為負載均衡器

# 安裝haproxy
sudo dnf install haproxy -y
# 安裝Keepalived
sudo yum install epel-release -y
sudo yum install keepalived -y
# 查看安裝成功信息
sudo dnf info haproxy
sudo dnf info keepalived

出現類似信息，說明安裝成功

3、k8s負載均衡器配置文件

官方指南 按需替換成自己的機器ip和端口即可，192.168.1.9 是為keepalived提供的虛擬ip，只要該ip沒有被占用，均可，從節點將MASTER改為BACKUP,priority 101改成100，讓MASTER占比大

3.1 /etc/keepalived/keepalived.conf

! /etc/keepalived/keepalived.conf
! Configuration File for keepalived
global_defs {
    router_id LVS_DEVEL
}
vrrp_script check_apiserver {
  script "/etc/keepalived/check_apiserver.sh"
  interval 3
  weight -2
  fall 10
  rise 2
}
vrrp_instance VI_1 {
    state MASTER
    interface ens33
    virtual_router_id 51
    priority 101
    authentication {
        auth_type PASS
        auth_pass 42
    }
    virtual_ipaddress {
        192.168.1.9
    }
    track_script {
        check_apiserver
    }
}

3.2 /etc/keepalived/check_apiserver.sh

#!/bin/sh
errorExit() {
    echo "*** $*" 1>&2
    exit 1
}
curl -sfk --max-time 2 https://localhost:6553/healthz -o /dev/null || errorExit "Error GET https://localhost:6553/healthz"

3.3 授予腳本權限

chmod +x /etc/keepalived/check_apiserver.sh

3.4 /etc/haproxy/haproxy.cfg

# /etc/haproxy/haproxy.cfg
#---------------------------------------------------------------------
# Global settings
#---------------------------------------------------------------------
global
    log stdout format raw local0
    daemon
#---------------------------------------------------------------------
# common defaults that all the 'listen' and 'backend' sections will
# use if not designated in their block
#---------------------------------------------------------------------
defaults
    mode                    http
    log                     global
    option                  httplog
    option                  dontlognull
    option http-server-close
    option forwardfor       except 127.0.0.0/8
    option                  redispatch
    retries                 1
    timeout http-request    10s
    timeout queue           20s
    timeout connect         5s
    timeout client          35s
    timeout server          35s
    timeout http-keep-alive 10s
    timeout check           10s
#---------------------------------------------------------------------
# apiserver frontend which proxys to the control plane nodes
#---------------------------------------------------------------------
frontend apiserver
    bind *:6553
    mode tcp
    option tcplog
    default_backend apiserverbackend
#---------------------------------------------------------------------
# round robin balancing for apiserver
#---------------------------------------------------------------------
backend apiserverbackend
    option httpchk
    http-check connect ssl
    http-check send meth GET uri /healthz
    http-check expect status 200
    mode tcp
    balance     roundrobin
    server master-1 192.168.1.11:6443 check verify none
    server master-2 192.168.1.12:6443 check verify none
    server master-3 192.168.1.13:6443 check verify none
    # [...]

3.5 驗證haproxy.cfg是否有語法錯誤，并重啟

haproxy -c -f /etc/haproxy/haproxy.cfg
systemctl restart haproxy
systemctl restart keepalived

二、安裝k8s集群

基礎配置，請參照我的上一篇單主節點執行

1、堆疊（Stacked）etcd 拓?fù)?/h3>

直接執行初始化即可
優點：操作簡單，節點數要求少
缺點：堆疊集群存在耦合失敗的風險。如果一個節點發生故障，則 etcd 成員和控制平面實例都將丟失， 并且冗余會受到影響。

kubeadm init --image-repository registry.cn-hangzhou.aliyuncs.com/google_containers \
  --apiserver-advertise-address=192.168.1.11 \
  --control-plane-endpoint 192.168.1.9:6553 \
  --pod-network-cidr=10.244.0.0/16 \
  --service-cidr 10.244.0.0/12 \
  --kubernetes-version=v1.23.8 \
  --upload-certs \
  --v=6

2、外部 etcd 拓?fù)?/h3>

優點：拓?fù)浣Y(jié)構解耦了控制平面和 etcd 成員。因此它提供了一種 HA 設置， 其中失去控制平面實例或者 etcd 成員的影響較小，并且不會像堆疊的 HA 拓?fù)淠菢佑绊懠喝哂?br />缺點：拓?fù)湫枰獌杀队诙询B HA 拓?fù)涞闹鳈C(jī)數量。 具有此拓?fù)涞?HA 集群至少需要三個用于控制平面節點的主機和三個用于 etcd 節點的主機 官方指南

2.1 準備三臺機器

節點名稱IP
etcd-1192.168.1.3
etcd-2192.168.1.4
etcd-3192.168.1.5

2.2 每個etcd節點創建配置文件/etc/systemd/system/kubelet.service.d/20-etcd-service-manager.conf

[Service]
ExecStart=
# 將下面的 "systemd" 替換為你的容器運行時所使用的 cgroup 驅動。
# kubelet 的默認值為 "cgroupfs"。
# 如果需要的話，將 "--container-runtime-endpoint " 的值替換為一個不同的容器運行時。
ExecStart=/usr/bin/kubelet --address=127.0.0.1 --pod-manifest-path=/etc/kubernetes/manifests --cgroup-driver=systemd
Restart=always

2.3 啟動kubelet

systemctl daemon-reload
systemctl restart kubelet
# 查看kubelet狀態，正常應變?yōu)閞unning
systemctl status kubelet

2.4 使用以下腳本文件啟動，注意替換自己的IP和主機名

# 使用你的主機 IP 替換 HOST0、HOST1 和 HOST2 的 IP 地址，在etcd-1 上執行以下命令：
export HOST0=192.168.1.3
export HOST1=192.168.1.4
export HOST2=192.168.1.5
# 使用你的主機名更新 NAME0、NAME1 和 NAME2
export NAME0="etcd-1"
export NAME1="etcd-2"
export NAME2="etcd-3"
# 創建臨時目錄來存儲將被分發到其它主機上的文件
mkdir -p /tmp/${HOST0}/ /tmp/${HOST1}/ /tmp/${HOST2}/
HOSTS=(${HOST0} ${HOST1} ${HOST2})
NAMES=(${NAME0} ${NAME1} ${NAME2})
for i in "${!HOSTS[@]}"; do
HOST=${HOSTS[$i]}
NAME=${NAMES[$i]}
cat << EOF > /tmp/${HOST}/kubeadmcfg.yaml
---
apiVersion: "kubeadm.k8s.io/v1beta3"
kind: InitConfiguration
nodeRegistration:
    name: ${NAME}
localAPIEndpoint:
    advertiseAddress: ${HOST}
---
apiVersion: "kubeadm.k8s.io/v1beta3"
kind: ClusterConfiguration
etcd:
    local:
        serverCertSANs:
        - "${HOST}"
        peerCertSANs:
        - "${HOST}"
        extraArgs:
            initial-cluster: ${NAMES[0]}=https://${HOSTS[0]}:2380,${NAMES[1]}=https://${HOSTS[1]}:2380,${NAMES[2]}=https://${HOSTS[2]}:2380
            initial-cluster-state: new
            name: ${NAME}
            listen-peer-urls: https://${HOST}:2380
            listen-client-urls: https://${HOST}:2379
            advertise-client-urls: https://${HOST}:2379
            initial-advertise-peer-urls: https://${HOST}:2380
EOF
done

2.5 在任意etcd節點生成證書

kubeadm init phase certs etcd-ca
#這一操作創建如下兩個文件：
#/etc/kubernetes/pki/etcd/ca.crt
#/etc/kubernetes/pki/etcd/ca.key

2.6 為每個成員創建證書

kubeadm init phase certs etcd-server --config=/tmp/${HOST2}/kubeadmcfg.yaml
kubeadm init phase certs etcd-peer --config=/tmp/${HOST2}/kubeadmcfg.yaml
kubeadm init phase certs etcd-healthcheck-client --config=/tmp/${HOST2}/kubeadmcfg.yaml
kubeadm init phase certs apiserver-etcd-client --config=/tmp/${HOST2}/kubeadmcfg.yaml
cp -R /etc/kubernetes/pki /tmp/${HOST2}/
# 清理不可重復使用的證書
find /etc/kubernetes/pki -not -name ca.crt -not -name ca.key -type f -delete
kubeadm init phase certs etcd-server --config=/tmp/${HOST1}/kubeadmcfg.yaml
kubeadm init phase certs etcd-peer --config=/tmp/${HOST1}/kubeadmcfg.yaml
kubeadm init phase certs etcd-healthcheck-client --config=/tmp/${HOST1}/kubeadmcfg.yaml
kubeadm init phase certs apiserver-etcd-client --config=/tmp/${HOST1}/kubeadmcfg.yaml
cp -R /etc/kubernetes/pki /tmp/${HOST1}/
find /etc/kubernetes/pki -not -name ca.crt -not -name ca.key -type f -delete
kubeadm init phase certs etcd-server --config=/tmp/${HOST0}/kubeadmcfg.yaml
kubeadm init phase certs etcd-peer --config=/tmp/${HOST0}/kubeadmcfg.yaml
kubeadm init phase certs etcd-healthcheck-client --config=/tmp/${HOST0}/kubeadmcfg.yaml
kubeadm init phase certs apiserver-etcd-client --config=/tmp/${HOST0}/kubeadmcfg.yaml
# 不需要移動 certs 因?yàn)樗鼈兪墙o HOST0 使用的
# 清理不應從此主機復制的證書
find /tmp/${HOST2} -name ca.key -type f -delete
find /tmp/${HOST1} -name ca.key -type f -delete

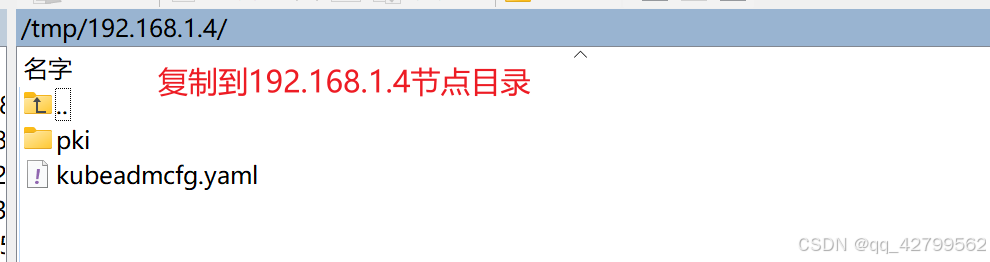

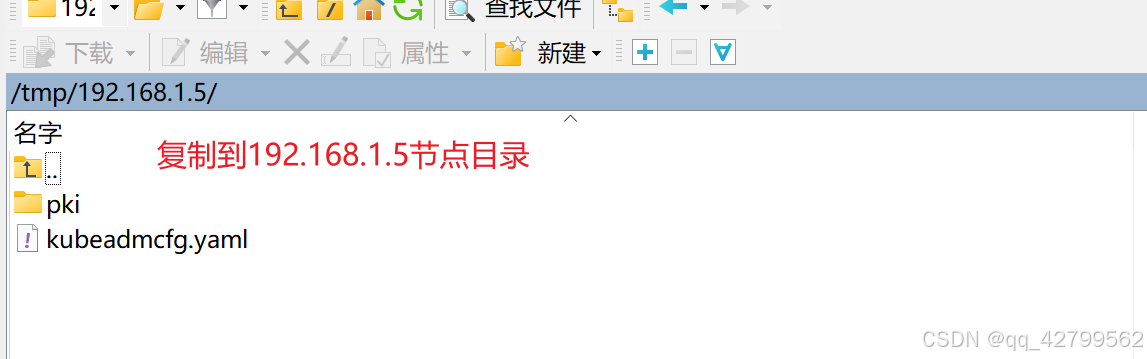

2.7 證書已生成，現在必須將它們移動到對應的主機。復制tmp下各自節點證書目錄pki至/etc/kubernetes/

2.8 在對應的etcd節點分別執行，按需取用和替換自己的etcd節點IP

# 鏡像處理
docker pull registry.cn-hangzhou.aliyuncs.com/google_containers/pause:3.6
docker tag registry.cn-hangzhou.aliyuncs.com/google_containers/pause:3.6 k8s.gcr.io/pause:3.6
docker pull registry.cn-hangzhou.aliyuncs.com/google_containers/etcd:3.5.1-0
docker tag registry.cn-hangzhou.aliyuncs.com/google_containers/etcd:3.5.1-0 k8s.gcr.io/etcd:3.5.1-0
sudo systemctl daemon-reload
sudo systemctl restart kubelet
kubeadm init phase etcd local --config=/tmp/192.168.1.3/kubeadmcfg.yaml
#kubeadm init phase etcd local --config=/tmp/192.168.1.4/kubeadmcfg.yaml
#kubeadm init phase etcd local --config=/tmp/192.168.1.5/kubeadmcfg.yaml

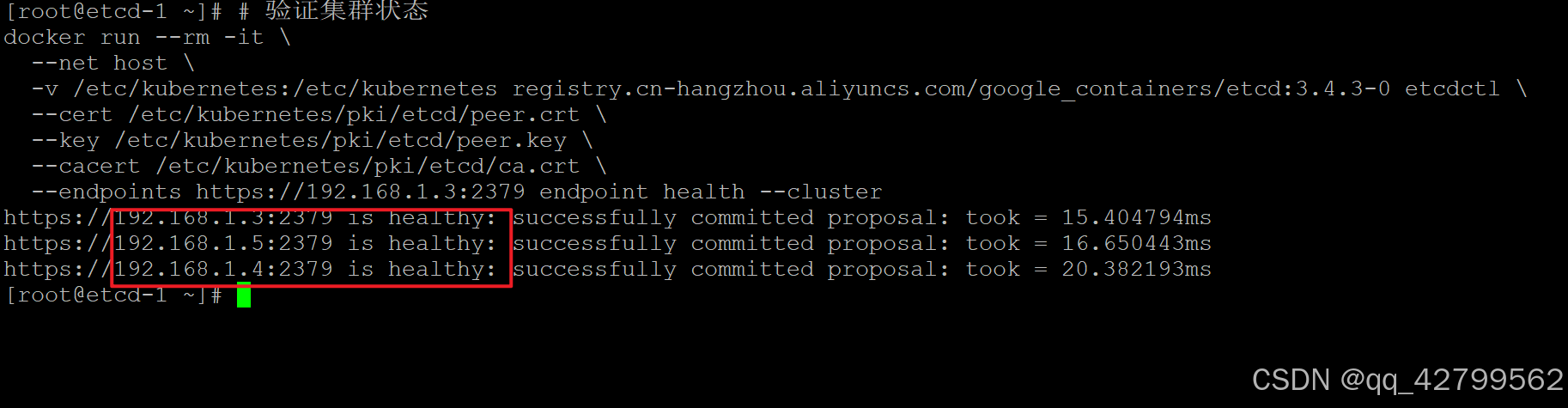

2.9 驗證etcd集群

# 驗證集群狀態
docker run --rm -it \
  --net host \
  -v /etc/kubernetes:/etc/kubernetes registry.cn-hangzhou.aliyuncs.com/google_containers/etcd:3.4.3-0 etcdctl \
  --cert /etc/kubernetes/pki/etcd/peer.crt \
  --key /etc/kubernetes/pki/etcd/peer.key \
  --cacert /etc/kubernetes/pki/etcd/ca.crt \
  --endpoints https://192.168.1.3:2379 endpoint health --cluster

3、 配置完etcd集群，就在第一個節點配置k8s集群?jiǎn)?dòng)文件 config kubeadm-config.yaml

apiVersion: kubeadm.k8s.io/v1beta3
kind: InitConfiguration
imageRepository: "registry.cn-hangzhou.aliyuncs.com/google_containers"
localAPIEndpoint:
  advertiseAddress: 192.168.1.11
uploadCerts: true
---
apiVersion: kubeadm.k8s.io/v1beta3
kind: ClusterConfiguration
imageRepository: "registry.cn-hangzhou.aliyuncs.com/google_containers"
kubernetesVersion: v1.23.8
controlPlaneEndpoint: "192.168.1.9:6553"
networking:
  podSubnet: "10.244.0.0/16"
  serviceSubnet: "10.244.0.0/12"
etcd:
  external:
    endpoints:
      - https://192.168.1.3:2379
      - https://192.168.1.4:2379
      - https://192.168.1.5:2379
    caFile: /etc/kubernetes/pki/etcd/ca.crt
    certFile: /etc/kubernetes/pki/apiserver-etcd-client.crt
    keyFile: /etc/kubernetes/pki/apiserver-etcd-client.key

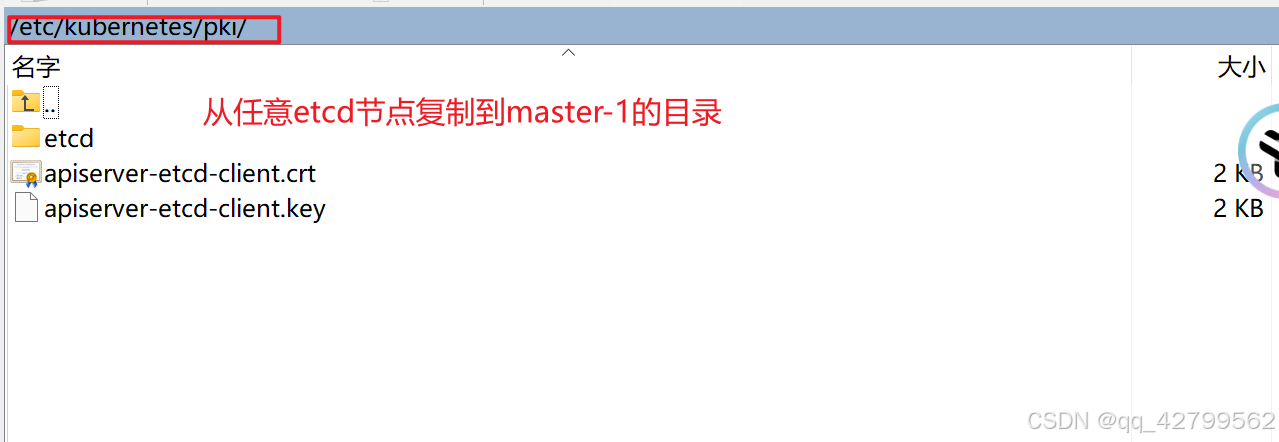

4、從任意etcd節點，復制/etc/kubernetes/pki目錄文件到初始化集群的k8s節點

kubeadm init --config kubeadm-config.yaml --upload-certs --v=6

# 主節點加入
kubeadm join 192.168.1.9:6553 --token a26srm.c7sssutz83mz94lq \
        --discovery-token-ca-cert-hash sha256:560139f5ea4b8d3a279de53d9d5d503d41c29394c3ba46a4f312f361708b8b71 \
        --control-plane --certificate-key b6e4df72059c9893d2be4d0e5b7fa2e7c466e0400fe39bd244d0fbf7f3e9c04c
# 從節點加入
kubeadm join 192.168.1.9:6553 --token a26srm.c7sssutz83mz94lq \
        --discovery-token-ca-cert-hash sha256:560139f5ea4b8d3a279de53d9d5d503d41c29394c3ba46a4f312f361708b8b71

安裝flannel網絡插件

apiVersion: v1
kind: Namespace
metadata:
  labels:
    k8s-app: flannel
    pod-security.kubernetes.io/enforce: privileged
  name: kube-flannel
---
apiVersion: v1
kind: ServiceAccount
metadata:
  labels:
    k8s-app: flannel
  name: flannel
  namespace: kube-flannel
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  labels:
    k8s-app: flannel
  name: flannel
rules:
- apiGroups:
  - ""
  resources:
  - pods
  verbs:
  - get
- apiGroups:
  - ""
  resources:
  - nodes
  verbs:
  - get
  - list
  - watch
- apiGroups:
  - ""
  resources:
  - nodes/status
  verbs:
  - patch
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  labels:
    k8s-app: flannel
  name: flannel
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: flannel
subjects:
- kind: ServiceAccount
  name: flannel
  namespace: kube-flannel
---
apiVersion: v1
data:
  cni-conf.json: |
    {
      "name": "cbr0",
      "cniVersion": "0.3.1",
      "plugins": [
        {
          "type": "flannel",
          "delegate": {
            "hairpinMode": true,
            "isDefaultGateway": true
          }
        },
        {
          "type": "portmap",
          "capabilities": {
            "portMappings": true
          }
        }
      ]
    }
  net-conf.json: |
    {
      "Network": "10.244.0.0/16",
      "EnableNFTables": false,
      "Backend": {
        "Type": "vxlan"
      }
    }
kind: ConfigMap
metadata:
  labels:
    app: flannel
    k8s-app: flannel
    tier: node
  name: kube-flannel-cfg
  namespace: kube-flannel
---
apiVersion: apps/v1
kind: DaemonSet
metadata:
  labels:
    app: flannel
    k8s-app: flannel
    tier: node
  name: kube-flannel-ds
  namespace: kube-flannel
spec:
  selector:
    matchLabels:
      app: flannel
      k8s-app: flannel
  template:
    metadata:
      labels:
        app: flannel
        k8s-app: flannel
        tier: node
    spec:
      affinity:
        nodeAffinity:
          requiredDuringSchedulingIgnoredDuringExecution:
            nodeSelectorTerms:
            - matchExpressions:
              - key: kubernetes.io/os
                operator: In
                values:
                - linux
      containers:
      - args:
        - --ip-masq
        - --kube-subnet-mgr
        command:
        - /opt/bin/flanneld
        env:
        - name: POD_NAME
          valueFrom:
            fieldRef:
              fieldPath: metadata.name
        - name: POD_NAMESPACE
          valueFrom:
            fieldRef:
              fieldPath: metadata.namespace
        - name: EVENT_QUEUE_DEPTH
          value: "5000"
        image: registry.cn-hangzhou.aliyuncs.com/1668334351/flannel:v0.26.4
        name: kube-flannel
        resources:
          requests:
            cpu: 100m
            memory: 50Mi
        securityContext:
          capabilities:
            add:
            - NET_ADMIN
            - NET_RAW
          privileged: false
        volumeMounts:
        - mountPath: /run/flannel
          name: run
        - mountPath: /etc/kube-flannel/
          name: flannel-cfg
        - mountPath: /run/xtables.lock
          name: xtables-lock
      hostNetwork: true
      initContainers:
      - args:
        - -f
        - /flannel
        - /opt/cni/bin/flannel
        command:
        - cp
        image: registry.cn-hangzhou.aliyuncs.com/1668334351/flannel-cni-plugin:v1.6.2
        name: install-cni-plugin
        volumeMounts:
        - mountPath: /opt/cni/bin
          name: cni-plugin
      - args:
        - -f
        - /etc/kube-flannel/cni-conf.json
        - /etc/cni/net.d/10-flannel.conflist
        command:
        - cp
        image: registry.cn-hangzhou.aliyuncs.com/1668334351/flannel:v0.26.4
        name: install-cni
        volumeMounts:
        - mountPath: /etc/cni/net.d
          name: cni
        - mountPath: /etc/kube-flannel/
          name: flannel-cfg
      priorityClassName: system-node-critical
      serviceAccountName: flannel
      tolerations:
      - effect: NoSchedule
        operator: Exists
      volumes:
      - hostPath:
          path: /run/flannel
        name: run
      - hostPath:
          path: /opt/cni/bin
        name: cni-plugin
      - hostPath:
          path: /etc/cni/net.d
        name: cni
      - configMap:
          name: kube-flannel-cfg
        name: flannel-cfg
      - hostPath:
          path: /run/xtables.lock
          type: FileOrCreate
        name: xtables-lock
kubectl apply -f kube-flannel.yml

到此這篇關于k8s高可用集群安裝的文章就介紹到這了,更多相關k8s高可用集群安裝內容請搜索腳本之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持腳本之家！

相關文章

  • 使用sealos快速搭建K8s集群環境的過程

    使用sealos快速搭建K8s集群環境的過程

    這篇文章主要介紹了使用sealos快速搭建K8s集群環境,主要包括sealos安裝方法，虛擬機設置方法，本文給大家介紹的非常詳細，對大家的學習或工作具有一定的參考借鑒價值，需要的朋友可以參考下
    2022-09-09
  • 一文詳解如何高效查看k8s日志

    一文詳解如何高效查看k8s日志

    K8S是kubernetes的縮寫,是為解決容器服務編排而生的,在運維K8S服務的過程中,經常會遇到各種報錯和診斷問題,那么我們一般怎么查看K8S組件的日志,這篇文章主要給大家介紹了關于如何高效查看k8s日志的相關資料,需要的朋友可以參考下
    2023-10-10
  • Kubernetes安全加固的一些實用建議

    Kubernetes安全加固的一些實用建議

    Kubernetes是一個自動化的容器編排平臺,它負責應用的部署、應用的彈性以及應用的管理,這些都是基于容器的,下面這篇文章主要給大家介紹了關于Kubernetes安全加固的一些實用建議,需要的朋友可以參考下
    2022-02-02
  • Kubernetes?權限管理認證鑒權詳解

    Kubernetes?權限管理認證鑒權詳解

    這篇文章主要為大家介紹了Kubernetes?權限管理認證鑒權詳解，有需要的朋友可以借鑒參考下，希望能夠有所幫助，祝大家多多進步，早日升職加薪
    2022-11-11
  • Kubernetes集群環境初始化

    Kubernetes集群環境初始化

    這篇文章介紹了Kubernetes集群環境初始化的方法，對大家的學習或者工作具有一定的參考學習價值，需要的朋友們下面隨著小編來一起學習學習吧
    2022-04-04
  • K8S?Operator部署及自定義詳解

    K8S?Operator部署及自定義詳解

    這篇文章主要為大家介紹了K8S?Operator部署及自定義詳解，有需要的朋友可以借鑒參考下，希望能夠有所幫助，祝大家多多進步，早日升職加薪
    2023-04-04
  • k8s?常見面試題集錦

    k8s?常見面試題集錦

    這篇文章主要為大家介紹了k8s?常見面試題集錦,有需要的朋友可以借鑒參考下,希望能夠有所幫助,祝大家多多進步,早日升職加薪
    2023-09-09
  • k8s編排之Deployment知識點詳解

    k8s編排之Deployment知識點詳解

    這篇文章主要為大家介紹了k8s編排之Deployment知識點詳解，有需要的朋友可以借鑒參考下，希望能夠有所幫助，祝大家多多進步，早日升職加薪
    2023-01-01
  • k8s中pod不停重啟問題定位原因與解決方法

    k8s中pod不停重啟問題定位原因與解決方法

    這篇文章主要給大家介紹了關于k8s中pod不停重啟問題定位原因與解決方法的相關資料,Kubernetes是一款高度可擴展、可靠的容器編排和管理系統,它簡化了容器的部署、管理和自動化操作,需要的朋友可以參考下
    2023-08-08
  • 虛擬化和云計算的區別分析

    虛擬化和云計算的區別分析

    這篇文章主要介紹了虛擬化和云計算的區別,深入淺出的列舉分析了虛擬化與云計算的幾點常見區別,需要的朋友可以參考下
    2016-10-10

最新評論
