docker安裝單機版kafka并使用的詳細步驟

更新時間：2025年06月11日 10:07:18 作者：小咖張

這篇文章主要為大家詳細介紹了docker安裝單機版kafka并使用的詳細步驟,文中的示例代碼講解詳細,感興趣的小伙伴可以跟隨小編一起學習一下

一、docker-compose.yml

version: '3'

services:
  zookeeper:
    image: confluentinc/cp-zookeeper:latest
    container_name: zookeeper
    environment:
      ZOOKEEPER_CLIENT_PORT: 2181
      ZOOKEEPER_TICK_TIME: 2000
    ports:
      - "2181:2181"
    volumes:
      - ./zookeeper-data:/var/lib/zookeeper/data
      - ./zookeeper-log:/var/lib/zookeeper/log

  kafka:
    image: confluentinc/cp-kafka:latest
    container_name: kafka
    depends_on:
      - zookeeper
    ports:
      - "9092:9092"
    environment:
      KAFKA_ZOOKEEPER_CONNECT: zookeeper:2181
      KAFKA_ADVERTISED_LISTENERS: PLAINTEXT://自己的ip:9092
      KAFKA_LISTENERS: PLAINTEXT://:9092
      KAFKA_OFFSETS_TOPIC_REPLICATION_FACTOR: 1
      KAFKA_TRANSACTION_STATE_LOG_MIN_ISR: 1
      KAFKA_TRANSACTION_STATE_LOG_REPLICATION_FACTOR: 1

      #新版使用CFG

      KAFKA_CFG_PROCESS_ROLES: broker
      KAFKA_CFG_CONTROLLER_LISTENER_NAMES: PLAINTEXT
      KAFKA_CFG_LISTENERS: PLAINTEXT://:9092
      KAFKA_CFG_ADVERTISED_LISTENERS: PLAINTEXT://自己的ip:9092
      KAFKA_CFG_INTER_BROKER_LISTENER_NAME: PLAINTEXT
      KAFKA_CFG_ZOOKEEPER_CONNECT: zookeeper:2181
      KAFKA_CFG_DEFAULT_REPLICATION_FACTOR: 1
      KAFKA_CFG_OFFSETS_TOPIC_REPLICATION_FACTOR: 1
      KAFKA_CFG_TRANSACTION_STATE_LOG_REPLICATION_FACTOR: 1
      KAFKA_CFG_NUM_PARTITIONS: 1
      KAFKA_CFG_AUTO_CREATE_TOPICS_ENABLE: "true"
    volumes:
      - ./kafka-data:/var/lib/kafka/data

#kafka可視化界面

kafka-manager:
     image: hlebalbau/kafka-manager:latest
     ports:
        - "9000:9000"
     environment:
        ZK_HOSTS: "zookeeper:2181"
        APPLICATION_SECRET: "random-secret-key"
        KAFKA_MANAGER_LOG_LEVEL: "INFO"
     depends_on:
        - zookeeper
        - kafka

二、創建權限

sudo chown -R 1000:1000 ./zookeeper-data
sudo chown -R 1000:1000 ./zookeeper-log
sudo chown -R 1000:1000 ./kafka-data

三、啟動容器

docker-compose up -d

四、測試功能

1. 進入Kafka容器：

docker exec -it kafka bash

2. 創建一個測試主題：

kafka-topics --create --topic order1-topic --bootstrap-server 上面配置的ip:9092 --replication-factor 1 --partitions 1

3: 啟動一個生產者：

kafka-console-producer --topic order1-topic --bootstrap-server 上面配置的ip:9092

4. 在另一個終端窗口，啟動一個消費者：

docker exec -it kafka kafka-console-consumer --topic order1-topic --bootstrap-server  上面配置的ip:9092 --from-beginning

5:測試成功

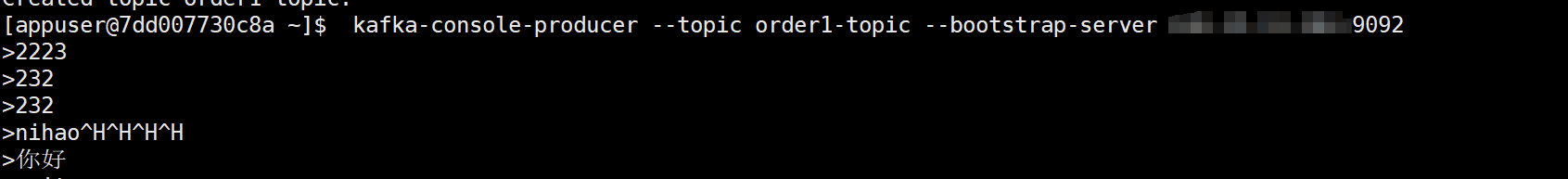

生產者：

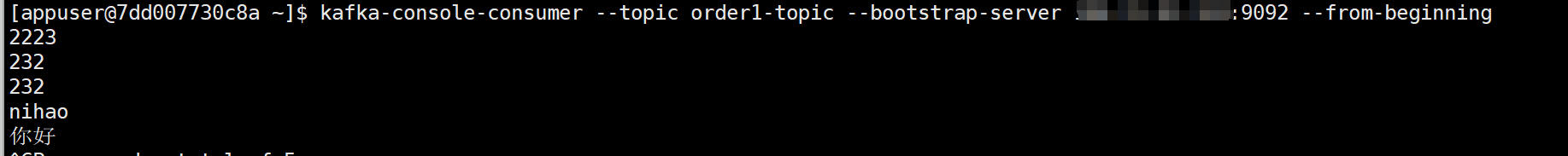

消費者：

五、kafka 可視化界面使用

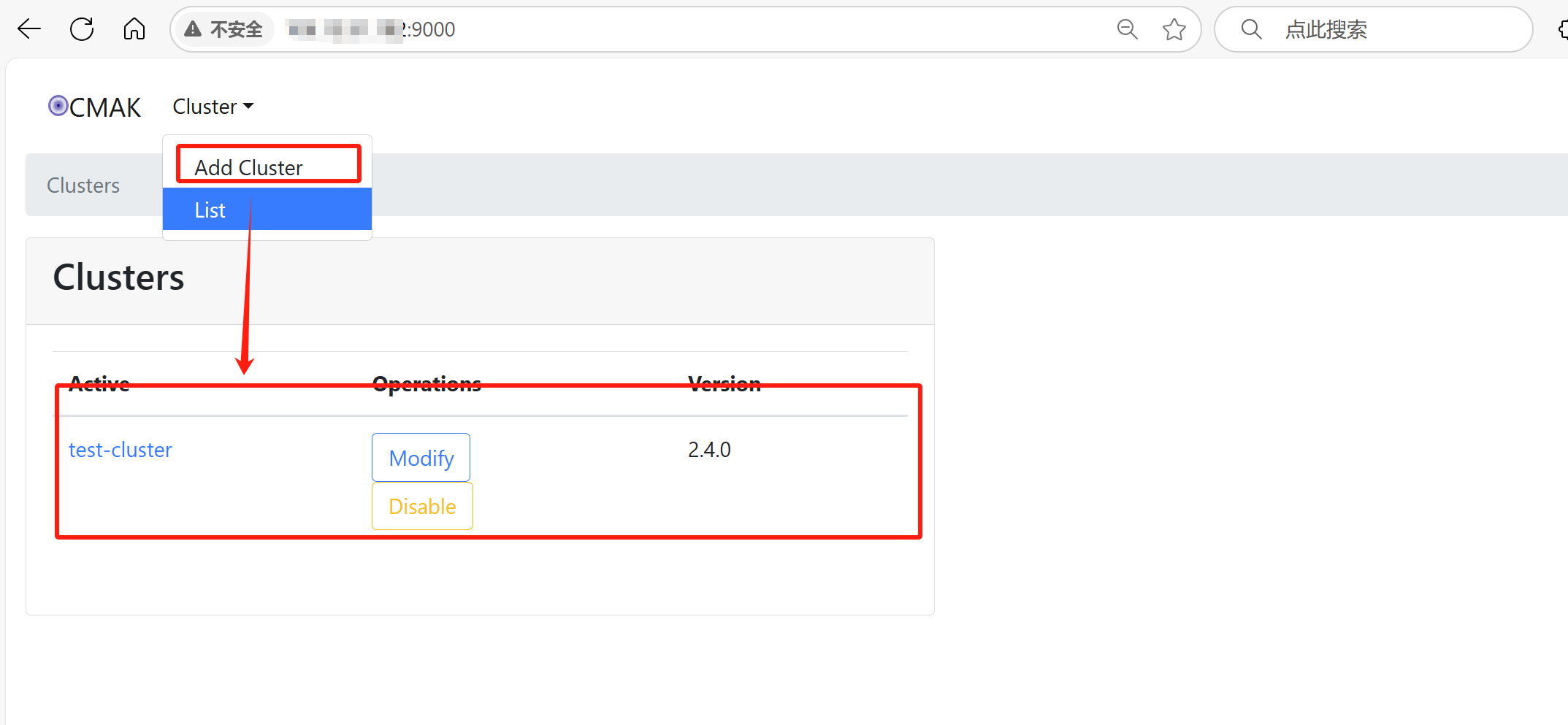

打開界面進行添加Cluster，添加成功如下圖所示：

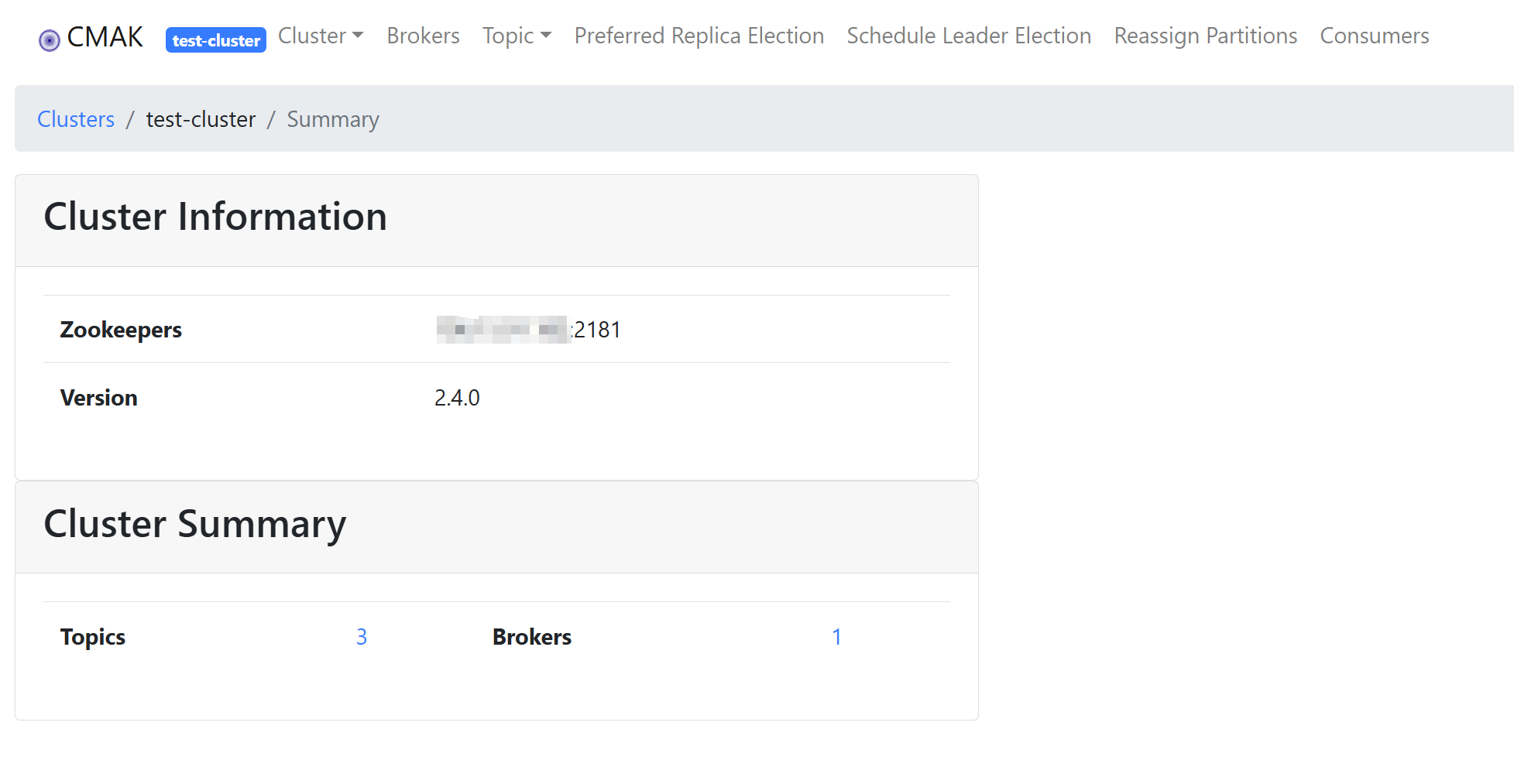

點擊進入可以進行Topics和Brokers的管理

六、項目中進行配置和使用

1:pom設置，因?yàn)槲液竺嬉肍link,所以kafka.就直接引用flink-connector-kafka

<!--實時訂單處理-->
<!-- Flink 核心依賴 -->
<dependency>
    <groupId>org.apache.flink</groupId>
    <artifactId>flink-java</artifactId>
    <version>${flink.version}</version>
</dependency>
<dependency>
    <groupId>org.apache.flink</groupId>
    <artifactId>flink-streaming-java</artifactId>
    <version>${flink.version}</version>
</dependency>

<dependency>
    <groupId>org.apache.flink</groupId>
    <artifactId>flink-clients</artifactId>
    <version>${flink.version}</version>
</dependency>

<!-- Kafka Source Connector -->
<dependency>
    <groupId>org.apache.flink</groupId>
    <artifactId>flink-connector-kafka</artifactId>
    <version>${flink.version}</version>
</dependency>

<!-- Redis Sink 客戶端 -->
<dependency>
    <groupId>redis.clients</groupId>
    <artifactId>jedis</artifactId>
    <version>3.9.0</version>
</dependency>

<dependency>
    <groupId>org.springframework.kafka</groupId>
    <artifactId>spring-kafka</artifactId>
</dependency>

<!--實時訂單處理-->

application-dev.yml: 設置后，Consumer可以直接使用@KafkaListener監聽消息

spring:
  kafka:
    listener:
      missing-topics-fatal: false
    bootstrap-servers: 自己的ip:9092
    consumer:
      auto-offset-reset: earliest
      enable-auto-commit: false
      key-deserializer: org.apache.kafka.common.serialization.StringDeserializer
      value-deserializer: org.apache.kafka.common.serialization.StringDeserializer
    properties:
      session.timeout.ms: 15000
      heartbeat.interval.ms: 5000
      max.poll.interval.ms: 300000
      metadata.max.age.ms: 3000
    producer:
      key-serializer: org.apache.kafka.common.serialization.StringSerializer
      value-serializer: org.apache.kafka.common.serialization.StringSerializer

2：多 Topic + 多 Group 實現方式：

功能	實現方式
多 Topic	多個 @KafkaListener 方法
多 Group	每個監聽器指定不同的 groupId
負載均衡	多實例使用相同 groupId
廣播模式	多實例使用不同 groupId
動態配置	使用 application.yml + @Value 注入
自定義容器工廠	使用 ConcurrentKafkaListenerContainerFactory

3：示例代碼

KafkaConfig:

package com.zbkj.front.config.kafka;

import org.apache.kafka.clients.consumer.ConsumerConfig;
import org.apache.kafka.clients.producer.KafkaProducer;
import org.apache.kafka.clients.producer.ProducerConfig;
import org.apache.kafka.common.serialization.StringDeserializer;
import org.apache.kafka.common.serialization.StringSerializer;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.kafka.annotation.EnableKafka;
import org.springframework.kafka.config.ConcurrentKafkaListenerContainerFactory;
import org.springframework.kafka.core.*;

import java.util.HashMap;
import java.util.Map;
import java.util.Properties;

@Configuration
@EnableKafka
public class KafkaConfig {

    // ========== 公共方法 ==========
    public Map<String, Object> commonConsumerProps(String groupId) {
        Map<String, Object> props = new HashMap<>();
        props.put(ConsumerConfig.BOOTSTRAP_SERVERS_CONFIG, "自己的ip:9092");
        props.put(ConsumerConfig.GROUP_ID_CONFIG, groupId);
        props.put(ConsumerConfig.KEY_DESERIALIZER_CLASS_CONFIG, StringDeserializer.class);
        props.put(ConsumerConfig.VALUE_DESERIALIZER_CLASS_CONFIG, StringDeserializer.class);
        props.put(ConsumerConfig.AUTO_OFFSET_RESET_CONFIG, "earliest");
        props.put(ConsumerConfig.ENABLE_AUTO_COMMIT_CONFIG, false);
        return props;
    }

    // ========== 消費者組 1 - order-group ==========
    @Bean
    public ConsumerFactory<String, String> orderConsumerFactory() {
        return new DefaultKafkaConsumerFactory<>(commonConsumerProps("order-group"));
    }

    @Bean
    public ConcurrentKafkaListenerContainerFactory<String, String> orderKafkaListenerContainerFactory() {
        ConcurrentKafkaListenerContainerFactory<String, String> factory =
                new ConcurrentKafkaListenerContainerFactory<>();
        factory.setConsumerFactory(orderConsumerFactory());
        factory.setConcurrency(1); // 可根據分區數設置并發度
        return factory;
    }

    // ========== 消費者組 2 - payment-group ==========
    @Bean
    public ConsumerFactory<String, String> paymentConsumerFactory() {
        return new DefaultKafkaConsumerFactory<>(commonConsumerProps("payment-group"));
    }

    @Bean
    public ConcurrentKafkaListenerContainerFactory<String, String> paymentKafkaListenerContainerFactory() {
        ConcurrentKafkaListenerContainerFactory<String, String> factory =
                new ConcurrentKafkaListenerContainerFactory<>();
        factory.setConsumerFactory(paymentConsumerFactory());
        factory.setConcurrency(1);
        return factory;
    }

    // ========== Kafka Producer Bean ==========
    @Bean
    public KafkaProducer<String, String> orderKafkaProducer() {
        Properties props = new Properties();
        props.put(ProducerConfig.BOOTSTRAP_SERVERS_CONFIG, "自己的ip:9092");
        props.put(ProducerConfig.KEY_SERIALIZER_CLASS_CONFIG, StringSerializer.class.getName());
        props.put(ProducerConfig.VALUE_SERIALIZER_CLASS_CONFIG, StringSerializer.class.getName());
        props.put(ProducerConfig.ENABLE_IDEMPOTENCE_CONFIG, "true");
        props.put(ProducerConfig.MAX_IN_FLIGHT_REQUESTS_PER_CONNECTION, "5");

        return new KafkaProducer<>(props);
    }
}

OrderConsumer

package com.zbkj.front.config.kafka;

import lombok.extern.slf4j.Slf4j;
import org.apache.kafka.clients.consumer.ConsumerRecord;
import org.springframework.kafka.annotation.KafkaListener;
import org.springframework.stereotype.Service;

@Service
@Slf4j
public class OrderConsumer {

    @KafkaListener(topics = "orderCreate-topic", containerFactory = "orderKafkaListenerContainerFactory")
    public void consumeOrder(ConsumerRecord<String, String> record) {
        log.info("[訂單服務] 收到消息 topic={}, offset={}, key={}, value={}",
                record.topic(), record.offset(), record.key(), record.value());
    }
}

PaymentConsumer

package com.zbkj.front.config.kafka;

import lombok.extern.slf4j.Slf4j;
import org.apache.kafka.clients.consumer.ConsumerRecord;
import org.springframework.kafka.annotation.KafkaListener;
import org.springframework.stereotype.Service;

@Service
@Slf4j
public class PaymentConsumer {

    @KafkaListener(topics = "orderPayment-topic", containerFactory = "paymentKafkaListenerContainerFactory")
    public void consumePayment(ConsumerRecord<String, String> record) {
        log.info("[支付服務] 收到消息 topic={}, offset={}, key={}, value={}",
                record.topic(), record.offset(), record.key(), record.value());
    }
}

testController

package com.zbkj.front.controller;

import com.fasterxml.jackson.databind.ObjectMapper;
import com.zbkj.common.model.order.Order;
import com.zbkj.common.result.CommonResult;
import com.zbkj.front.event.OrderEvent;
import com.zbkj.front.event.OrderStatusEum;
import io.swagger.annotations.Api;
import io.swagger.annotations.ApiOperation;
import lombok.extern.slf4j.Slf4j;
import org.apache.kafka.clients.producer.KafkaProducer;
import org.apache.kafka.clients.producer.ProducerRecord;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.validation.annotation.Validated;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.RestController;

import java.math.BigDecimal;
import java.time.LocalDateTime;

@Slf4j
@RestController
@RequestMapping("api/front/test")
@Api(tags = "測試")
public class testController {

    private final ObjectMapper objectMapper = new ObjectMapper();
    @Autowired
    @Qualifier("orderKafkaProducer")
    private KafkaProducer<String, String> orderKafkaProducer;


    @ApiOperation(value = "測試")
    @RequestMapping(value = "/test/orderCreate", method = RequestMethod.GET)
    public CommonResult<String> orderTopic(@Validated String orderNo) {
        Order order= new Order();
        order.setOrderNo(orderNo);
        order.setPayPrice(new BigDecimal(100));
        // 添加到訂單創建的地方
        sendOrderCreatedEvent(order,"orderCreate-topic");
      return   CommonResult.success();
    }

    @ApiOperation(value = "測試")
    @RequestMapping(value = "/test/orderPayment", method = RequestMethod.GET)
    public CommonResult<String> orderPayment(@Validated String orderNo) {
        Order order= new Order();
        order.setOrderNo(orderNo);
        order.setPayPrice(new BigDecimal(100));
        // 添加到訂單創建的地方
        sendOrderCreatedEvent(order,"orderPayment-topic");
        return   CommonResult.success();
    }

    public void sendOrderCreatedEvent(Order order,String topic) {
        try {
            // 構建訂單事件對象
            OrderEvent event = new OrderEvent(
                    String.valueOf(order.getOrderNo()),
                    order.getPayPrice(),
                    LocalDateTime.now().toString(),
                    OrderStatusEum.CREATED
            );

            // 序列化為 JSON
            String json = objectMapper.writeValueAsString(event);

            // 創建 Kafka 消息記錄（使用訂單號作為 key）
            ProducerRecord<String, String> record = new ProducerRecord<>(topic, order.getOrderNo(), json);

            // 發送消息
            orderKafkaProducer.send(record, (metadata, exception) -> {
                if (exception != null) {
                    log.error("Kafka消息發送失敗 topic={}, key={}, error={}",
                            record.topic(), record.key(), exception.getMessage());
                } else {
                    log.info("Kafka消息發送成功 topic={}, key={}, partition={}, offset={}",
                            metadata.topic(), record.key(), metadata.partition(), metadata.offset());
                }
            });

        } catch (Exception e) {
            log.error("發送Kafka訂單創建事件異常 orderNo={}", order.getOrderNo(), e);
        }
    }

}

執行完后：

2025-05-28 15:56:53.768 [kafka-producer-network-thread | producer-1] INFO com.zbkj.front.controller.testController - Kafka消息發送成功 topic=orderCreate-topic, key=PT672174822506216634598, partition=0, offset=0
2025-05-28 15:56:53.772 [org.springframework.kafka.KafkaListenerEndpointContainer#0-0-C-1] INFO com.zbkj.front.config.kafka.OrderConsumer - [訂單服務] 收到消息 topic=orderCreate-topic, offset=0, key=PT672174822506216634598, value={"orderId":"PT672174822506216634598","merId":null,"amount":100,"timestamp":"2025-05-28T15:56:49.726","status":"CREATED"}

2025-05-28 15:57:22.687 [kafka-producer-network-thread | producer-1] INFO com.zbkj.front.controller.testController - Kafka消息發送成功 topic=orderPayment-topic, key=SH377174799246359695171, partition=0, offset=0
2025-05-28 15:57:22.688 [org.springframework.kafka.KafkaListenerEndpointContainer#1-0-C-1] INFO com.zbkj.front.config.kafka.PaymentConsumer - [支付服務] 收到消息 topic=orderPayment-topic, offset=0, key=SH377174799246359695171, value={"orderId":"SH377174799246359695171","merId":null,"amount":100,"timestamp":"2025-05-28T15:57:20.754","status":"CREATED"}

以上就是docker安裝單機版kafka并使用的詳細步驟的詳細內容，更多關于docker安裝kafka的資料請關注腳本之家其它相關文章！

您可能感興趣的文章:
