Nginx安裝和配置過程(yum安裝和編譯安裝)
1. Yum 安裝 Nginx
nginx的官方網站:http://www.nginx.org

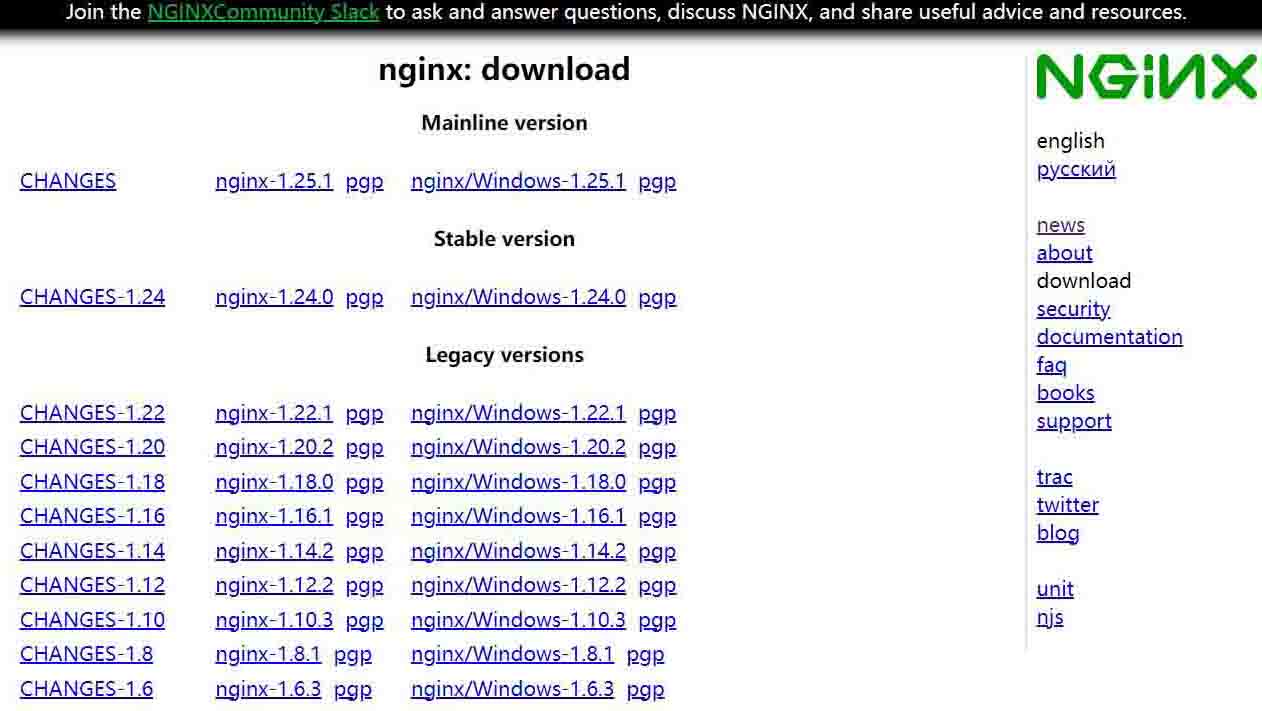

Nginx版本類型
- Mainline version:主線版,即開發版
- Stable version:最新穩定版,生產環境上建議使用的版本
- Legacy versions:遺留的老版本的穩定版
Yum安裝nginx
配置Yum源的官網:http://nginx.org/en/linux_packages.html
1.1. 配置 Nginx 的 Yum 源
安裝說明:
在新計算機上首次安裝nginx之前,需要設置nginx軟件包存儲庫。 之后,您可以從存儲庫安裝和更新nginx。
要設置yum存儲庫,請創建名為/etc/yum.repos.d/nginx.repo的文件,其中包含以下內容:
//安裝yum工具包 [root@localhost ~]# yum -y install yum-utils [root@localhost ~]# vim /etc/yum.repos.d/nginx.repo [nginx-stable] name=nginx stable repo baseurl=http://nginx.org/packages/centos/$releasever/$basearch/ gpgcheck=1 enabled=1 gpgkey=https://nginx.org/keys/nginx_signing.key module_hotfixes=true [nginx-mainline] name=nginx mainline repo baseurl=http://nginx.org/packages/mainline/centos/$releasever/$basearch/ gpgcheck=1 enabled=0 gpgkey=https://nginx.org/keys/nginx_signing.key module_hotfixes=true
1.2. 安裝 Nginx
這里我們用穩定版本
[root@localhost ~]# yum install -y nginx [root@localhost ~]# nginx -V //查看nginx的詳細信息,包括模塊,安裝目錄、用戶等 nginx version: nginx/1.24.0 built by gcc 4.8.5 20150623 (Red Hat 4.8.5-44) (GCC) built with OpenSSL 1.0.2k-fips 26 Jan 2017 TLS SNI support enabled configure arguments: --prefix=/etc/nginx --sbin-path=/usr/sbin/nginx --modules-path=/usr/lib64/nginx/modules --conf-path=/etc/nginx/nginx.conf --error-log-path=/var/log/nginx/error.log --http-log-path=/var/log/nginx/access.log --pid-path=/var/run/nginx.pid --lock-path=/var/run/nginx.lock --http-client-body-temp-path=/var/cache/nginx/client_temp --http-proxy-temp-path=/var/cache/nginx/proxy_temp --http-fastcgi-temp-path=/var/cache/nginx/fastcgi_temp --http-uwsgi-temp-path=/var/cache/nginx/uwsgi_temp --http-scgi-temp-path=/var/cache/nginx/scgi_temp --user=nginx --group=nginx --with-compat --with-file-aio --with-threads --with-http_addition_module --with-http_auth_request_module --with-http_dav_module --with-http_flv_module --with-http_gunzip_module --with-http_gzip_static_module --with-http_mp4_module --with-http_random_index_module --with-http_realip_module --with-http_secure_link_module --with-http_slice_module --with-http_ssl_module --with-http_stub_status_module --with-http_sub_module --with-http_v2_module --with-mail --with-mail_ssl_module --with-stream --with-stream_realip_module --with-stream_ssl_module --with-stream_ssl_preread_module --with-cc-opt='-O2 -g -pipe -Wall -Wp,-D_FORTIFY_SOURCE=2 -fexceptions -fstack-protector-strong --param=ssp-buffer-size=4 -grecord-gcc-switches -m64 -mtune=generic -fPIC' --with-ld-opt='-Wl,-z,relro -Wl,-z,now -pie' ? [root@localhost ~]# nginx -v //查看版本號 nginx version: nginx/1.24.0 //關閉防火墻和selinux [root@localhost ~]# getenforce Enforcing [root@localhost ~]# setenforce 0 [root@localhost ~]# sed -i '/SELINUX/s/enforcing/disabled/' /etc/selinux/config ? [root@localhost ~]# systemctl stop firewalld [root@localhost ~]# systemctl disable firewalld //啟動并設置開機啟動 [root@localhost ~]# systemctl start nginx [root@localhost ~]# systemctl enable nginx

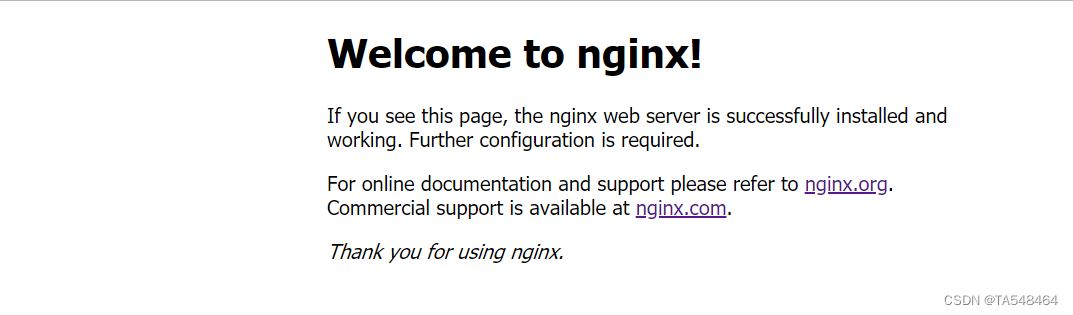

瀏覽器輸入ip訪問:
2. Nginx 編譯安裝與配置使用
2.1. 安裝編譯環境
[root@localhost ~]# yum -y install gcc gcc-c++ pcre pcre-devel gd-devel openssl openssl-devel zlib zlib-devel
2.2. 創建用戶nginx
[root@localhost ~]# useradd nginx && echo "nginx" | passwd --stdin nginx
2.3. 安裝 Nginx
[root@localhost ~]# rpm -qa|grep wget && wget http://nginx.org/download/nginx-1.24.0.tar.gz [root@localhost ~]# mkdir -p /tmp/nginx/ [root@localhost ~]# tar -xzvf nginx-1.24.0.tar.gz -C /usr/local/ [root@localhost ~]# cd /usr/local/nginx-1.24.0/ [root@localhost nginx-1.24.0]# ./configure --prefix=/usr/local/nginx --user=nginx --sbin-path=/usr/local/nginx/sbin/nginx --conf-path=/etc/nginx/nginx.conf --error-log-path=/var/log/nginx/error.log --http-log-path=/var/log/nginx/access.log --http-client-body-temp-path=/tmp/nginx/client_body --http-proxy-temp-path=/tmp/nginx/proxy --http-fastcgi-temp-path=/tmp/nginx/fastcgi --pid-path=/var/run/nginx.pid --lock-path=/var/lock/nginx --with-http_stub_status_module --with-http_ssl_module --with-http_gzip_static_module --with-pcre --with-http_realip_module --with-stream [root@localhost nginx-1.24.0]# make && make install
2.4. Nginx 編譯參數詳解
--prefix=/usr/local/nginx ##指向安裝目錄 --conf-path=/etc/nginx/nginx.conf ##指定配置文件 --http-log-path=/var/log/nginx/access.log ##指定訪問日志 --error-log-path=/var/log/nginx/error.log ##指定錯誤日志 --lock-path=/var/lock/nginx.lock ##指定lock文件(進程鎖文件路徑)Nginx進程鎖(lock file)是用于控制Nginx進程并發性的一種機制。在Nginx啟動時,會創建一個進程鎖文件,用于記錄Nginx主進程的PID,并避免多個Nginx進程同時運行。 --pid-path=/run/nginx.pid ##指定pid文件 --http-client-body-temp-path=/var/lib/nginx/body ##設定http客戶端請求臨時文件路徑(客戶端請求體臨時文件路徑) #作用:HTTP客戶端請求體臨時文件用于存儲客戶端請求體的臨時數據,通常情況下,當客戶端上傳的數據比較大時,Nginx會將請求體存儲在臨時文件中,以避免內存不足的問題 ? --http-fastcgi-temp-path=/var/lib/nginx/fastcgi ##設定http fastcgi臨時文件路徑(用于設置FastCGI臨時文件路徑) #FastCGI是一種Web服務器和應用程序之間通信的協議,它可以用于將動態生成的Web頁面的生成過程交給獨立的FastCGI進程處理,從而提高Web服務器的性能和可靠性。在處理FastCGI請求時,Nginx會使用FastCGI臨時文件來存儲和傳遞FastCGI進程生成的數據。 ? --http-proxy-temp-path=/var/lib/nginx/proxy ##設定http代理臨時文件路徑(用于設置代理模塊臨時文件路徑) #代理模塊是Nginx中的一個核心模塊,用于將客戶端的請求轉發到后端服務器,并將后端服務器的響應返回給客戶端。在處理代理請求時,Nginx會使用代理模塊臨時文件來存儲和傳遞代理請求的數據。 ? --http-scgi-temp-path=/var/lib/nginx/scgi ##設定http scgi模塊臨時路徑(用于設置SCGI(Simple Common Gateway Interface)模塊臨時文件路徑) #SCGI是一種Web服務器和應用程序之間通信的協議,類似于FastCGI。在處理SCGI請求時,Nginx會使用SCGI模塊臨時文件來存儲和傳遞SCGI進程生成的數據。 ? --http-uwsgi-temp-path=/var/lib/nginx/uwsgi ##設定http uwsgi臨時文件路徑(用于設置uWSGI(Universal Web Server Gateway Interface)模塊臨時文件路徑) #uWSGI是一種Web服務器和應用程序之間通信的協議,類似于FastCGI和SCGI。在處理uWSGI請求時,Nginx會使用uWSGI模塊臨時文件來存儲和傳遞uWSGI進程生成的數據。 ? --with-debug #啟用調試日志信息,用于調試和排查問題。 --with-ipv6 #啟用IPv6支持。 --with-http_ssl_module #啟用HTTPS協議支持的SSL/TLS模塊。 ? --with-http_stub_status_module #啟用Nginx自上次啟動以來的狀態信息模塊,可以通過HTTP接口獲取。 --with-http_realip_module #允許從請求頭中更改客戶端的IP地址值,用于反向代理等場景,默認為關閉狀態。 --with-http_auth_request_module #實現基于子請求結果的客戶端授權,如果子請求返回2xx響應代碼,則允許訪問;如果返回401或403響應代碼,則拒絕訪問;其他響應代碼則視為錯誤。 ?--with-http_addition_module #作為一個輸出過濾器,支持不完全緩沖、分部分響應請求。 --with-http_dav_module #增加PUT、DELETE、MKCOL、COPY和MOVE方法,用于WebDAV協議支持,默認為關閉狀態,需要編譯開啟。 ?--with-http_geoip_module #使用預編譯的MaxMind數據庫解析客戶端IP地址,得到變量值。 ?--with-http_gunzip_module #用于解壓具有“Content-Encoding: gzip”頭的響應,以支持不支持“gzip”編碼方法的客戶端。 ?--with-http_gzip_static_module #在線實時壓縮輸出數據流,以降低網絡帶寬消耗。 ?--with-http_spdy_module #啟用SPDY協議支持,可以縮短網頁的加載時間。 ?--with-http_sub_module #允許在Nginx響應中用一些其他文本替換指定的文本,用于文本替換和重定向等場景。 ?--with-http_xslt_module #用于過濾和轉換XML請求。 ?--with-mail #啟用POP3/IMAP4/SMTP代理模塊支持。 ?--with-mail_ssl_module #啟用ngx_mail_ssl_module支持,用于支持SSL/TLS加密的SMTP/POP3/IMAP4協議。 ?#這些選項可以根據具體需求進行選擇和配置,以滿足不同的應用場景。需要注意的是,一些模塊默認是關閉的,需要通過編譯時的選項進行開啟。同時,這些選項需要在編譯Nginx之前進行設置。 ? --with 表示在編譯過程中需要給nginx添加的模塊 --without 表示編譯nginx時默認該模塊是添加進去的當使用這個參數時表示將默認編譯的模塊移除
//查看 nginx 安裝的模塊 [root@localhost ~]# /usr/local/nginx/sbin/nginx -V nginx version: nginx/1.24.0 built by gcc 4.8.5 20150623 (Red Hat 4.8.5-44) (GCC) built with OpenSSL 1.0.2k-fips 26 Jan 2017 TLS SNI support enabled configure arguments: --prefix=/usr/local/nginx --user=nginx --sbin-path=/usr/local/nginx/sbin/nginx --conf-path=/etc/nginx/nginx.conf --error-log-path=/var/log/nginx/error.log --http-log-path=/var/log/nginx/access.log --http-client-body-temp-path=/tmp/nginx/client_body --http-proxy-temp-path=/tmp/nginx/proxy --http-fastcgi-temp-path=/tmp/nginx/fastcgi --pid-path=/var/run/nginx.pid --lock-path=/var/lock/nginx --with-http_stub_status_module --with-http_ssl_module --with-http_gzip_static_module --with-pcre --with-http_realip_module --with-stream ? //只查看版本號 [root@localhost ~]# /usr/local/nginx/sbin/nginx -v nginx version: nginx/1.24.0
2.5. 修改配置文件/etc/nginx/nginx.conf
[root@localhost ~]# cd /etc/nginx/ [root@localhost nginx]# ls fastcgi.conf koi-utf nginx.conf uwsgi_params fastcgi.conf.default koi-win nginx.conf.default uwsgi_params.default fastcgi_params mime.types scgi_params win-utf fastcgi_params.default mime.types.default scgi_params.default [root@localhost nginx]# cp nginx.conf{,.bak} [root@localhost nginx]# vim nginx.conf
# 全局參數設置 user nginx; #設置nginx使用的用戶 worker_processes 4; #設置nginx啟動進程的數量,一般設置成與邏輯cpu數量相同 error_log logs/error.log; #指定錯誤日志 pid /var/run/nginx.pid; events { worker_connections 1024; #設置一個進程的最大并發連接數 } ? # http 服務相關設置 http { include mime.types; #關聯mime類型,關聯資源的媒體類型 default_type application/octet-stream; #根據文件的后綴來匹配相應的MIME類型 log_format main 'remote_addr - remote_user [time_local] "request" ' 'status body_bytes_sent "$http_referer" ' '"http_user_agent" "http_x_forwarded_for"'; #這一段是Nginx的日志格式配置,這一小段忽略: remote_addr:客戶端IP地址。 remote_user:客戶端用戶名。 [time_local]:訪問時間,格式為本地時間。 "request":HTTP請求方法、URI和協議版本。 status:HTTP響應狀態碼。 body_bytes_sent:發送給客戶端的數據量,不包括響應頭。 "$http_referer":HTTP Referer頭信息,表示訪問來源。 "http_user_agent":HTTP User-Agent頭信息,表示客戶端瀏覽器或應用程序的信息。 "http_x_forwarded_for":HTTP X-Forwarded-For頭信息,表示客戶端真實IP地址,用于反向代理場景。 access_log /var/log/nginx/access.log main; #設置訪問日志的位置和格式 sendfile on; # 用于開啟文件高效傳輸模式,一般設置為on,若nginx是用來進行磁盤IO負載應用時,可以設置為off,降低系統負載 tcp_nopush on; # 減少網絡報文段數量,當有數據時,先別著急發送,確保數據包已經裝滿數據,避免了網絡擁塞 tcp_nodelay on; # 提高I/O性能,禁用Nagle算法,確保數據盡快發送,提高可數據傳輸效率 (Nagle算法是一種常用的TCP網絡傳輸優化算法,它將多個小的數據包合并成一個大的數據包發送,以減少網絡傳輸?shù)拈_銷) gzip on; #是否開啟gzip壓縮,將注釋去掉開啟 keepalive_timeout 65; #設置長連接的超時時間,即:請求完成之后還要保持連接多久 # 虛擬服務器的相關設置 server { listen 80; #設置監聽的端口 server_name localhost; #設置綁定的主機名、域名或ip地址 charset koi8-r; # 設置編碼字符 location / { root /var/www/nginx; #設置服務器默認網站的根目錄位置,需要手動創建 index index.html index.htm; #設置默認打開的文檔 } error_page 500 502 503 504 /50x.html; #設置錯誤信息返回頁面 location = /50x.html { root html; #這里的絕對位置是/usr/local/nginx/html } } }
1、nginx.conf的組成:
- nginx.conf一共由三部分組成,分別為:全局塊、events塊、http塊。在http塊中又包含http全局塊、多個server塊。
- 每個server塊中又包含server全局塊以及多個location塊。在統一配置塊中嵌套的配置快,各個之間不存在次序關系。
2、Nginx的組成:
- nginx的二進制可執行文件:用來啟動關閉nginx的,由各個模塊編譯出來的
#—/usr/local/nginx/sbin/nginx
- nginx.conf配置文件:控制nginx
- access.log訪問日志:記錄每條http請求
- error.log 錯誤日志:定位問題
2.6. 檢測 Nginx 配置文件是否正確
[root@localhost nginx]# /usr/local/nginx/sbin/nginx -t ? //最簡單的方法讓服務器全局都能使用nginx命令 [root@localhost nginx]# ln -s /usr/local/nginx/sbin/nginx /usr/sbin/nginx #注意一定要是絕對路徑?。?! ? [root@localhost nginx]# nginx -t nginx: the configuration file /etc/nginx/nginx.conf syntax is ok nginx: configuration file /etc/nginx/nginx.conf test is successful
2.7. 啟動 Nginx 服務
[root@localhost ~]# /usr/local/nginx/sbin/nginx //或者直接 nginx
2.8. 通過 Nginx 命令控制 Nginx 服務
nginx -c /path/nginx.conf - # 以特定目錄下的配置文件啟動nginx nginx -s reload # 修改配置后重新加載生效 nginx -s stop # 快速停止nginx nginx -s quit # 正常停止nginx nginx -t # 測試當前配置文件是否正確 nginx -t -c /path/to/nginx.conf # 測試特定的nginx配置文件是否正確
注意:
nginx -s reload
命令加載修改后的配置文件,命令下達后發生如下事件:
- 1.Nginx的master進程檢查配置文件的正確性,若是錯誤則返回錯誤信息,nginx繼續采用原配置文件進行工作(因?yàn)閣orker未受到影響)
- 2.如果配置文件沒問題,則Nginx會啟動新的worker進程,并且采用新的配置文件
- 3.Nginx將新的請求分配新的worker進程
- 4.Nginx等待以前的worker進程的全部請求已經都返回后,關閉相關worker進程
- 5.重復上面過程,直到全部舊的worker進程都被關閉掉
3. Nginx 日志文件詳解
- nginx 日志文件分為 log_format 和 access_log 兩部分
- log_format 定義記錄的格式,其語法格式為:
# log_format 樣式名稱 樣式詳情
配置文件中默認有,編譯安裝的nginx默認是關閉該格式的
log_format main 'remote_addr - remote_user [time_local] "request" ' 'status body_bytes_sent "$http_referer" ' '"http_user_agent" "http_x_forwarded_for"';
參數解釋
變量 | 說明 |
---|---|
remote_addr | 客戶端IP地址 |
remote_user | 客戶端用戶名 |
[time_local] | 訪問時間,格式為本地時間 |
“request” | HTTP請求方法、URI和協議版本 |
status | HTTP響應狀態碼 |
body_bytes_sent | 發送給客戶端的數據量,不包括響應頭 |
“$http_referer” | HTTP Referer頭信息,表示訪問來源 |
“http_user_agent” | HTTP User-Agent頭信息,表示客戶端瀏覽器或應用程序的信息 |
“http_x_forwarded_for” | HTTP X-Forwarded-For頭信息,表示客戶端真實IP地址,用于反向代理場景 |
總結
以上為個人經驗,希望能給大家一個參考,也希望大家多多支持腳本之家。
