from tensorflow.examples.tutorials.mnist import input_data
import tensorflow as tf
mnist = input_data.read_data_sets("MNIST_data/", one_hot=True)
sess = tf.InteractiveSession(）

def weight_variable(shape):
 initial = tf.truncated_normal(shape, stddev=0.1)
#給權重制造一些隨機的噪聲來打破完全對稱，
 return tf.Variable(initial)
#使用relu，給偏置增加一些小正值0.1，用來避免死亡節點
def bias_variable(shape):
 initial = tf.constant(0.1, shape=shape)
 return tf.Variable(initial)

def conv2d(x,W):#2維卷積函數，x輸入，w是卷積的參數，strides代表卷積模板移動步長
 return tf.nn.conv2d(x, W, strides=[1, 1, 1, 1], padding='SAME')

def max_pool_2x2(x):
 return tf.nn.max_pool(x, ksize=[1, 2, 2, 1], strides=[1, 2, 2, 1],
       padding='SAME')

x = tf.placeholder(tf.float32, [None, 784])# x 時特征
y_ = tf.placeholder(tf.float32, [None, 10])# y_時真實的label
x_image = tf.reshape(x, [-1, 28, 28,1])

w_conv1 = weight_variable([5, 5, 1, 32])
#代表卷積核尺寸為5X5，1個顏色通道，32個不同的卷積核，使用conv2d函數進行卷積操作，
b_conv1 = bias_variable([32])
h_conv1 = tf.nn.relu(conv2d(x_image, w_conv1) + b_conv1)
h_pool1 = max_pool_2x2(h_conv1)

w_conv2 = weight_variable([5, 5, 32, 64])#這層提取64種特征
b_conv2 = bias_variable([64])
h_conv2 = tf.nn.relu(conv2d(h_pool1, w_conv2) + b_conv2)
h_pool2 = max_pool_2x2(h_conv2)

w_fc1 = weight_variable([7*7*64, 1024])
b_fc1 = bias_variable([1024])
h_pool2_flat = tf.reshape(h_pool2, [-1, 7*7*64])
h_fc1 = tf.nn.relu(tf.matmul(h_pool2_flat, w_fc1) + b_fc1)

#為了減輕過擬合，使用一個Dropout層
keep_prob = tf.placeholder(tf.float32)
h_fc1_drop = tf.nn.dropout(h_fc1, keep_prob)

#dropout層的輸出連接一個softmax層，得到最后的概率輸出
w_fc2 = weight_variable([1024, 10])
b_fc2 = bias_variable([10])
y_conv = tf.nn.softmax(tf.matmul(h_fc1_drop, w_fc2) + b_fc2)

#損失函數，并且定義優化器為Adam
cross_entropy = tf.reduce_mean(-tf.reduce_sum(y_ * tf.log(y_conv),
            reduction_indices=[1]))
train_step = tf.train.AdamOptimizer(1e-4).minimize(cross_entropy)

correct_prediction = tf.equal(tf.argmax(y_conv, 1), tf.argmax(y_, 1))
accuracy = tf.reduce_mean(tf.cast(correct_prediction, tf.float32))

#初始化所有參數
tf.global_variables_initializer().run()
for i in range (20000):
 batch = mnist.train.next_batch(50)
 if i%100 == 0:
  train_accuracy = accuracy.eval(feed_dict={x:batch[0], y_: batch[1],
             keep_prob: 1.0})

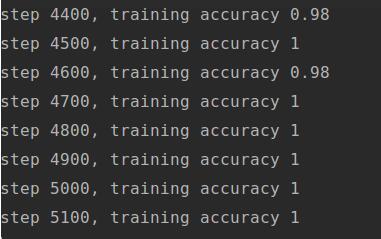

  print("step %d, training accuracy %g"%(i, train_accuracy))
 train_step.run(feed_dict={x: batch[0], y_: batch[1], keep_prob: 0.5})

print("test accuracy %g" %accuracy.eval(feed_dict={
 x: mnist.test.images, y_: mnist.test.labels, keep_prob: 1.0}))
