pyqt5實現俄羅斯方塊游戲

更新時間：2019年01月11日 11:03:18 作者：派森學python

這篇文章主要介紹了pyqt5實現俄羅斯方塊游戲，小編覺得挺不錯的，現在分享給大家，也給大家做個參考。一起跟隨小編過來看看吧

本章我們要制作一個俄羅斯方塊游戲。

Tetris

譯注：稱呼：方塊是由四個小方格組成的

俄羅斯方塊游戲是世界上最流行的游戲之一。是由一名叫Alexey Pajitnov的俄羅斯程序員在1985年制作的，從那時起，這個游戲就風靡了各個游戲平臺。

俄羅斯方塊歸類為下落塊迷宮游戲。游戲有7個基本形狀：S、Z、T、L、反向L、直線、方塊，每個形狀都由4個方塊組成，方塊最終都會落到屏幕底部。所以玩家通過控制形狀的左右位置和旋轉，讓每個形狀都以合適的位置落下，如果有一行全部被方塊填充，這行就會消失，并且得分。游戲結束的條件是有形狀接觸到了屏幕頂部。

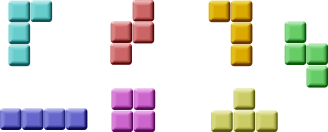

方塊展示：

PyQt5是專門為創建圖形界面產生的，里面一些專門為制作游戲而開發的組件，所以PyQt5是能制作小游戲的。

制作電腦游戲也是提高自己編程能力的一種很好的方式。

開發

沒有圖片，所以就自己用繪畫畫出來幾個圖形。每個游戲里都有數學模型的，這個也是。

開工之前：

用QtCore.QBasicTimer()創建一個游戲循環
模型是一直下落的
模型的運動是以小塊為基礎單位的，不是按像素
從數學意義上來說，模型就是就是一串?dāng)?shù)字而已

代碼由四個類組成：Tetris, Board, Tetrominoe和Shape。Tetris類創建游戲，Board是游戲主要邏輯。Tetrominoe包含了所有的磚塊，Shape是所有磚塊的代碼。

#!/usr/bin/python3
# -*- coding: utf-8 -*-

"""
ZetCode PyQt5 tutorial
This is a Tetris game clone.

Author: Jan Bodnar
Website: zetcode.com
Last edited: August 2017
"""

from PyQt5.QtWidgets import QMainWindow, QFrame, QDesktopWidget, QApplication
from PyQt5.QtCore import Qt, QBasicTimer, pyqtSignal
from PyQt5.QtGui import QPainter, QColor
import sys, random

class Tetris(QMainWindow):

  def __init__(self):
    super().__init__()

    self.initUI()


  def initUI(self):
    '''initiates application UI'''

    self.tboard = Board(self)
    self.setCentralWidget(self.tboard)

    self.statusbar = self.statusBar()
    self.tboard.msg2Statusbar[str].connect(self.statusbar.showMessage)

    self.tboard.start()

    self.resize(180, 380)
    self.center()
    self.setWindowTitle('Tetris')
    self.show()


  def center(self):
    '''centers the window on the screen'''

    screen = QDesktopWidget().screenGeometry()
    size = self.geometry()
    self.move((screen.width()-size.width())/2,
      (screen.height()-size.height())/2)


class Board(QFrame):

  msg2Statusbar = pyqtSignal(str)

  BoardWidth = 10
  BoardHeight = 22
  Speed = 300

  def __init__(self, parent):
    super().__init__(parent)

    self.initBoard()


  def initBoard(self):
    '''initiates board'''

    self.timer = QBasicTimer()
    self.isWaitingAfterLine = False

    self.curX = 0
    self.curY = 0
    self.numLinesRemoved = 0
    self.board = []

    self.setFocusPolicy(Qt.StrongFocus)
    self.isStarted = False
    self.isPaused = False
    self.clearBoard()


  def shapeAt(self, x, y):
    '''determines shape at the board position'''

    return self.board[(y * Board.BoardWidth) + x]


  def setShapeAt(self, x, y, shape):
    '''sets a shape at the board'''

    self.board[(y * Board.BoardWidth) + x] = shape


  def squareWidth(self):
    '''returns the width of one square'''

    return self.contentsRect().width() // Board.BoardWidth


  def squareHeight(self):
    '''returns the height of one square'''

    return self.contentsRect().height() // Board.BoardHeight


  def start(self):
    '''starts game'''

    if self.isPaused:
      return

    self.isStarted = True
    self.isWaitingAfterLine = False
    self.numLinesRemoved = 0
    self.clearBoard()

    self.msg2Statusbar.emit(str(self.numLinesRemoved))

    self.newPiece()
    self.timer.start(Board.Speed, self)


  def pause(self):
    '''pauses game'''

    if not self.isStarted:
      return

    self.isPaused = not self.isPaused

    if self.isPaused:
      self.timer.stop()
      self.msg2Statusbar.emit("paused")

    else:
      self.timer.start(Board.Speed, self)
      self.msg2Statusbar.emit(str(self.numLinesRemoved))

    self.update()


  def paintEvent(self, event):
    '''paints all shapes of the game'''

    painter = QPainter(self)
    rect = self.contentsRect()

    boardTop = rect.bottom() - Board.BoardHeight * self.squareHeight()

    for i in range(Board.BoardHeight):
      for j in range(Board.BoardWidth):
        shape = self.shapeAt(j, Board.BoardHeight - i - 1)

        if shape != Tetrominoe.NoShape:
          self.drawSquare(painter,
            rect.left() + j * self.squareWidth(),
            boardTop + i * self.squareHeight(), shape)

    if self.curPiece.shape() != Tetrominoe.NoShape:

      for i in range(4):

        x = self.curX + self.curPiece.x(i)
        y = self.curY - self.curPiece.y(i)
        self.drawSquare(painter, rect.left() + x * self.squareWidth(),
          boardTop + (Board.BoardHeight - y - 1) * self.squareHeight(),
          self.curPiece.shape())


  def keyPressEvent(self, event):
    '''processes key press events'''

    if not self.isStarted or self.curPiece.shape() == Tetrominoe.NoShape:
      super(Board, self).keyPressEvent(event)
      return

    key = event.key()

    if key == Qt.Key_P:
      self.pause()
      return

    if self.isPaused:
      return

    elif key == Qt.Key_Left:
      self.tryMove(self.curPiece, self.curX - 1, self.curY)

    elif key == Qt.Key_Right:
      self.tryMove(self.curPiece, self.curX + 1, self.curY)

    elif key == Qt.Key_Down:
      self.tryMove(self.curPiece.rotateRight(), self.curX, self.curY)

    elif key == Qt.Key_Up:
      self.tryMove(self.curPiece.rotateLeft(), self.curX, self.curY)

    elif key == Qt.Key_Space:
      self.dropDown()

    elif key == Qt.Key_D:
      self.oneLineDown()

    else:
      super(Board, self).keyPressEvent(event)


  def timerEvent(self, event):
    '''handles timer event'''

    if event.timerId() == self.timer.timerId():

      if self.isWaitingAfterLine:
        self.isWaitingAfterLine = False
        self.newPiece()
      else:
        self.oneLineDown()

    else:
      super(Board, self).timerEvent(event)


  def clearBoard(self):
    '''clears shapes from the board'''

    for i in range(Board.BoardHeight * Board.BoardWidth):
      self.board.append(Tetrominoe.NoShape)


  def dropDown(self):
    '''drops down a shape'''

    newY = self.curY

    while newY > 0:

      if not self.tryMove(self.curPiece, self.curX, newY - 1):
        break

      newY -= 1

    self.pieceDropped()


  def oneLineDown(self):
    '''goes one line down with a shape'''

    if not self.tryMove(self.curPiece, self.curX, self.curY - 1):
      self.pieceDropped()


  def pieceDropped(self):
    '''after dropping shape, remove full lines and create new shape'''

    for i in range(4):

      x = self.curX + self.curPiece.x(i)
      y = self.curY - self.curPiece.y(i)
      self.setShapeAt(x, y, self.curPiece.shape())

    self.removeFullLines()

    if not self.isWaitingAfterLine:
      self.newPiece()


  def removeFullLines(self):
    '''removes all full lines from the board'''

    numFullLines = 0
    rowsToRemove = []

    for i in range(Board.BoardHeight):

      n = 0
      for j in range(Board.BoardWidth):
        if not self.shapeAt(j, i) == Tetrominoe.NoShape:
          n = n + 1

      if n == 10:
        rowsToRemove.append(i)

    rowsToRemove.reverse()


    for m in rowsToRemove:

      for k in range(m, Board.BoardHeight):
        for l in range(Board.BoardWidth):
            self.setShapeAt(l, k, self.shapeAt(l, k + 1))

    numFullLines = numFullLines + len(rowsToRemove)

    if numFullLines > 0:

      self.numLinesRemoved = self.numLinesRemoved + numFullLines
      self.msg2Statusbar.emit(str(self.numLinesRemoved))

      self.isWaitingAfterLine = True
      self.curPiece.setShape(Tetrominoe.NoShape)
      self.update()


  def newPiece(self):
    '''creates a new shape'''

    self.curPiece = Shape()
    self.curPiece.setRandomShape()
    self.curX = Board.BoardWidth // 2 + 1
    self.curY = Board.BoardHeight - 1 + self.curPiece.minY()

    if not self.tryMove(self.curPiece, self.curX, self.curY):

      self.curPiece.setShape(Tetrominoe.NoShape)
      self.timer.stop()
      self.isStarted = False
      self.msg2Statusbar.emit("Game over")



  def tryMove(self, newPiece, newX, newY):
    '''tries to move a shape'''

    for i in range(4):

      x = newX + newPiece.x(i)
      y = newY - newPiece.y(i)

      if x < 0 or x >= Board.BoardWidth or y < 0 or y >= Board.BoardHeight:
        return False

      if self.shapeAt(x, y) != Tetrominoe.NoShape:
        return False

    self.curPiece = newPiece
    self.curX = newX
    self.curY = newY
    self.update()

    return True


  def drawSquare(self, painter, x, y, shape):
    '''draws a square of a shape'''

    colorTable = [0x000000, 0xCC6666, 0x66CC66, 0x6666CC,
           0xCCCC66, 0xCC66CC, 0x66CCCC, 0xDAAA00]

    color = QColor(colorTable[shape])
    painter.fillRect(x + 1, y + 1, self.squareWidth() - 2,
      self.squareHeight() - 2, color)

    painter.setPen(color.lighter())
    painter.drawLine(x, y + self.squareHeight() - 1, x, y)
    painter.drawLine(x, y, x + self.squareWidth() - 1, y)

    painter.setPen(color.darker())
    painter.drawLine(x + 1, y + self.squareHeight() - 1,
      x + self.squareWidth() - 1, y + self.squareHeight() - 1)
    painter.drawLine(x + self.squareWidth() - 1,
      y + self.squareHeight() - 1, x + self.squareWidth() - 1, y + 1)


class Tetrominoe(object):

  NoShape = 0
  ZShape = 1
  SShape = 2
  LineShape = 3
  TShape = 4
  SquareShape = 5
  LShape = 6
  MirroredLShape = 7


class Shape(object):

  coordsTable = (
    ((0, 0),   (0, 0),   (0, 0),   (0, 0)),
    ((0, -1),  (0, 0),   (-1, 0),  (-1, 1)),
    ((0, -1),  (0, 0),   (1, 0),   (1, 1)),
    ((0, -1),  (0, 0),   (0, 1),   (0, 2)),
    ((-1, 0),  (0, 0),   (1, 0),   (0, 1)),
    ((0, 0),   (1, 0),   (0, 1),   (1, 1)),
    ((-1, -1),  (0, -1),  (0, 0),   (0, 1)),
    ((1, -1),  (0, -1),  (0, 0),   (0, 1))
  )

  def __init__(self):

    self.coords = [[0,0] for i in range(4)]
    self.pieceShape = Tetrominoe.NoShape

    self.setShape(Tetrominoe.NoShape)


  def shape(self):
    '''returns shape'''

    return self.pieceShape


  def setShape(self, shape):
    '''sets a shape'''

    table = Shape.coordsTable[shape]

    for i in range(4):
      for j in range(2):
        self.coords[i][j] = table[i][j]

    self.pieceShape = shape


  def setRandomShape(self):
    '''chooses a random shape'''

    self.setShape(random.randint(1, 7))


  def x(self, index):
    '''returns x coordinate'''

    return self.coords[index][0]


  def y(self, index):
    '''returns y coordinate'''

    return self.coords[index][1]


  def setX(self, index, x):
    '''sets x coordinate'''

    self.coords[index][0] = x


  def setY(self, index, y):
    '''sets y coordinate'''

    self.coords[index][1] = y


  def minX(self):
    '''returns min x value'''

    m = self.coords[0][0]
    for i in range(4):
      m = min(m, self.coords[i][0])

    return m


  def maxX(self):
    '''returns max x value'''

    m = self.coords[0][0]
    for i in range(4):
      m = max(m, self.coords[i][0])

    return m


  def minY(self):
    '''returns min y value'''

    m = self.coords[0][1]
    for i in range(4):
      m = min(m, self.coords[i][1])

    return m


  def maxY(self):
    '''returns max y value'''

    m = self.coords[0][1]
    for i in range(4):
      m = max(m, self.coords[i][1])

    return m


  def rotateLeft(self):
    '''rotates shape to the left'''

    if self.pieceShape == Tetrominoe.SquareShape:
      return self

    result = Shape()
    result.pieceShape = self.pieceShape

    for i in range(4):

      result.setX(i, self.y(i))
      result.setY(i, -self.x(i))

    return result


  def rotateRight(self):
    '''rotates shape to the right'''

    if self.pieceShape == Tetrominoe.SquareShape:
      return self

    result = Shape()
    result.pieceShape = self.pieceShape

    for i in range(4):

      result.setX(i, -self.y(i))
      result.setY(i, self.x(i))

    return result


if __name__ == '__main__':

  app = QApplication([])
  tetris = Tetris()
  sys.exit(app.exec_())

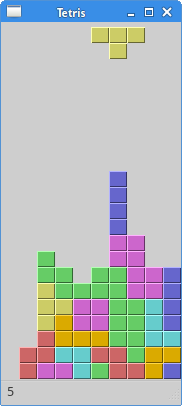

游戲很簡單，所以也就很好理解。程序加載之后游戲也就直接開始了，可以用P鍵暫停游戲，空格鍵讓方塊直接落到最下面。游戲的速度是固定的，并沒有實現加速的功能。分?jǐn)?shù)就是游戲中消除的行數。

self.tboard = Board(self)
self.setCentralWidget(self.tboard)

創建了一個Board類的實例，并設置為應用的中心組件。

self.statusbar = self.statusBar()
self.tboard.msg2Statusbar[str].connect(self.statusbar.showMessage)

創建一個statusbar來顯示三種信息：消除的行數，游戲暫停狀態或者游戲結束狀態。msg2Statusbar是一個自定義的信號，用在（和）Board類（交互），showMessage()方法是一個內建的，用來在statusbar上顯示信息的方法。

self.tboard.start()

初始化游戲：

class Board(QFrame):

  msg2Statusbar = pyqtSignal(str)
...

創建了一個自定義信號msg2Statusbar，當我們想往statusbar里顯示信息的時候，發出這個信號就行了。

BoardWidth = 10
BoardHeight = 22
Speed = 300

這些是Board類的變量。BoardWidth和BoardHeight分別是board的寬度和高度。Speed是游戲的速度，每300ms出現一個新的方塊。

...
self.curX = 0
self.curY = 0
self.numLinesRemoved = 0
self.board = []
...

在initBoard()里初始化了一些重要的變量。self.board定義了方塊的形狀和位置，取值范圍是0-7。

def shapeAt(self, x, y):
  return self.board[(y * Board.BoardWidth) + x]

shapeAt()決定了board里方塊的的種類。

def squareWidth(self):
  return self.contentsRect().width() // Board.BoardWidth

board的大小可以動態的改變。所以方格的大小也應該隨之變化。squareWidth()計算并返回每個塊應該占用多少像素--也即Board.BoardWidth。

def pause(self):
  '''pauses game'''

  if not self.isStarted:
    return

  self.isPaused = not self.isPaused

  if self.isPaused:
    self.timer.stop()
    self.msg2Statusbar.emit("paused")

  else:
    self.timer.start(Board.Speed, self)
    self.msg2Statusbar.emit(str(self.numLinesRemoved))

  self.update()

pause()方法用來暫停游戲，停止計時并在statusbar上顯示一條信息。

def paintEvent(self, event):
  '''paints all shapes of the game'''

  painter = QPainter(self)
  rect = self.contentsRect()
...

渲染是在paintEvent()方法里發生的QPainter負責PyQt5里所有低級繪畫操作。

for i in range(Board.BoardHeight):
  for j in range(Board.BoardWidth):
    shape = self.shapeAt(j, Board.BoardHeight - i - 1)

    if shape != Tetrominoe.NoShape:
      self.drawSquare(painter,
        rect.left() + j * self.squareWidth(),
        boardTop + i * self.squareHeight(), shape)

渲染游戲分為兩步。第一步是先畫出所有已經落在最下面的的圖，這些保存在self.board里?？梢允褂?code>shapeAt()查看這個這個變量。

if self.curPiece.shape() != Tetrominoe.NoShape:

  for i in range(4):

    x = self.curX + self.curPiece.x(i)
    y = self.curY - self.curPiece.y(i)
    self.drawSquare(painter, rect.left() + x * self.squareWidth(),
      boardTop + (Board.BoardHeight - y - 1) * self.squareHeight(),
      self.curPiece.shape())

第二步是畫出更在下落的方塊。

elif key == Qt.Key_Right:
  self.tryMove(self.curPiece, self.curX + 1, self.curY)

在keyPressEvent()方法獲得用戶按下的按鍵。如果按下的是右方向鍵，就嘗試把方塊向右移動，說嘗試是因?yàn)橛锌赡艿竭吔绮荒芤苿?dòng)了。

elif key == Qt.Key_Up:
  self.tryMove(self.curPiece.rotateLeft(), self.curX, self.curY)

上方向鍵是把方塊向左旋轉一下

elif key == Qt.Key_Space:
  self.dropDown()

空格鍵會直接把方塊放到底部

elif key == Qt.Key_D:
  self.oneLineDown()

D鍵是加速一次下落速度。

def tryMove(self, newPiece, newX, newY):

  for i in range(4):

    x = newX + newPiece.x(i)
    y = newY - newPiece.y(i)

    if x < 0 or x >= Board.BoardWidth or y < 0 or y >= Board.BoardHeight:
      return False

    if self.shapeAt(x, y) != Tetrominoe.NoShape:
      return False

  self.curPiece = newPiece
  self.curX = newX
  self.curY = newY
  self.update()
  return True

tryMove()是嘗試移動方塊的方法。如果方塊已經到達board的邊緣或者遇到了其他方塊，就返回False。否則就把方塊下落到想要

def timerEvent(self, event):

  if event.timerId() == self.timer.timerId():

    if self.isWaitingAfterLine:
      self.isWaitingAfterLine = False
      self.newPiece()
    else:
      self.oneLineDown()

  else:
    super(Board, self).timerEvent(event)

在計時器事件里，要么是等一個方塊下落完之后創建一個新的方塊，要么是讓一個方塊直接落到底（move a falling piece one line down）。

def clearBoard(self):

  for i in range(Board.BoardHeight * Board.BoardWidth):
    self.board.append(Tetrominoe.NoShape)

clearBoard()方法通過Tetrominoe.NoShape清空broad。

def removeFullLines(self):

  numFullLines = 0
  rowsToRemove = []

  for i in range(Board.BoardHeight):

    n = 0
    for j in range(Board.BoardWidth):
      if not self.shapeAt(j, i) == Tetrominoe.NoShape:
        n = n + 1

    if n == 10:
      rowsToRemove.append(i)

  rowsToRemove.reverse()


  for m in rowsToRemove:

    for k in range(m, Board.BoardHeight):
      for l in range(Board.BoardWidth):
          self.setShapeAt(l, k, self.shapeAt(l, k + 1))

  numFullLines = numFullLines + len(rowsToRemove)
 ...

如果方塊碰到了底部，就調用removeFullLines()方法，找到所有能消除的行消除它們。消除的具體動作就是把符合條件的行消除掉之后，再把它上面的行下降一行。注意移除滿行的動作是倒著來的，因?yàn)槲覀兪前凑罩亓?lái)表現游戲的，如果不這樣就有可能出現有些方塊浮在空中的現象。

def newPiece(self):

  self.curPiece = Shape()
  self.curPiece.setRandomShape()
  self.curX = Board.BoardWidth // 2 + 1
  self.curY = Board.BoardHeight - 1 + self.curPiece.minY()

  if not self.tryMove(self.curPiece, self.curX, self.curY):

    self.curPiece.setShape(Tetrominoe.NoShape)
    self.timer.stop()
    self.isStarted = False
    self.msg2Statusbar.emit("Game over")

newPiece()方法是用來創建形狀隨機的方塊。如果隨機的方塊不能正確的出現在預設的位置，游戲結束。

class Tetrominoe(object):

  NoShape = 0
  ZShape = 1
  SShape = 2
  LineShape = 3
  TShape = 4
  SquareShape = 5
  LShape = 6
  MirroredLShape = 7

Tetrominoe類保存了所有方塊的形狀。我們還定義了一個NoShape的空形狀。

Shape類保存類方塊內部的信息。

class Shape(object):

  coordsTable = (
    ((0, 0),   (0, 0),   (0, 0),   (0, 0)),
    ((0, -1),  (0, 0),   (-1, 0),  (-1, 1)),
    ...
  )
...

coordsTable元組保存了所有的方塊形狀的組成。是一個構成方塊的坐標模版。

self.coords = [[0,0] for i in range(4)]

上面創建了一個新的空坐標數組，這個數組將用來保存方塊的坐標。

坐標系示意圖：

上面的圖片可以幫助我們更好的理解坐標值的意義。比如元組(0, -1), (0, 0), (-1, 0), (-1, -1)代表了一個Z形狀的方塊。這個圖表就描繪了這個形狀。

def rotateLeft(self):

  if self.pieceShape == Tetrominoe.SquareShape:
    return self

  result = Shape()
  result.pieceShape = self.pieceShape

  for i in range(4):

    result.setX(i, self.y(i))
    result.setY(i, -self.x(i))

  return result

rotateLeft()方法向右旋轉一個方塊。正方形的方塊就沒必要旋轉，就直接返回了。其他的是返回一個新的，能表示這個形狀旋轉了的坐標。

程序展示：
