golang 熔斷限流降級實踐

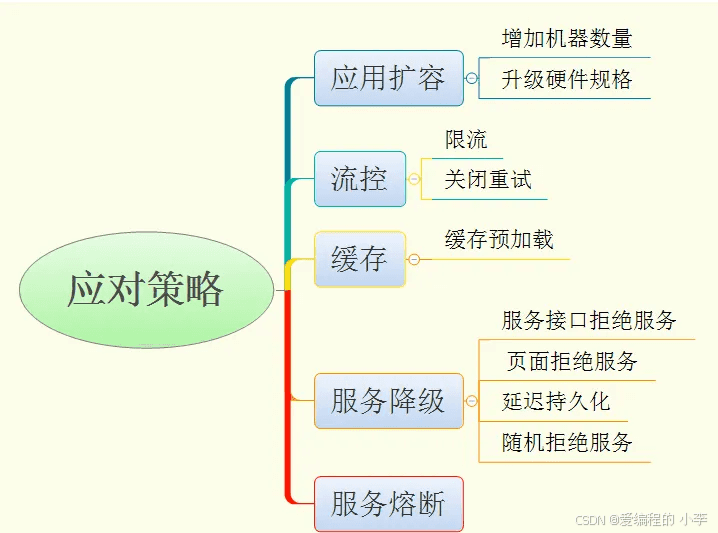

限流 - 2k 但是我的服務能力只有1k,所以這個時候多出來的流量怎么辦: 1. 拒絕 2. 排隊等待。用戶體驗不太好: 當前訪問用戶過多,請稍后重試和你的服務直接掛了
用戶體驗降級了 - 原本是訪問流暢,下單流暢 -> 當前訪問用戶過多,請稍后重試
熔斷 - 比如A服務訪問B服務,這個時候B服務很慢 - B服務壓力過大,導致了出現了不少請求錯誤,調用方很容易出現一個問題: 每次調用都超時 2k,結果這個時候數據庫出現了問題, 超時重試 - 網絡 2k的流量突然變成了3k。這讓原本就滿負荷的b服務雪上加霜,如果這個時候調用方有一種機制:比如說 1. 發現了大部分請求很慢 - 50%請求都很慢, 2. 發現我的請求有50%都錯誤了 3. 錯誤數量很多,比如1s出現了20個錯誤 。上述三種情況出現,在一段時間內不發給B服務,直接拒絕。一段時間之后再發送。以此來緩解B服務的壓力,避免B服務掛掉的可能。

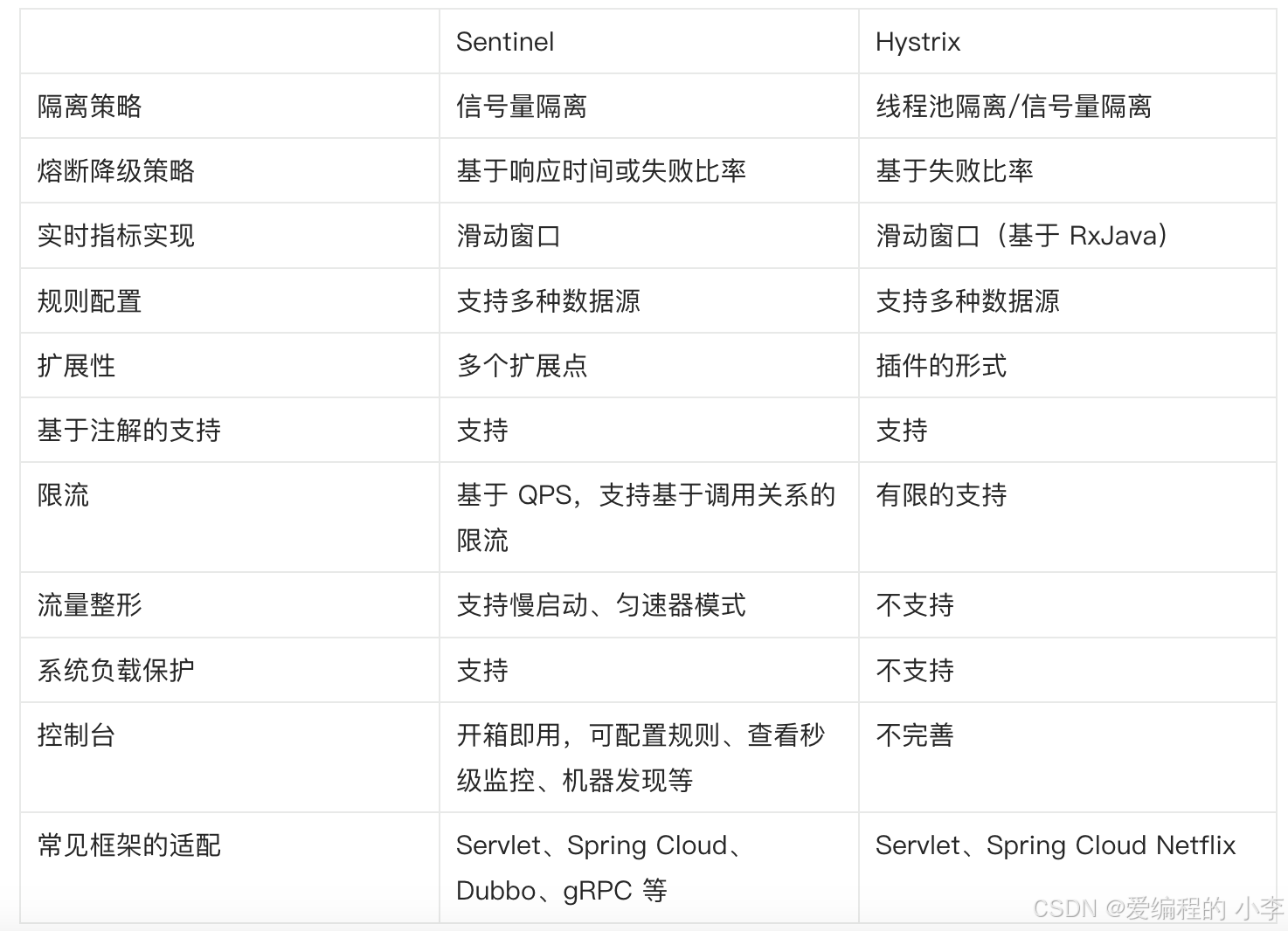

技術選型
限流
QPS限流
package main import ( "fmt" "log" "math/rand" "time" sentinel "github.com/alibaba/sentinel-golang/api" "github.com/alibaba/sentinel-golang/core/base" "github.com/alibaba/sentinel-golang/core/flow" ) const resName = "example-flow-qps-resource" func main() { //初始化sentinel err := sentinel.InitDefault() if err != nil { log.Fatal(err) } //配置限流規則 _, err = flow.LoadRules([]*flow.Rule{ { Resource: resName, TokenCalculateStrategy: flow.Direct, ControlBehavior: flow.Reject, Threshold: 10, StatIntervalInMs: 1000, }, }) if err != nil { log.Fatalf("Unexpected error: %+v", err) return } ch := make(chan struct{}) for i := 0; i < 10; i++ { go func() { for { e, b := sentinel.Entry(resName, sentinel.WithTrafficType(base.Inbound)) if b != nil { // Blocked. We could get the block reason from the BlockError. fmt.Println("被限流") time.Sleep(time.Duration(rand.Uint64()%10) * time.Millisecond) } else { // Passed, wrap the logic here. fmt.Println("成功") time.Sleep(time.Duration(rand.Uint64()%10) * time.Millisecond) // Be sure the entry is exited finally. e.Exit() } } }() } // Simulate a scenario in which flow rules are updated concurrently go func() { time.Sleep(time.Second * 10) _, err = flow.LoadRules([]*flow.Rule{ { Resource: resName, TokenCalculateStrategy: flow.Direct, ControlBehavior: flow.Reject, Threshold: 80, StatIntervalInMs: 1000, }, }) if err != nil { log.Fatalf("Unexpected error: %+v", err) return } }() <-ch }
warmup限流

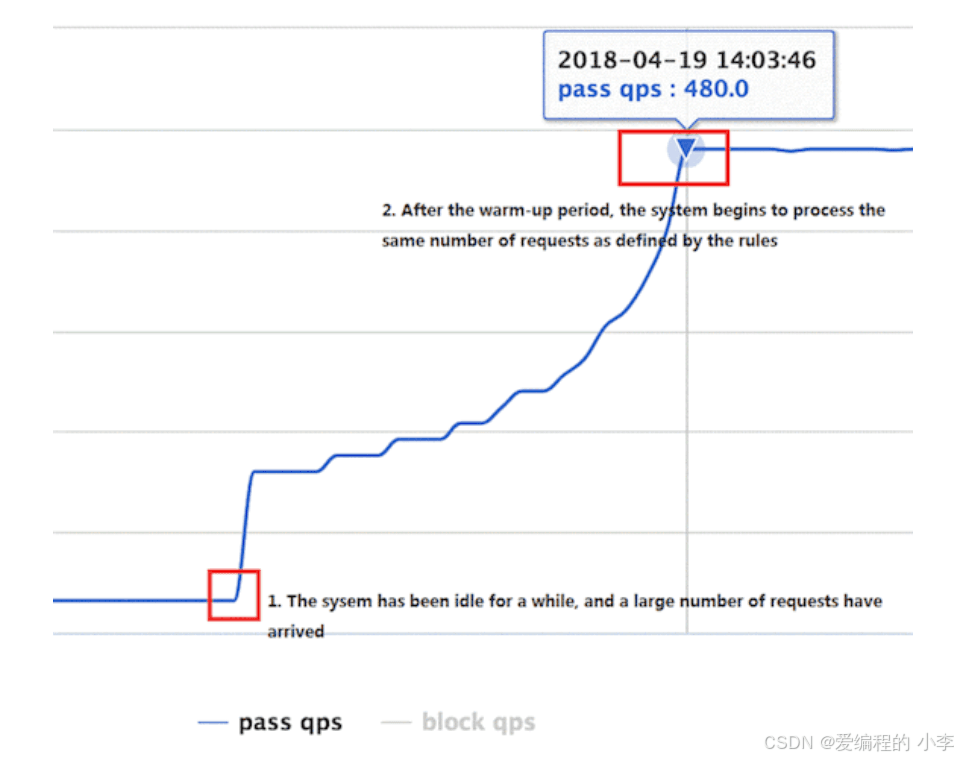

WarmUp 方式,即預熱/冷啟動方式。當系統長期處于低水位的情況下,當流量突然增加時,直接把系統拉升到高水位可能瞬間把系統壓垮。通過"冷啟動",讓通過的流量緩慢增加,在一定時間內逐漸增加到閾值上限,給冷系統一個預熱的時間,避免冷系統被壓垮。這塊設計和 Java 類似。通常冷啟動的過程系統允許通過的 QPS 曲線如下圖所示:
package main import ( "fmt" "log" "math/rand" "sync" "time" sentinel "github.com/alibaba/sentinel-golang/api" "github.com/alibaba/sentinel-golang/core/base" "github.com/alibaba/sentinel-golang/core/flow" ) const resName = "example-flow-qps-resource" func main() { //初始化sentinel err := sentinel.InitDefault() if err != nil { log.Fatal(err) } //配置限流規則 _, err = flow.LoadRules([]*flow.Rule{ { Resource: resName, TokenCalculateStrategy: flow.WarmUp, //冷啟動策略 ControlBehavior: flow.Reject, //直接拒絕 Threshold: 10, //1s10個并發 WarmUpPeriodSec: 30, //60s預熱 }, }) if err != nil { log.Fatalf("Unexpected error: %+v", err) return } var mutex sync.Mutex lastSecond := time.Now().Second() total := 0 totalRestrict := 0 totalPass := 0 ch := make(chan struct{}) for i := 0; i < 10; i++ { go func() { for { e, b := sentinel.Entry(resName, sentinel.WithTrafficType(base.Inbound)) if b != nil { // Blocked. We could get the block reason from the BlockError. mutex.Lock() totalRestrict++ mutex.Unlock() time.Sleep(time.Duration(rand.Uint64()%10) * time.Millisecond) } else { // Passed, wrap the logic here. mutex.Lock() totalPass++ mutex.Unlock() time.Sleep(time.Duration(rand.Uint64()%10) * time.Millisecond) // Be sure the entry is exited finally. e.Exit() } mutex.Lock() total++ mutex.Unlock() if time.Now().Second() != lastSecond { mutex.Lock() lastSecond = time.Now().Second() fmt.Println("total=", total, ",totalRestrict=", totalRestrict, ",totalPass=", totalPass) total = 0 totalRestrict = 0 totalPass = 0 mutex.Unlock() } } }() } <-ch }

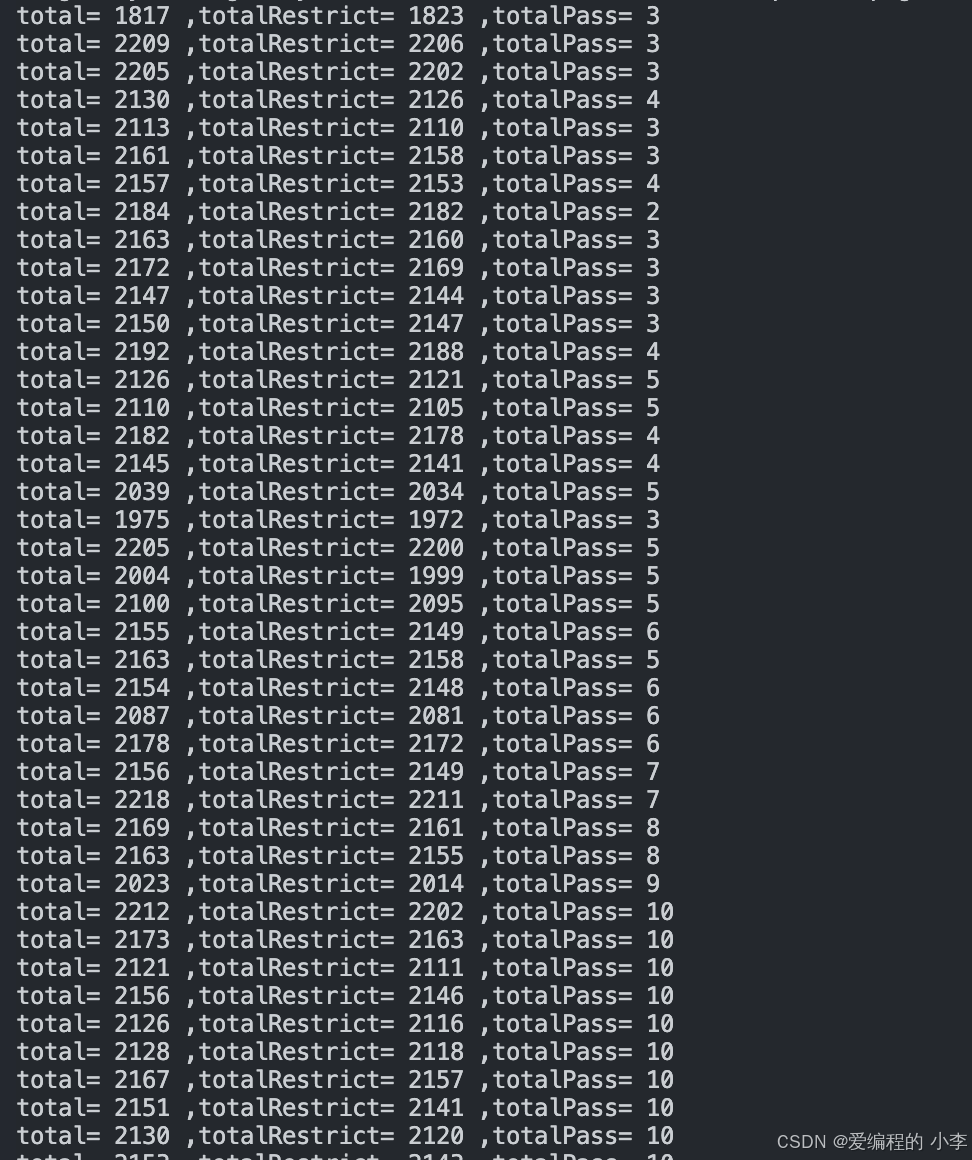

趨勢逐漸增加,一直到達每秒10個左右
Throttling策略
計算時間間隔,每過了時間間隔才允許通過
package main import ( "fmt" "log" "math/rand" "time" sentinel "github.com/alibaba/sentinel-golang/api" "github.com/alibaba/sentinel-golang/core/base" "github.com/alibaba/sentinel-golang/core/flow" ) const resName = "example-flow-qps-resource" func main() { //初始化sentinel err := sentinel.InitDefault() if err != nil { log.Fatal(err) } //配置限流規則 _, err = flow.LoadRules([]*flow.Rule{ { Resource: resName, TokenCalculateStrategy: flow.Direct, ControlBehavior: flow.Throttling, Threshold: 10, StatIntervalInMs: 1000, }, }) if err != nil { log.Fatalf("Unexpected error: %+v", err) return } ch := make(chan struct{}) for i := 0; i < 10; i++ { go func() { for { e, b := sentinel.Entry(resName, sentinel.WithTrafficType(base.Inbound)) if b != nil { // Blocked. We could get the block reason from the BlockError. fmt.Println("被限流") time.Sleep(time.Duration(rand.Uint64()%10) * time.Millisecond) } else { // Passed, wrap the logic here. fmt.Println("成功") time.Sleep(time.Duration(rand.Uint64()%10) * time.Millisecond) // Be sure the entry is exited finally. e.Exit() } } }() } // Simulate a scenario in which flow rules are updated concurrently go func() { time.Sleep(time.Second * 10) _, err = flow.LoadRules([]*flow.Rule{ { Resource: resName, TokenCalculateStrategy: flow.Direct, ControlBehavior: flow.Reject, Threshold: 80, StatIntervalInMs: 1000, }, }) if err != nil { log.Fatalf("Unexpected error: %+v", err) return } }() <-ch }

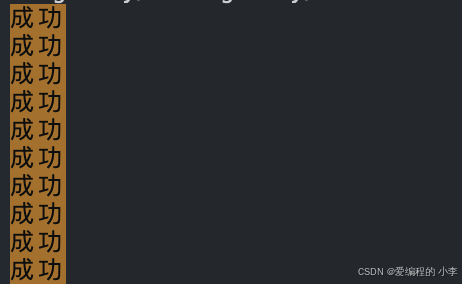

package main import ( "fmt" "log" "time" sentinel "github.com/alibaba/sentinel-golang/api" "github.com/alibaba/sentinel-golang/core/base" "github.com/alibaba/sentinel-golang/core/flow" ) const resName = "example-flow-qps-resource" func main() { //初始化sentinel err := sentinel.InitDefault() if err != nil { log.Fatal(err) } //配置限流規則 _, err = flow.LoadRules([]*flow.Rule{ { Resource: resName, TokenCalculateStrategy: flow.Direct, ControlBehavior: flow.Throttling, Threshold: 10, StatIntervalInMs: 1000, }, }) if err != nil { log.Fatalf("Unexpected error: %+v", err) return } for i := 0; i < 10; i++ { e, b := sentinel.Entry(resName, sentinel.WithTrafficType(base.Inbound)) if b != nil { // Blocked. We could get the block reason from the BlockError. fmt.Println("被限流") } else { // Passed, wrap the logic here. fmt.Println("成功") // Be sure the entry is exited finally. e.Exit() } time.Sleep(100 * time.Millisecond) } }
熔斷

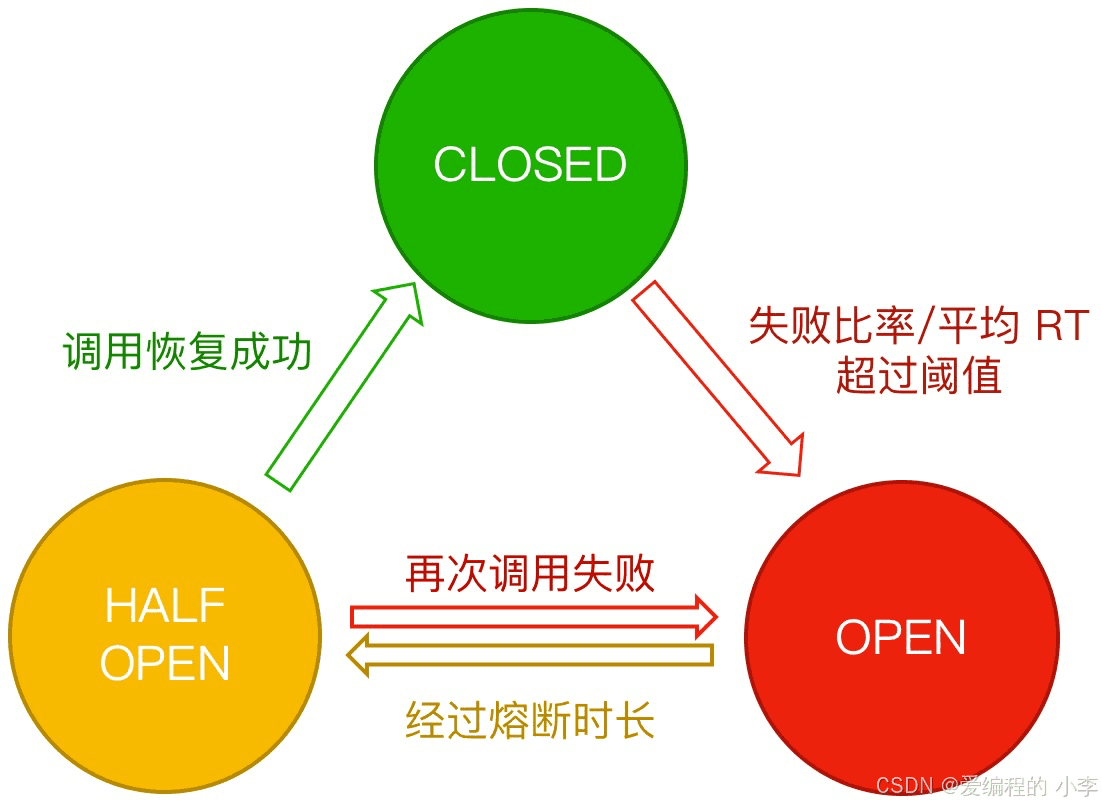

Sentinel 熔斷降級基于熔斷器模式 (circuit breaker pattern) 實現。熔斷器內部維護了一個熔斷器的狀態機,狀態機的轉換關系如下圖所示:
熔斷器有三種狀態:
1.Closed 狀態:也是初始狀態,該狀態下,熔斷器會保持閉合,對資源的訪問直接通過熔斷器的檢查。
2.Open 狀態:斷開狀態,熔斷器處于開啟狀態,對資源的訪問會被切斷。
3.Half-Open 狀態:半開狀態,該狀態下除了探測流量,其余對資源的訪問也會被切斷。探測流量指熔斷器處于半開狀態時,會周期性的允許一定數目的探測請求通過,如果探測請求能夠正常的返回,代表探測成功,此時熔斷器會重置狀態到 Closed 狀態,結束熔斷;如果探測失敗,則回滾到 Open 狀態。
這三種狀態之間的轉換關系這里做一個更加清晰的解釋:
1.初始狀態下,熔斷器處于 Closed 狀態。如果基于熔斷器的統計數據表明當前資源觸發了設定的閾值,那么熔斷器會切換狀態到 Open 狀態;
2.Open 狀態即代表熔斷狀態,所有請求都會直接被拒絕。熔斷器規則中會配置一個熔斷超時重試的時間,經過熔斷超時重試時長后熔斷器會將狀態置為 Half-Open 狀態,從而進行探測機制;
3.處于 Half-Open 狀態的熔斷器會周期性去做探測。
Sentinel 提供了監聽器去監聽熔斷器狀態機的三種狀態的轉換,方便用戶去自定義擴展:
熔斷策略
Sentinel 熔斷器的三種熔斷策略都支持靜默期 (規則中通過MinRequestAmount字段表示)。靜默期是指一個最小的靜默請求數,在一個統計周期內,如果對資源的請求數小于設置的靜默數,那么熔斷器將不會基于其統計值去更改熔斷器的狀態。靜默期的設計理由也很簡單,舉個例子,假設在一個統計周期剛剛開始時候,第 1 個請求碰巧是個慢請求,這個時候這個時候的慢調用比例就會是 100%,很明顯是不合理,所以存在一定的巧合性。所以靜默期提高了熔斷器的精準性以及降低誤判可能性。
Sentinel 支持以下幾種熔斷策略:
慢調用比例策略 (SlowRequestRatio)
Sentinel 的熔斷器不在靜默期,并且慢調用的比例大于設置的閾值,則接下來的熔斷周期內對資源的訪問會自動地被熔斷。該策略下需要設置允許的調用 RT 臨界值(即最大的響應時間),對該資源訪問的響應時間大于該閾值則統計為慢調用。
package main import ( "errors" "fmt" "log" "math/rand" "time" sentinel "github.com/alibaba/sentinel-golang/api" "github.com/alibaba/sentinel-golang/core/circuitbreaker" "github.com/alibaba/sentinel-golang/core/config" "github.com/alibaba/sentinel-golang/logging" "github.com/alibaba/sentinel-golang/util" ) type stateChangeTestListener struct { } func (s *stateChangeTestListener) OnTransformToClosed(prev circuitbreaker.State, rule circuitbreaker.Rule) { fmt.Printf("rule.steategy: %+v, From %s to Closed, time: %d\n", rule.Strategy, prev.String(), util.CurrentTimeMillis()) } func (s *stateChangeTestListener) OnTransformToOpen(prev circuitbreaker.State, rule circuitbreaker.Rule, snapshot interface{}) { fmt.Printf("rule.steategy: %+v, From %s to Open, snapshot: %.2f, time: %d\n", rule.Strategy, prev.String(), snapshot, util.CurrentTimeMillis()) } func (s *stateChangeTestListener) OnTransformToHalfOpen(prev circuitbreaker.State, rule circuitbreaker.Rule) { fmt.Printf("rule.steategy: %+v, From %s to Half-Open, time: %d\n", rule.Strategy, prev.String(), util.CurrentTimeMillis()) } func main() { conf := config.NewDefaultConfig() // for testing, logging output to console conf.Sentinel.Log.Logger = logging.NewConsoleLogger() err := sentinel.InitWithConfig(conf) if err != nil { log.Fatal(err) } ch := make(chan struct{}) // Register a state change listener so that we could observer the state change of the internal circuit breaker. circuitbreaker.RegisterStateChangeListeners(&stateChangeTestListener{}) _, err = circuitbreaker.LoadRules([]*circuitbreaker.Rule{ // Statistic time span=5s, recoveryTimeout=3s, slowRtUpperBound=50ms, maxSlowRequestRatio=50% { Resource: "abc", Strategy: circuitbreaker.SlowRequestRatio, RetryTimeoutMs: 3000, MinRequestAmount: 10, StatIntervalMs: 5000, StatSlidingWindowBucketCount: 10, MaxAllowedRtMs: 50, //大于50ms是慢查詢 Threshold: 0.5, }, }) if err != nil { log.Fatal(err) } logging.Info("[CircuitBreaker SlowRtRatio] Sentinel Go circuit breaking demo is running. You may see the pass/block metric in the metric log.") go func() { for { e, b := sentinel.Entry("abc") if b != nil { // g1 blocked time.Sleep(time.Duration(rand.Uint64()%20) * time.Millisecond) } else { if rand.Uint64()%20 > 9 { // Record current invocation as error. sentinel.TraceError(e, errors.New("biz error")) } // g1 passed time.Sleep(time.Duration(rand.Uint64()%80+10) * time.Millisecond) e.Exit() } } }() go func() { for { e, b := sentinel.Entry("abc") if b != nil { // g2 blocked time.Sleep(time.Duration(rand.Uint64()%20) * time.Millisecond) } else { // g2 passed time.Sleep(time.Duration(rand.Uint64()%80+10) * time.Millisecond) e.Exit() } } }() <-ch }
錯誤比例策略 (ErrorRatio)
Sentinel 的熔斷器不在靜默期,并且在統計周期內資源請求訪問異常的比例大于設定的閾值,則接下來的熔斷周期內對資源的訪問會自動地被熔斷。
package main import ( "errors" "fmt" "log" "math/rand" "time" sentinel "github.com/alibaba/sentinel-golang/api" "github.com/alibaba/sentinel-golang/core/circuitbreaker" "github.com/alibaba/sentinel-golang/core/config" "github.com/alibaba/sentinel-golang/logging" "github.com/alibaba/sentinel-golang/util" ) type stateChangeTestListener struct{} func (s *stateChangeTestListener) OnTransformToClosed(prev circuitbreaker.State, rule circuitbreaker.Rule) { fmt.Printf("rule.steategy: %+v, From %s to Closed, time: %d\n", rule.Strategy, prev.String(), util.CurrentTimeMillis()) } func (s *stateChangeTestListener) OnTransformToOpen(prev circuitbreaker.State, rule circuitbreaker.Rule, snapshot interface{}) { fmt.Printf("rule.steategy: %+v, From %s to Open, snapshot: %.2f, time: %d\n", rule.Strategy, prev.String(), snapshot, util.CurrentTimeMillis()) } func (s *stateChangeTestListener) OnTransformToHalfOpen(prev circuitbreaker.State, rule circuitbreaker.Rule) { fmt.Printf("rule.steategy: %+v, From %s to Half-Open, time: %d\n", rule.Strategy, prev.String(), util.CurrentTimeMillis()) } func main() { total := 0 totalPass := 0 totalBlock := 0 totalErr := 0 conf := config.NewDefaultConfig() // for testing, logging output to console conf.Sentinel.Log.Logger = logging.NewConsoleLogger() err := sentinel.InitWithConfig(conf) if err != nil { log.Fatal(err) } ch := make(chan struct{}) // Register a state change listener so that we could observer the state change of the internal circuit breaker. circuitbreaker.RegisterStateChangeListeners(&stateChangeTestListener{}) _, err = circuitbreaker.LoadRules([]*circuitbreaker.Rule{ // Statistic time span=5s, recoveryTimeout=3s, maxErrorCount=50 { Resource: "abc", Strategy: circuitbreaker.ErrorRatio, RetryTimeoutMs: 3000, MinRequestAmount: 10, StatIntervalMs: 5000, StatSlidingWindowBucketCount: 10, Threshold: 0.4, }, }) if err != nil { log.Fatal(err) } logging.Info("[CircuitBreaker ErrorCount] Sentinel Go circuit breaking demo is running. You may see the pass/block metric in the metric log.") go func() { for { total++ e, b := sentinel.Entry("abc") if b != nil { // g1 blocked totalBlock++ fmt.Println("熔斷") time.Sleep(time.Duration(rand.Uint64()%20) * time.Millisecond) } else { if rand.Uint64()%20 > 9 { totalErr++ // Record current invocation as error. sentinel.TraceError(e, errors.New("biz error")) } totalPass++ // g1 passed time.Sleep(time.Duration(rand.Uint64()%80+10) * time.Millisecond) e.Exit() } } }() go func() { for { e, b := sentinel.Entry("abc") if b != nil { // g2 blocked totalBlock++ fmt.Println("寫成熔斷了") time.Sleep(time.Duration(rand.Uint64()%20) * time.Millisecond) } else { // g2 passed totalPass++ time.Sleep(time.Duration(rand.Uint64()%80) * time.Millisecond) e.Exit() } } }() go func() { for { time.Sleep(time.Second) fmt.Println(float64(totalErr) / float64(total)) } }() <-ch }
錯誤計數策略 (ErrorCount)
Sentinel 的熔斷器不在靜默期,并且在統計周期內資源請求訪問異常數大于設定的閾值,則接下來的熔斷周期內對資源的訪問會自動地被熔斷。
注意:這里的錯誤比例熔斷和錯誤計數熔斷指的業務返回錯誤的比例或則計數。也就是說,如果規則指定熔斷器策略采用錯誤比例或則錯誤計數,那么為了統計錯誤比例或錯誤計數,需要調用API: api.TraceError(entry, err) 埋點每個請求的業務異常。
package main import ( "errors" "fmt" "log" "math/rand" "time" sentinel "github.com/alibaba/sentinel-golang/api" "github.com/alibaba/sentinel-golang/core/circuitbreaker" "github.com/alibaba/sentinel-golang/core/config" "github.com/alibaba/sentinel-golang/logging" "github.com/alibaba/sentinel-golang/util" ) type stateChangeTestListener struct { } func (s *stateChangeTestListener) OnTransformToClosed(prev circuitbreaker.State, rule circuitbreaker.Rule) { fmt.Printf("rule.steategy: %+v, From %s to Closed, time: %d\n", rule.Strategy, prev.String(), util.CurrentTimeMillis()) } func (s *stateChangeTestListener) OnTransformToOpen(prev circuitbreaker.State, rule circuitbreaker.Rule, snapshot interface{}) { fmt.Printf("rule.steategy: %+v, From %s to Open, snapshot: %d, time: %d\n", rule.Strategy, prev.String(), snapshot, util.CurrentTimeMillis()) } func (s *stateChangeTestListener) OnTransformToHalfOpen(prev circuitbreaker.State, rule circuitbreaker.Rule) { fmt.Printf("rule.steategy: %+v, From %s to Half-Open, time: %d\n", rule.Strategy, prev.String(), util.CurrentTimeMillis()) } func main() { total := 0 totalPass := 0 totalBlock := 0 totalErr := 0 conf := config.NewDefaultConfig() // for testing, logging output to console conf.Sentinel.Log.Logger = logging.NewConsoleLogger() err := sentinel.InitWithConfig(conf) if err != nil { log.Fatal(err) } ch := make(chan struct{}) // Register a state change listener so that we could observer the state change of the internal circuit breaker. circuitbreaker.RegisterStateChangeListeners(&stateChangeTestListener{}) _, err = circuitbreaker.LoadRules([]*circuitbreaker.Rule{ // Statistic time span=5s, recoveryTimeout=3s, maxErrorCount=50 { Resource: "abc", Strategy: circuitbreaker.ErrorCount, RetryTimeoutMs: 3000, MinRequestAmount: 10, StatIntervalMs: 5000, StatSlidingWindowBucketCount: 10, Threshold: 50, }, }) if err != nil { log.Fatal(err) } logging.Info("[CircuitBreaker ErrorCount] Sentinel Go circuit breaking demo is running. You may see the pass/block metric in the metric log.") go func() { for { total++ e, b := sentinel.Entry("abc") if b != nil { // g1 blocked totalBlock++ fmt.Println("熔斷") time.Sleep(time.Duration(rand.Uint64()%20) * time.Millisecond) } else { if rand.Uint64()%20 > 9 { totalErr++ // Record current invocation as error. sentinel.TraceError(e, errors.New("biz error")) } totalPass++ // g1 passed time.Sleep(time.Duration(rand.Uint64()%80+10) * time.Millisecond) e.Exit() } } }() go func() { for { e, b := sentinel.Entry("abc") if b != nil { // g2 blocked totalBlock++ fmt.Println("寫成熔斷了") time.Sleep(time.Duration(rand.Uint64()%20) * time.Millisecond) } else { // g2 passed totalPass++ time.Sleep(time.Duration(rand.Uint64()%80) * time.Millisecond) e.Exit() } } }() go func() { for { time.Sleep(time.Second) fmt.Println(totalErr) } }() <-ch }
gin集成sentinel限流
初始化
package initialize import ( sentinel "github.com/alibaba/sentinel-golang/api" "github.com/alibaba/sentinel-golang/core/flow" "go.uber.org/zap" ) func InitSentinel() { //初始化sentinel err := sentinel.InitDefault() if err != nil { zap.S().Fatal(err) } //配置限流規則 //這種配置從nacos讀取 _, err = flow.LoadRules([]*flow.Rule{ { Resource: "test", TokenCalculateStrategy: flow.Direct, ControlBehavior: flow.Reject, Threshold: 10, StatIntervalInMs: 1000, }, }) if err != nil { zap.S().Fatalf("Unexpected error: %+v", err) return } }
調用
initialize.InitSentinel()
限流
e, b := sentinel.Entry("goods-list", sentinel.WithTrafficType(base.Inbound)) if b != nil { ctx.JSON(http.StatusTooManyRequests, gin.H{ "msg": "請求過于頻繁,請稍后重試", }) return } r, err := global.GoodsSrvClient.GoodsList(context.WithValue(context.Background(), "ginContext", ctx), request) if err != nil { zap.S().Errorw("[List] 查詢 【商品列表】失敗") return } e.Exit()
