Go數據結構之映射map方式

 更新時間:2025年06月11日 09:00:13   作者:大P哥阿豪
這篇文章主要介紹了Go數據結構之映射map方式,具有很好的參考價值,希望對大家有所幫助,如有錯誤或未考慮完全的地方,望不吝賜教

Map作為Go原生支持的另一個主要的數據結構,其使用頻繁程度與切片有過之而無不及。用一句話描述map:存儲鍵-值對映射關系的無序數據結構,保證鍵的唯一性但不保證并發操作安全。

本文將介紹map的基本使用以及go 1.16版本其底層實現。

1 map的使用

1.1 map基本使用

聲明/初始化,一般有如下三種方式,

  • 使用var聲明一個map變量,需要指定鍵值對分別的類型,這種方式僅僅只是聲明,返回的是一個nil map,既沒有分配內存,無法對其進行寫入操作。如果要對其進行寫入操作,則還需要為其分配內存。
  • 比較常用的是直接使用make初始化,在初始化map類型時,可以傳一個容量(通常是不傳這個參數,因為map底層有自動擴容機制,且無法準確預估m(xù)ap所需的容量)。
  • 第三種方式就是直接在定義的同時,對map進行寫入操作,這種方式適用于確定部分需要寫入map的場景
// 聲明一個map變量,鍵是string類型,值是int類型
// 但此時m還是一個nil map,無法對其進行寫入
var m map[string]int
m["1"] = 1 // 報錯,nil map無法寫入

m = make(map[string]int) // 使用make為map分配內存,此時可以正常寫入


// 可以將聲明和分配內存合二為一,直接使用make函數為map分配內存
// make函數第一個參數是map的類型,第二個參數可選,表示map的容量大小
m1 := make(map[string]int)

// 第三種方式就是在定義的時候,連帶著給map進行賦值
m2 := map[string]int{
    "1": 1,
    "2": 2,
}

賦值,其實就比較簡單,直接將鍵放入中括號,對應的值放在等號右邊即可,如果鍵之間存在,則實現更新;不存在,則實現插入。這里需要特別注意的是

  • 對于nil map無法進行賦值操作,如果對nil map進行賦值,則會panic。
  • map中的value是不可尋址的,無法直接通過map值進行更新操作,但有兩種例外,1)value為int類型,編譯器會通過語法糖進行直接更新;2)value為指針類型時,也能直接通過map值進行更新操作。
m := make(map[string]int)
m["1"] = 1

type Person struct {
	name string
	age  int
}

m1 := map[string]Person{}
m1["Tom"].age++ // 錯誤,因為map的值是無法尋址的,這種情況需要接受舊值,將修改完后的值重新賦值

m2 := map[string]*Person{}
m2["Tom"].age++ // 正確,這種情況下沒有改變map中的value,而是通過指針找到對應存儲的值進行修改
  • 查找,map對于查詢的處理原則就是,如果key不存在,則返回value對應的零值(nil map也能進行查找,只是對于所有的查詢都返回value類型零值)。如果需要判斷key是否存在,則推薦使用v, ok := m["1"]的寫法,ok為true表示key存在于map中。
var m map[string]int
fmt.Println(m["1"]) // nil map可以進行查找,返回的是value的默認零值

// 如果需要判斷key是否存在于map中,則可以使用如下寫法
if _, ok := m["1"]; ok {
    fmt.Println("key存在")
} else {
    fmt.Println("key不存在")
}
  • 刪除,主要通過調用delete函數實現map中鍵值對的刪除操作,對于nil map也能執行刪除操作,如果待刪除的key不存在,則不做任何處理。
var m map[string]int
delete(m ,"1")
  • 遍歷,只能通過for range進行map的遍歷操作,而且遍歷是無序的,每次遍歷結果都不一樣,這樣做:一是為了讓使用者不依賴于map的遍歷順序,二也是與map的底層實現有很大關系。實際開發過程中,如果要確定的遍歷順序,往往需要借助切片保存順序,然后通過遍歷切片去map中取值。
m := map[string]int{
    "1": 1,
    "2": 2,
}

// 無序遍歷,每次遍歷的順序都不一樣
for k, v := range m {
    fmt.Println(k, v)
}

1.2 map注意事項

map是一種引用傳遞類型,其作為函數參數進行傳遞時,函數內部修改會直接影響調用者。

map遍歷是無序的,即每次遍歷的結果都不一樣,可能是Go的設計者不想使用者依賴與map的遍歷順序性,個人認為這個也是與其底層實現有關,如果要保證有序,則需要維護額外的數據結構,與Go極簡的設計原則不符。

map的key必須是支持==、!=運算的數據類型(map的key可以為float類型、chan類型自定義結構體,但不能是func、map、slice,value則可以為任意數據類型)。

因內存訪問安全和哈希算法等緣故,字典被設置成“not addressable”,故不能直接修改value的值(實際上就是不允許直接修改map中的值)。如果需要對value進行修改,一般將需要將整個value返回,修改后再重新賦值,或直接將value設置成指針類型(指針能修改的原因是,通過指針修改原結構體中的數據,但沒有修改map中保存的數據)。但是,如果map的value為int,那么可以直接修改value,例如:

m := map[string]int{"test":1}

m["test"]++  // 實際上是語法糖
/*
temp := m["test"]
temp += 1
m["test"] = temp
*/

map并不是多線程讀寫安全的,在多線程開發中使用map需要特別小心,解決此問題一般可以使用sync.RWMutex進行保護或直接使用sync.Map。

訪問不存在的主鍵,返回對應key的零值,并不會panic。刪除不存在的鍵值,也不會引發錯誤。

可對nil的字典進行讀、刪除操作,但是寫會引發panic!即,從nil的字典中,讀出來的都是value的默認值;對nil字典進行刪除操作,實際不會產生任何效果。

2 map的底層數據結構

在Go 1.16版本中,使用了hash table來實現map(Go 1.24版本已經使用Swiss table作為map的底層實現,后續有空研究下),其底層實現主要借助hmap、bmap,下面詳細介紹下這兩個數據。

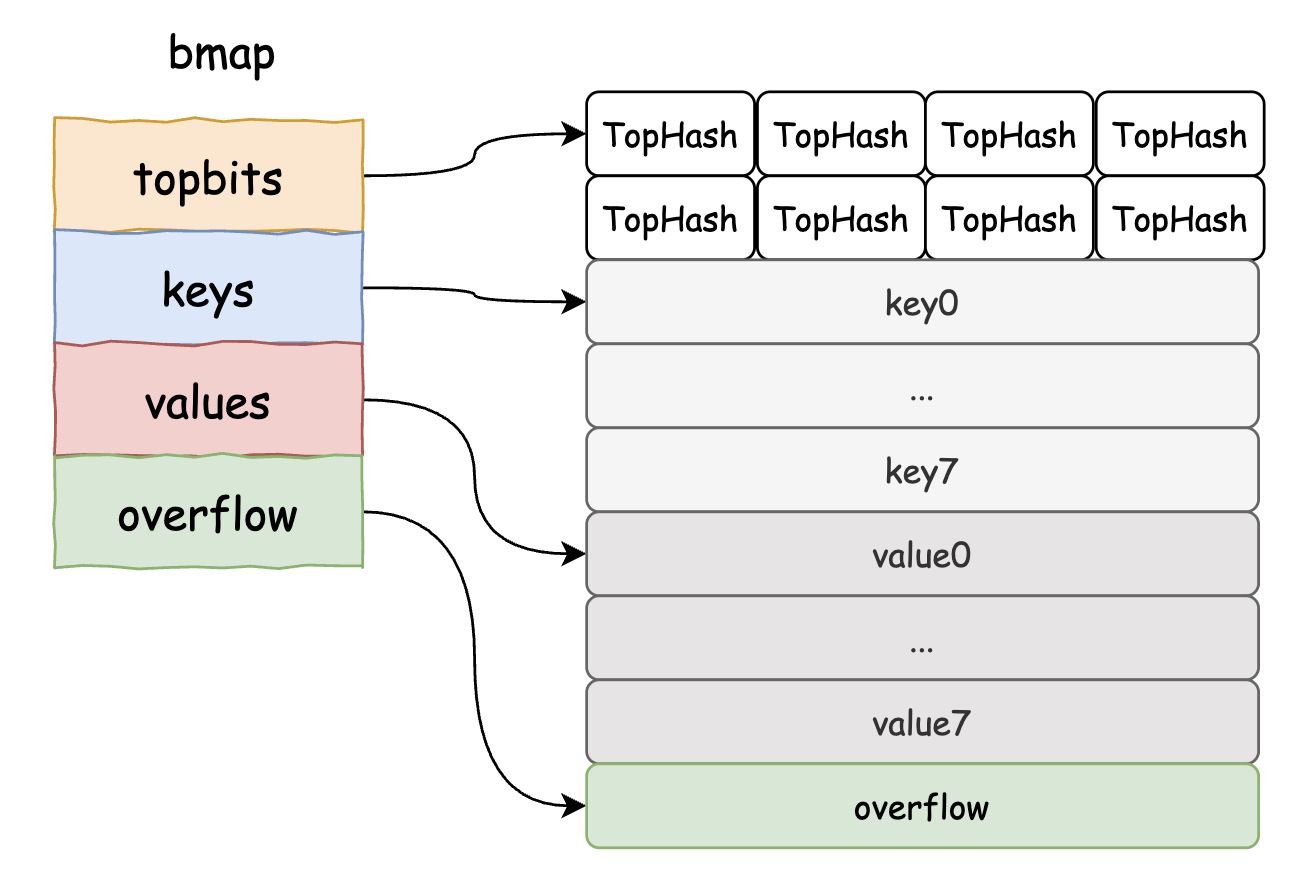

2.1 bmap

bmap是Go map中bucket的抽象,為提高存儲效率,每一個 bmap 都能存儲 8 個鍵值對。

當哈希表中存儲的數據過多,單個桶已經裝滿時就會使用 extra.nextOverflow 中桶存儲溢出的數據。上述兩種不同的桶在內存中是連續存儲的,我們在這里將它們分別稱為正常桶和溢出桶。

bucket的結構體 bmap 在 Go 語言源代碼中的定義只包含一個簡單的 tophash 字段,tophash 存儲了鍵的哈希的高 8 位,通過比較不同鍵的哈希的高 8 位可以減少訪問鍵值對次數以提高性能。在運行期間,bmap 結構體其實不止包含 tophash 字段,因為哈希表中可能存儲不同類型的鍵值對,而且 Go 語言也不支持泛型,所以鍵值對占據的內存空間大小只能在編譯時進行推導。runtime.bmap 中的其他字段在運行時也都是通過計算內存地址的方式訪問的,所以它的定義中就不包含這些字段,不過我們能根據編譯期間的 cmd/compile/internal/gc.bmap 函數重建它的結構:

type bmap struct {
    tophash [bucketCnt]uint8
}

// 利用../go/src/cmd/compile/internal/gc/reflect.go文件中的bmap函數反推
type bmap struct {
    topbits  [8]uint8
    keys     [8]keytype
    values   [8]valuetype
    overflow uintptr
}

桶和溢出桶

  • 桶: 每個桶包含固定數量的鍵值對,Go 中每個桶默認可以存儲 8 對鍵值對。
  • 溢出桶(overflow bucket): 當一個桶已滿但仍需插入新的鍵值對時,會創建一個新的桶作為當前桶的溢出桶。

溢出桶的作用

解決哈希沖突:

  • 在理想情況下,每個鍵會被分配到不同的桶中。然而,在實際應用中,由于哈希函數的特性,多個鍵可能會被分配到同一個桶中(即哈希沖突)。
  • 當一個桶已滿且仍然需要存儲新的鍵值對時,Go 會創建一個新的桶作為當前桶的溢出桶,并將新鍵值對存儲在這個溢出桶中。

管理存儲空間:

  • 溢出桶允許動態擴展 map 的存儲容量。通過使用鏈表結構(由多個溢出桶組成),可以有效地管理超過初始桶容量的數據。
  • 這種機制避免了頻繁地重新分配和復制整個哈希表,從而提高了性能。

高效查找:

  • 即使存在多個溢出桶,Go 的 map 實現仍然能夠高效地進行鍵值對的查找。通過遍歷主桶及其關聯的溢出桶,可以快速找到所需的鍵值對。
  • 溢出桶的設計確保了查找操作在平均情況下仍然是 O(1) 時間復雜度。

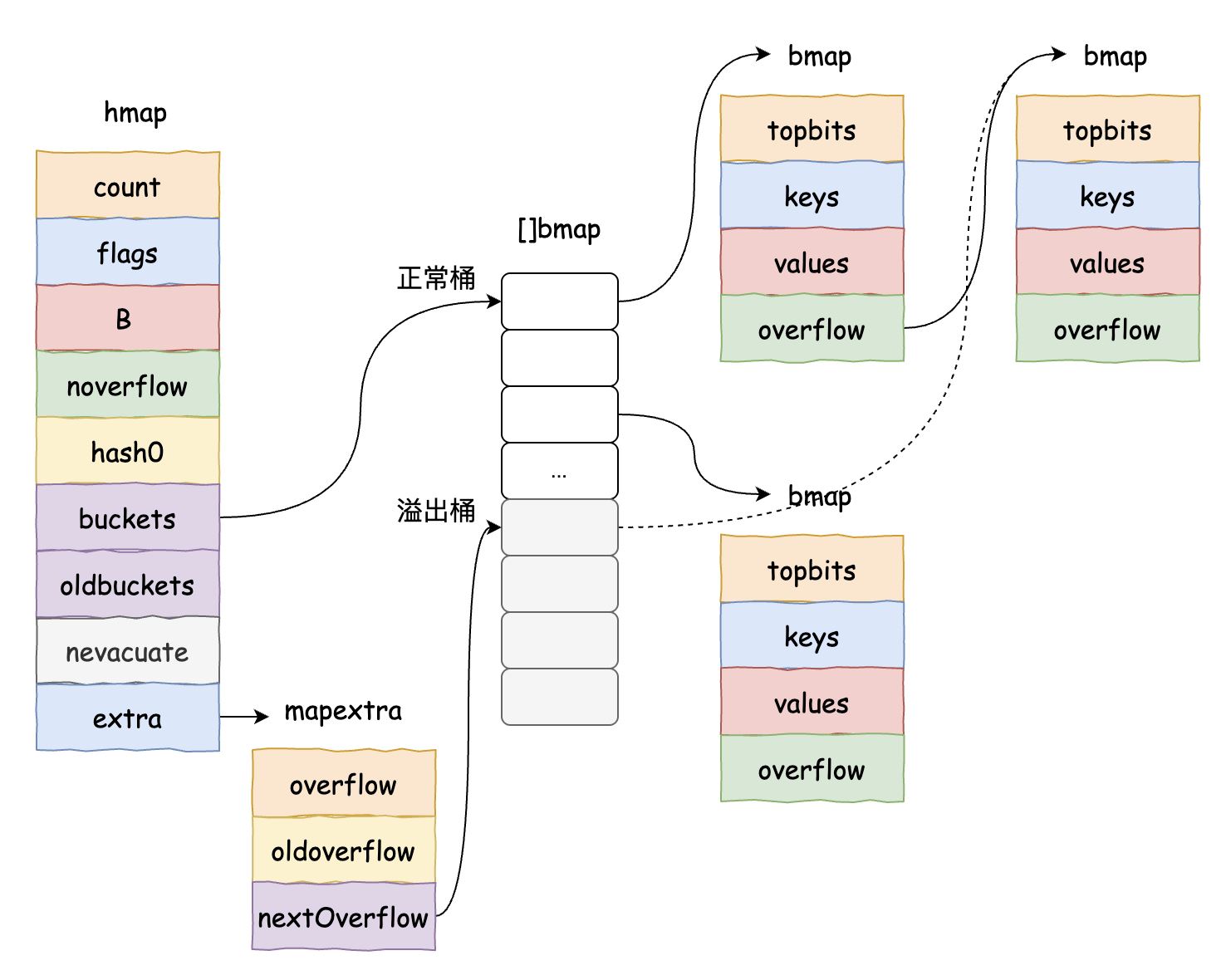

2.2 hmap

hmap是Go實現map的底層數據結構,主要用于管理bucket的擴容、元素的查找/刪除等,其具體結構如下:

 type hmap struct {
   count       int        // 元素個數,調用 len(map) 時,直接返回此值
   flags       uint8      // 標記,對應 const 中 '// flags' 下的幾個狀態
   B           uint8      // buckets 的對數 log_2
   noverflow   uint16     // overflow 的 bucket 近似數
   hash0       uint32     // 計算 key 的哈希的時候會傳入哈希函數
   buckets     unsafe.Pointer    // 指向 buckets 數組,大小為 2^B。如果元素個數為0,就為 nil
                                 // 擴容的時候,buckets 長度會是 oldbuckets 的兩倍
   oldbuckets unsafe.Pointer     // 指向擴容前的數組(漸進式擴容)
   nevacuate  uintptr            // 指示擴容進度,小于此地址的 buckets 遷移完成
   extra      *mapextra          //保存溢出桶的信息
}


type mapextra struct {
   // 如果 key 和 value 都不包含指針,并且可以被 inline(<=128 字節)
   // 使用 extra 來存儲 overflow bucket,這樣可以避免 GC 掃描整個 map
   // 然而 bmap.overflow 也是個指針。這時候我們只能把這些 overflow 的指針
   // 都放在 hmap.extra.overflow 和 hmap.extra.oldoverflow 中了
   overflow    *[]*bmap // overflow 包含的是 hmap.buckets 的 overflow 的 bucket
   oldoverflow *[]*bmap // oldoverflow 包含擴容時的 hmap.oldbuckets 的 overflow 的 bucket

   nextOverflow *bmap // 指向空閑的 overflow bucket 的指針
}

3 map實現源碼

3.1 map的初始化

使用make函數創建map:

make(map[k]v, hint)

在 hint <= 8(鍵值對的個數) 時,會調用 makemap_small 來進行初始化,如果 hint > 8,則調用 makemap。在預估待插入的元素個數小于8或者需要的bucket為0時,Go編譯器會采用延遲分配策略,只有在真正往map中寫入數據時, 才會分配bucket。

makemap函數主要流程如下:

  • 內存安全檢查:通過計算預估內存 = 元素數量 × 單個桶大小(t.bucket.size),防止內存溢出攻擊和無效分配,若檢測失敗,將 hint 重置為 0(后續按最小分配處理)
  • 初始化 hmap 結構體:若傳入 h 為 nil,新建 hmap 結構(map 的底層表示);隨后h.hash0 = fastrand():生成隨機哈希種子,用于增加哈希隨機性,防止哈希碰撞攻擊,相同 key 在不同 map 中產生不同哈希值
  • 計算桶數量指數 B:根據負載因子確定合適的桶數量(2^B 個桶),循環增加 B 直到滿足:6.5 * 2^B >= hint
  • 分配桶數組:若 B == 0(hint=0),延后到首次寫入時分配;其他情況,調用makeBucketArray 分配主桶數組(長度為 2^B),如果 B >= 4 額外預分配溢出桶(減少運行時分配開銷,這里也說明正常桶與溢出桶是內存地址連續的數組)
  • 溢出桶管理:若存在預分配溢出桶(nextOverflow != nil),初始化 h.extra 結構,記錄可用溢出桶鏈表。最后一個溢出桶的overflow指針會指向第一個正常桶,以此形成一個環。
func makemap_small() *hmap {
   h := new(hmap)
   h.hash0 = fastrand()
   return h
}

func makemap(t *maptype, hint int, h *hmap) *hmap {
   // 進行內存大小的檢查,如果溢出或者內存超出最大內存空間,將hint(元素個數)設置為0
   mem, overflow := math.MulUintptr(uintptr(hint), t.bucket.size)
   if overflow || mem > maxAlloc {
      hint = 0
   }

   // 初始化 Hmap,即如果當前Hamp為空,則new hmap
   // 設置map的哈希計算種子隨機數hash0
   if h == nil {
      h = new(hmap)
   }
   h.hash0 = fastrand()

   // Find the size parameter B which will hold the requested # of elements.
   // For hint < 0 overLoadFactor returns false since hint < bucketCnt.
   // 按照提供的元素個數,根據負載因子計算合理的 B 值,以確保 6.5 * 2 ^ B >= hint
   B := uint8(0)
   for overLoadFactor(hint, B) {
      B++
   }
   h.B = B

   // allocate initial hash table
   // if B == 0, the buckets field is allocated lazily later (in mapassign)
   // If hint is large zeroing this memory could take a while.
   // 初始化 hash table
   // 如果 B 等于 0,那么 buckets 就會在賦值( mapassign )的時候再分配
   // 如果長度比較大,分配內存會花費長一點
   if h.B != 0 {
      var nextOverflow *bmap
      h.buckets, nextOverflow = makeBucketArray(t, h.B, nil)
      if nextOverflow != nil {
         h.extra = new(mapextra)
         h.extra.nextOverflow = nextOverflow
      }
   }

   return h
}

func makeBucketArray(t *maptype, b uint8, dirtyalloc unsafe.Pointer) (buckets unsafe.Pointer, nextOverflow *bmap) {
   // uintptr(1) << ( b & (sys.PtrSize*8-1))  2^b
   base := bucketShift(b)
   nbuckets := base

   // 當桶的數量小于2^4 時,由于數據較少、使用溢出桶的可能性較低,
   // 這時就會省略創建溢出桶的過程以減少額外開銷
   if b >= 4 {
      // 當桶的數量多于2^4時,就會額外創建 2^(b-4)個溢出桶
      // 根據內存的分配規則,計算出合適的內存大小,并確定桶的數量
      nbuckets += bucketShift(b - 4)
      sz := t.bucket.size * nbuckets
      up := roundupsize(sz)
      if up != sz {
         nbuckets = up / t.bucket.size
      }
   }

   // 如果桶之前沒有分配內存,就初始化一個數組
   // 反之,直接沿用之前的,并清理掉本次初始化所需要內存大小的內存,備用
   if dirtyalloc == nil {
      buckets = newarray(t.bucket, int(nbuckets))
   } else {
      // dirtyalloc was previously generated by
      // the above newarray(t.bucket, int(nbuckets))
      // but may not be empty.
      buckets = dirtyalloc
      size := t.bucket.size * nbuckets
      if t.bucket.ptrdata != 0 {
         memclrHasPointers(buckets, size)
      } else {
         memclrNoHeapPointers(buckets, size)
      }
   }

   // 如果創建的桶數量不等于2^b,說明分配了額外的溢出桶
   if base != nbuckets {
      // 2^b個桶后面就是溢出桶
      nextOverflow = (*bmap)(add(buckets, base*uintptr(t.bucketsize)))

      // 取nextOverflow 里面的最后一個元素,并把最后一個buckets 的末尾偏移的指針指向空閑的bucket (目前就是第一個buckets了)
      last := (*bmap)(add(buckets, (nbuckets-1)*uintptr(t.bucketsize)))
      last.setoverflow(t, (*bmap)(buckets))
   }
   return buckets, nextOverflow
}

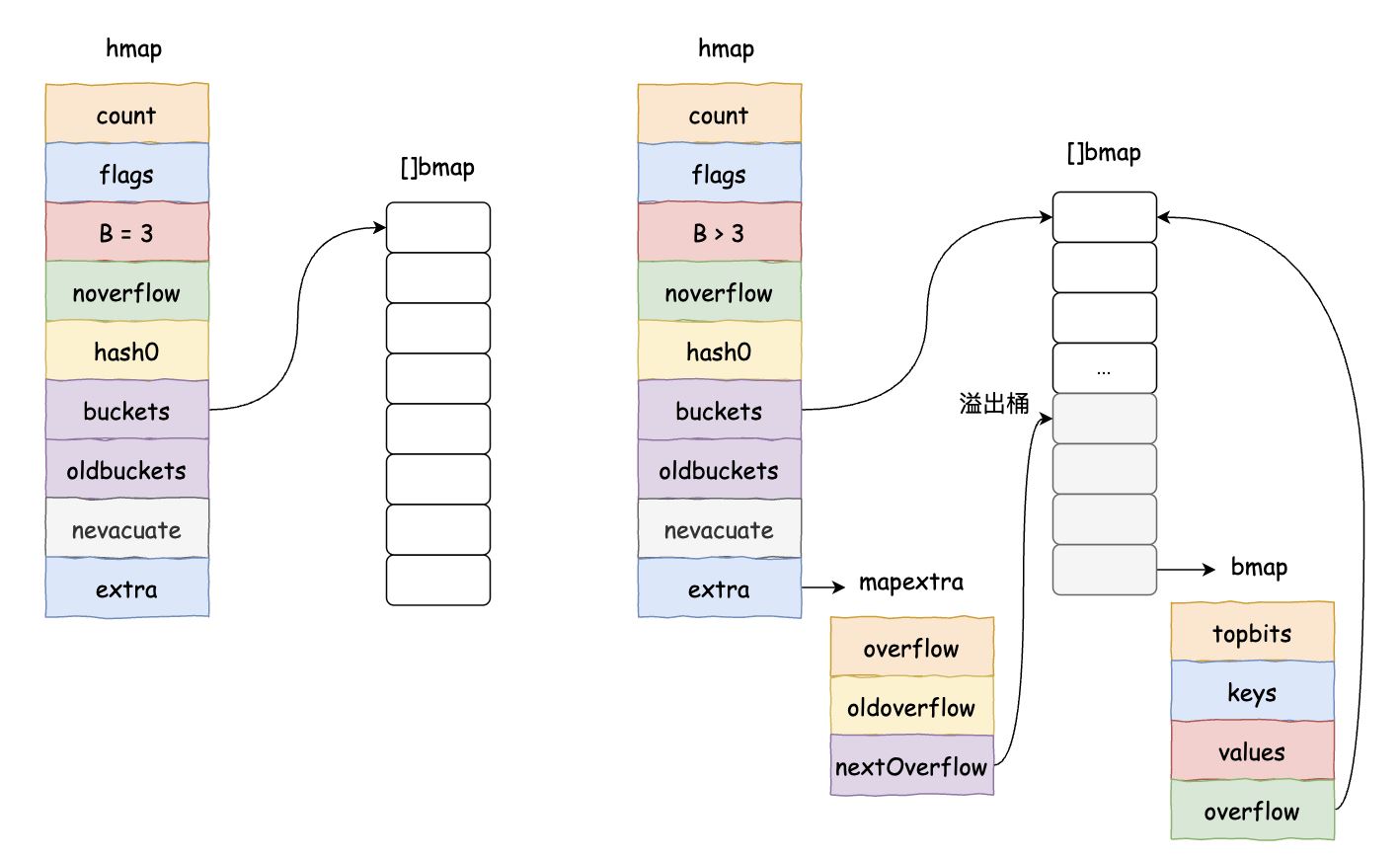

下圖是不同B值時,初始化得到的map,如果B小于4,則編譯器不會為map分配溢出桶(認為map的規模比較小,需要使用到溢出桶的概率不大);只有在B大于等于4時,才會為map分配 2^(B-4)個溢出桶,需要注意的是正常桶與溢出桶在底層是一個內存地址連續的數組!

3.2 map的賦值

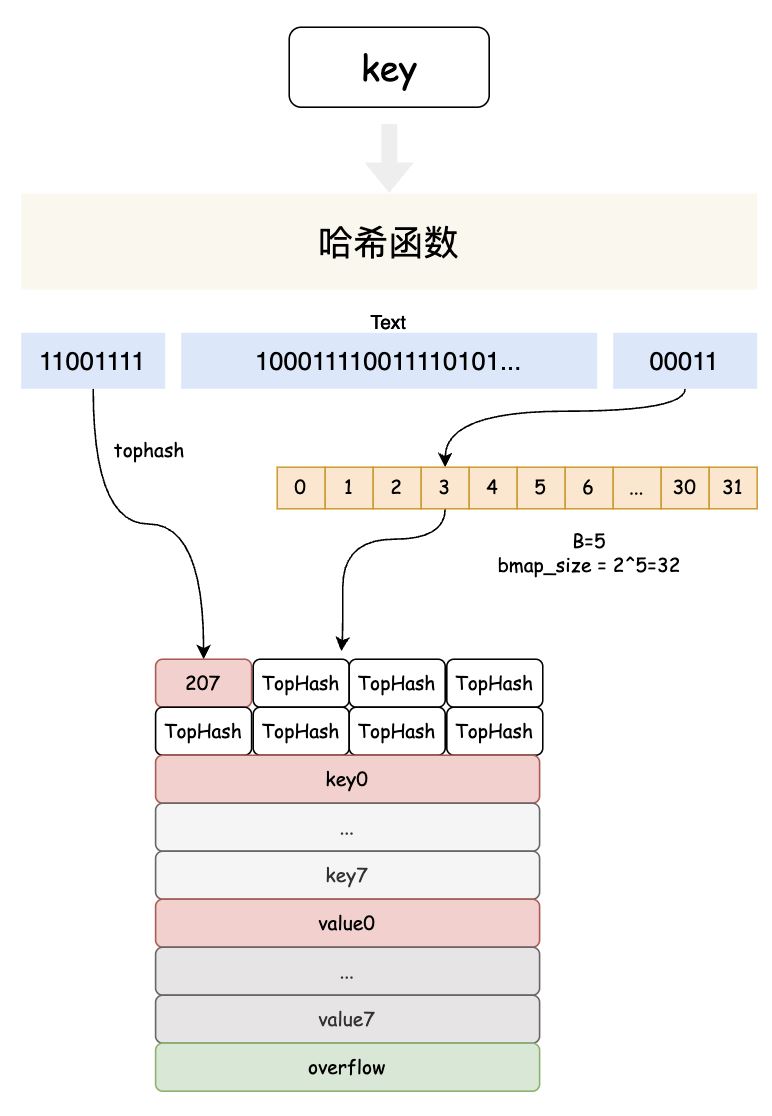

map的賦值操作核心是:通過hash函數,找到key插入到bmap數據的下標索引,然后就需要遍歷該下標包含的所有bucket,尋找第一個能插入的位置或者尋找該key是否已經存在。hash值在這里的主要作用有兩個:

  • tophash:由于一個bucket存儲了8個鍵值對,為了快速比較key,編譯器會將hash值的前8位(64位操作系統)存儲到bucket到tophash數組。
  • 確定bmap的索引:hash值與map的B值進行mask操作,確定該key存儲的下標位置。

賦值操作底層mapassign函數的主要流程:

1. 安全檢查和初始化

  • 空 map 檢查:對 nil map 賦值會 panic
  • 并發寫檢查:檢測到其他 goroutine 正在寫 map 時拋出異常(Go map 非并發安全)
  • 哈希計算:使用類型特定的哈希函數計算鍵的哈希值
  • 標記寫操作:設置 hashWriting 標志位(防止并發寫)
  • 延遲初始化:若桶數組未分配,分配一個桶(最小化空 map 開銷)

2. 定位桶和搜索鍵

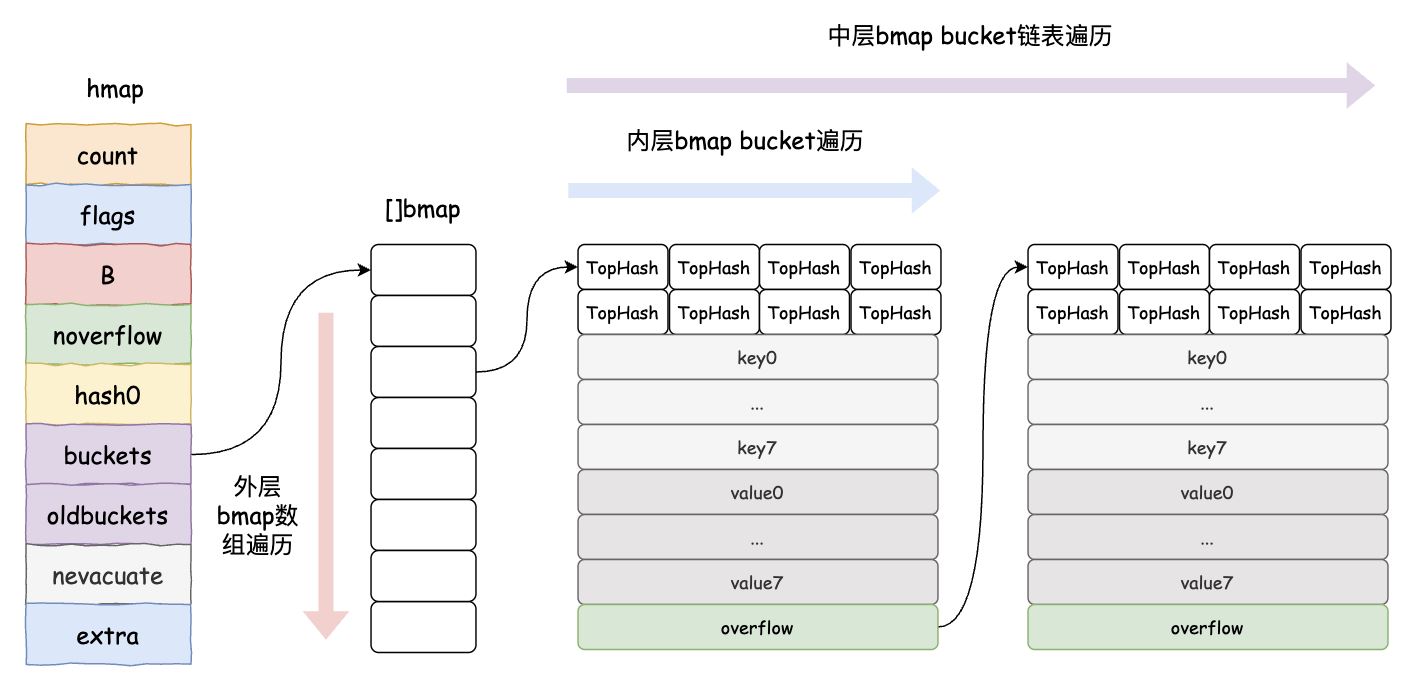

雙層循環搜索:外層遍歷對應index下所有的bucket,內層循環處理每個桶的 8 個槽。

  • 遍歷時,需要記錄第一個可以插入的位置。
  • 同時,需要遍歷完全插入位置下,所有的bucket。如果遇到tophash相等,進一步判斷key是否一致,key也相等,則更新key的信息并結束循環。
  • 遇到 emptyRest(后續全空)時,提前終止搜索。

3. 鍵不存在時的處理

  • 擴容條件:負載因子超標(count/(2^B) > 6.5);溢出桶過多(noverflow >= 2^min(B, 15))。
  • 擴容后重試:桶布局改變需重新定位
  • 分配新溢出桶:當所有桶都無空閑槽時,則申請一個溢出桶

4. 收尾工作

  • 返回值的存儲位置:調用方通過此指針寫入值
  • 間接值處理:若值類型為指針,返回實際值地址
/*
 t *maptype:map 的類型信息
 h *hmap:map 的底層結構
 key unsafe.Pointer:要插入或更新的鍵
 返回:指向值存儲位置的指針(寫入值需通過此指針)
*/
func mapassign(t *maptype, h *hmap, key unsafe.Pointer) unsafe.Pointer {
   // 對于nil的map不能進行寫操作,直接panic
   if h == nil {
      panic(plainError("assignment to entry in nil map"))
   }
   if raceenabled {
      callerpc := getcallerpc()
      pc := funcPC(mapassign)
      racewritepc(unsafe.Pointer(h), callerpc, pc)
      raceReadObjectPC(t.key, key, callerpc, pc)
   }
   if msanenabled {
      msanread(key, t.key.size)
   }

   // 如果有別的goroutine正在寫此map,即發生了并發寫,直接異常退出
   if h.flags&hashWriting != 0 {
      throw("concurrent map writes")
   }
   // 計算需要寫入的key的hash值
   hash := t.hasher(key, uintptr(h.hash0))

   // 調用hasher函數時,可能發生paninc,因此沒法完成一次寫操作
   // 如果hasher沒有發生panic,那么將flags設置成flags += 4
   h.flags ^= hashWriting

   // 如果bucket沒有被分配內存,則分配一個bucket(延遲初始化)
   if h.buckets == nil {
      h.buckets = newobject(t.bucket) // newarray(t.bucket, 1)
   }

again:
   //  計算低 8 位 hash,根據計算出的 bucketMask 選擇對應的 bucket 編號
   bucket := hash & bucketMask(h.B)
   //  如果map正在擴容,則完成搬遷工作
   if h.growing() {
      growWork(t, h, bucket)
   }
   // 計算key對應桶編號的地址,以及hash值的高8位
   b := (*bmap)(add(h.buckets, bucket*uintptr(t.bucketsize)))
   top := tophash(hash)

   var inserti *uint8            //  需要寫入tophash數組的下標
   var insertk unsafe.Pointer    //  寫入key的對象指針(地址)
   var elem unsafe.Pointer       //  寫入value的對象指針(地址),即返回值
bucketloop:
   //  開啟雙層循環,外層遍歷bucket的所有overflow桶,內層遍歷每個bucket的cell
   //  目的:找到空的cell(key不存在),或者top所在的位置(key已存在)
   for {
      for i := uintptr(0); i < bucketCnt; i++ {
         if b.tophash[i] != top { // 當前top不一致,繼續比對下一個
            // 找到第一個空的cell,并保存下表以及地址信息
            if isEmpty(b.tophash[i]) && inserti == nil {
               inserti = &b.tophash[i]
               insertk = add(unsafe.Pointer(b), dataOffset+i*uintptr(t.keysize))
               elem = add(unsafe.Pointer(b), dataOffset+bucketCnt*uintptr(t.keysize)+i*uintptr(t.elemsize))
            }
            // 此cell為空且后面也都是空cell,那么inserti必定已不為空。
            // 這種情況直接退出bucket cell的遍歷
            if b.tophash[i] == emptyRest {
               break bucketloop
            }
            continue
         }

         // 如果b.tophash[i] == top,計算key對應的地址
         // k是指針對象,解引用
         k := add(unsafe.Pointer(b), dataOffset+i*uintptr(t.keysize))
         if t.indirectkey() {
            k = *((*unsafe.Pointer)(k))
         }

         // 如果相同的 hash 位置的 key 和要插入的 key 字面上不相等
         // 如果兩個 key 的首八位后最后八位哈希值一樣,就會進行其值比較,算是一種哈希碰撞吧
         if !t.key.equal(key, k) {
            continue
         }
         // map已經有此key存在了,那么直接更新
         if t.needkeyupdate() {
            typedmemmove(t.key, k, key)
         }
         elem = add(unsafe.Pointer(b), dataOffset+bucketCnt*uintptr(t.keysize)+i*uintptr(t.elemsize))
         goto done
      }

      //  bucket 的 8 個槽沒有滿足條件的能插入或者能更新的,去 overflow 里繼續找
      //  overflow 為 nil,說明到了 overflow 鏈表的末端了,退出外層循環
      ovf := b.overflow(t)
      if ovf == nil {
         break
      }
      // 賦值為鏈表的下一個元素,繼續循環
      b = ovf
   }

   // 沒有找到 key,分配新的空間
   // 如果觸發了最大的 load factor,或者已經有太多 overflow buckets
   // 并且這個時刻沒有在進行 growing 的途中,那么就開始 growing
   if !h.growing() && (overLoadFactor(h.count+1, h.B) || tooManyOverflowBuckets(h.noverflow, h.B)) {
      hashGrow(t, h)
      goto again // Growing the table invalidates everything, so try again
   }

   if inserti == nil {
      // The current bucket and all the overflow buckets connected to it are full, allocate a new one.
      // 前面在桶里找的時候,沒有找到能塞這個 tophash 的位置
      // 說明當前所有 buckets 都是滿的,分配一個新的 bucket
      newb := h.newoverflow(t, b)
      inserti = &newb.tophash[0]
      insertk = add(unsafe.Pointer(newb), dataOffset)
      elem = add(insertk, bucketCnt*uintptr(t.keysize))
   }

   // store new key/elem at insert position
   if t.indirectkey() { // 如果鍵的比較大,則直接使用指針存儲
      kmem := newobject(t.key)
      // 二級指針,insertk看作是指向指針的指針
      *(*unsafe.Pointer)(insertk) = kmem
      insertk = kmem
   }
   if t.indirectelem() {
      vmem := newobject(t.elem)
      *(*unsafe.Pointer)(elem) = vmem
   }
   typedmemmove(t.key, insertk, key)
   *inserti = top
   h.count++

done:
   // 禁止并發寫
   if h.flags&hashWriting == 0 {
      throw("concurrent map writes")
   }
   // flags對hashWriting按位置0,'^='表示按右邊hashWriting二進制為1的位置,置0
   // 還原寫操作之前的flags
   h.flags &^= hashWriting
   if t.indirectelem() {
      // 如果value是個大對象,則bucket中存儲的是對象地址unsafe.Pointer,取出存放value對象的地址
      elem = *((*unsafe.Pointer)(elem))
   }
   return elem
}

3.3 map的查找

mapaccess1、mapaccess2、mapaccessk是常用的map查找函數,三個函數的主要實現基本類似,主要區別在于函數的返回值不同。

  • mapaccess1只有一個value的返回值,v := m[k]時調用,如果k不存在,返回的是value類型對應的零值
  • mapaccess2返回value,bool,v, ok := m[k]時調用,如果k不存在,返回是value類型對應的零值,false
  • mapaccessk返回key,value,如果k不存在,返回nil,nil

下面主要分析下mapaccess2函數的實現:

安全性檢查

  • 空 map 處理:如果 map 為 nil 或元素數為 0,直接返回零值和 false
  • 特殊處理:如果鍵類型可能引發 panic(如函數類型),調用哈希函數觸發 panic
  • 讀寫沖突檢測:當其他 goroutine 正在寫 map 時拋出異常(Go map 非并發安全)

計算哈希和定位桶

  • bucketMask(h.B):生成用于取模的掩碼(如 B=3 時,mask=0b111)
  • 桶定位公式:桶地址 = buckets起始地址 + (hash & mask) * 桶大小

擴容期間的特殊處理:當 map 正在擴容時,數據可能存在于新舊桶中(擴容有等量擴容與雙倍擴容兩種,詳細解釋見3.4節),如果是雙倍擴容,且該下標還沒有遷移完成,則在老桶中查找

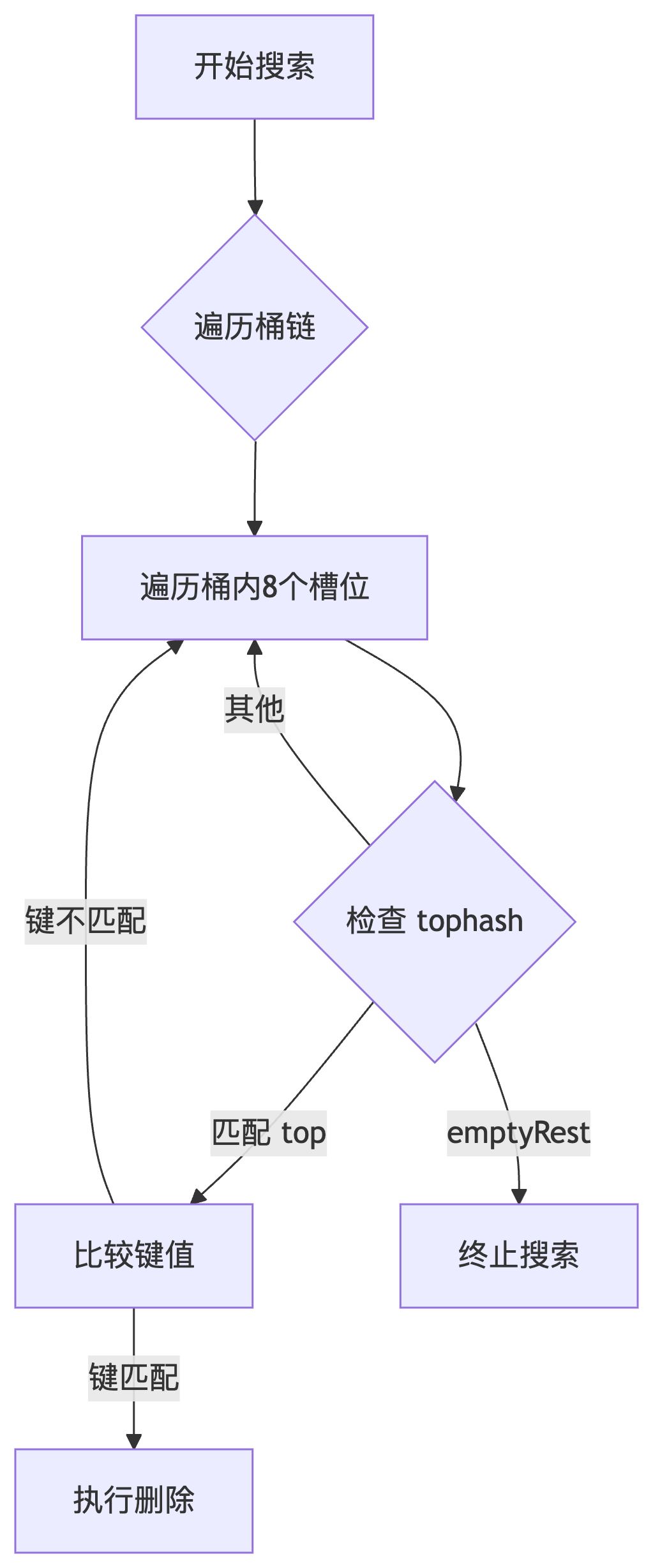

雙層循環搜索鍵值對

  • tophash 比較:先比較哈希高8位,快速過濾不匹配項
  • emptyRest 優化:遇到標記為 emptyRest 的槽位,表示后續全部為空,直接跳出循環

鍵值定位

  • 鍵位置:桶地址 + 數據偏移 + 索引 * 鍵大小
  • 值位置:桶地址 + 數據偏移 + 8*鍵大小 + 索引 * 值大小
  • 間接存儲處理:若鍵或值為指針類型,需解引用獲取實際數據
  • 未找到處理:返回預定義的零值地址和 false
/*
    t *maptype:map 的類型信息
    h *hmap:map 的底層結構
    key unsafe.Pointer:要查找的鍵
    返回值:
        unsafe.Pointer:指向值的指針(未找到時指向零值)
        bool:表示鍵是否存在
*/
func mapaccess2(t *maptype, h *hmap, key unsafe.Pointer) (unsafe.Pointer, bool) {
   if raceenabled && h != nil {
      callerpc := getcallerpc()
      pc := funcPC(mapaccess2)
      racereadpc(unsafe.Pointer(h), callerpc, pc)
      raceReadObjectPC(t.key, key, callerpc, pc)
   }
   if msanenabled && h != nil {
      msanread(key, t.key.size)
   }

   // 如果map為空,或者元素個數為零,直接返回零值
   if h == nil || h.count == 0 {
      if t.hashMightPanic() {
         t.hasher(key, 0)
      }
      return unsafe.Pointer(&zeroVal[0]), false
   }

   // 讀、寫沖突
   if h.flags&hashWriting != 0 {
      throw("concurrent map read and map write")
   }

   // 計算哈希值,并且加入 hash0 引入隨機性
   hash := t.hasher(key, uintptr(h.hash0))
   // 如果 B = 3,那么結果用二進制表示就是 111,2^B-1
   m := bucketMask(h.B)
   // b 就是存儲key所在的 bucket 的地址
   b := (*bmap)(unsafe.Pointer(uintptr(h.buckets) + (hash&m)*uintptr(t.bucketsize)))

   // h.oldbuckets != nil時,說明 map 發生了擴容。這時候,新的 buckets 里可能還沒有老的內容,
   // 所以一定要在老的里面找,否則有可能發生“消失”的詭異現象
   if c := h.oldbuckets; c != nil {
      if !h.sameSizeGrow() {
         // 如果不是等量擴容,新bucket的數量是老bucket的兩倍
         m >>= 1
      }
      // 求出 key 在老的 map 中的 bucket 位置
      oldb := (*bmap)(unsafe.Pointer(uintptr(c) + (hash&m)*uintptr(t.bucketsize)))
      // 如果oldb 沒有搬遷到新的 bucket,那就在老的 bucket 中尋找
      if !evacuated(oldb) {
         b = oldb
      }
   }
   // 計算高 8 位的 hash,相當于右移 56 位,只取高8位
   top := tophash(hash)
bucketloop:
   // 兩層循環,第一層遍歷bucket后面所有的溢出桶
   //         第二層遍歷每個桶內部的8個key位置
   for ; b != nil; b = b.overflow(t) {
      for i := uintptr(0); i < bucketCnt; i++ {
         // 如果top不匹配
         if b.tophash[i] != top {
            // emptyRest標記此cell后面所有的key(包括overflow桶)都為空,此時直接跳出循環
            if b.tophash[i] == emptyRest {
               break bucketloop
            }
            continue
         }

         // 通過 bmap的地址+dataOffset+i*keysize 定位key的位置
         dataOffset = unsafe.Offsetof(struct{
            b bmap // bmap理解為[bucketCnt]uint8
            v int64
         }{}.v)

         k := add(unsafe.Pointer(b), dataOffset+i*uintptr(t.keysize))
         if t.indirectkey() {  // 如果key是指針,那么解引用
            k = *((*unsafe.Pointer)(k)) // 先將k轉化為*unsafe.Pointer類型,然后取出該地址存儲的值
         }
         // 如果key相等,定位value的位置,在map中找到了key-value,然后返回
         if t.key.equal(key, k) {
            e := add(unsafe.Pointer(b), dataOffset+bucketCnt*uintptr(t.keysize)+i*uintptr(t.elemsize))
            if t.indirectelem() { // 如果value是指針,那么解引用
               e = *((*unsafe.Pointer)(e))
            }
            return e, true
         }
      }
   }
   // 如果遍歷完所有的bucket(包括溢出桶),還沒找到,則返回零值
   return unsafe.Pointer(&zeroVal[0]), false
}

3.4 map的擴容

擴容是hash table中比較常見的一種操作,主要用于提高查詢效率。Go map的擴容觸發條件如下:

是不是已經到了 load factor 的臨界點,即元素個數 >= 桶個數*6.5,這時候說明大部分的桶可能都快滿了,如果插入新元素,有大概率需要掛在 overflow 的桶上。

overflow 的桶是不是太多了,

當 bucket 總數 < 2 ^ 15 時,overflow 的 bucket 總數 >= bucket 的總數

當 bucket 總數 >= 2 ^ 15 時,overflow 的 bucket >= 2 ^ 15

滿足上述兩種情況時,就被認為溢出桶太多了。為啥會導致這種情況呢?是因為我們對 map 一邊插入,一邊刪除,會導致其中很多桶出現空洞,這樣使得 bucket 使用率不高,值存儲得比較稀疏。在查找時效率會下降。

// 裝載因子超過 6.5
func overLoadFactor(count int64, B uint8) bool {
   return count >= bucketCnt && float32(count) > loadFactorNum*(bucketShift(B)/loadFactorDen)
}

// overflow buckets 太多
func tooManyOverflowBuckets(noverflow uint16, B uint8) bool {
   if B > 15 {
      B = 15
   }
   // The compiler doesn't see here that B < 16; mask B to generate shorter shift code.
   return noverflow >= uint16(1)<<(B&15)
}

針對上述兩種情況,采用了不同的解決方法:

  • 針對 1,將 B + 1,進而 hmap 的 bucket 數組擴容一倍;
  • 針對 2,通過移動 bucket 內容,使其傾向于緊密排列從而提高 bucket 利用率(等量擴容)。

3.4.1 hashGrow函數

hashGrow函數只有在往map中新插入一個值,且需要觸發擴容時才會被調用。該函數主要根據擴容條件判斷需要執行哪一種擴容,然后申請新的bucket內存,更新bucket、oldbucket的信息,具體的遷移工作是由growWork 和 evacuate函數中完成的。Go map的擴容也采用的漸進式遷移,每一次賦值、刪除操作時,如果map處于擴容狀態,則會保證key對應的索引完全遷移(這樣,后續的操作只需要在h.bucket中完成即可),同時將h.nevacuate指示的下標索引對應的所有bucket也完成遷移。

func hashGrow(t *maptype, h *hmap) {
   // If we've hit the load factor, get bigger.
   // Otherwise, there are too many overflow buckets, so keep the same number of buckets and "grow" laterally.
   // 如果 load factor 超過了閾值,那么需要對 map 進行擴容,即 B = B + 1,bucket 總數會變?yōu)樵瓉淼亩?
   // 如果還沒到閾值,那么只需要保持相同數量的 bucket,橫向拍平就行了(等量擴容)
   bigger := uint8(1)
   if !overLoadFactor(h.count+1, h.B) {
      bigger = 0
      h.flags |= sameSizeGrow // 如果flags原先的值小于sameSizeGrow,h.flags += sameSizeGrow
   }

   // 將原先的bucket分給oldbuckets,然后申請新的bucket內存
   oldbuckets := h.buckets
   newbuckets, nextOverflow := makeBucketArray(t, h.B+bigger, nil)

   // 先把 h.flags 中 iterator 和 oldIterator 對應位清 0,然后如果發現 iterator 位為 1,那就把它轉接到 oldIterator 位,使得 oldIterator 標志位變成 1。
   // 潛臺詞就是:buckets 現在掛到了 oldBuckets 名下了,對應的標志位也轉接過去吧。
   flags := h.flags &^ (iterator | oldIterator)
   if h.flags&iterator != 0 {
      flags |= oldIterator
   }

   // 更新map的信息
   h.B += bigger
   h.flags = flags
   h.oldbuckets = oldbuckets
   h.buckets = newbuckets
   h.nevacuate = 0
   h.noverflow = 0

   // 將原先的overflow搬到oldoverflow
   if h.extra != nil && h.extra.overflow != nil {
      // Promote current overflow buckets to the old generation.
      if h.extra.oldoverflow != nil {
         throw("oldoverflow is not nil")
      }
      h.extra.oldoverflow = h.extra.overflow
      h.extra.overflow = nil
   }
   // 如果新的bucket有overflow bucket,賦值給nextOverflow
   if nextOverflow != nil {
      if h.extra == nil {
         h.extra = new(mapextra)
      }
      h.extra.nextOverflow = nextOverflow
   }

   // the actual copying of the hash table data is done incrementally by growWork() and evacuate().
   // 實際的哈希表元素的拷貝工作是在 growWork 和 evacuate 中增量慢慢地進行的
}

3.4.3 evacuate函數

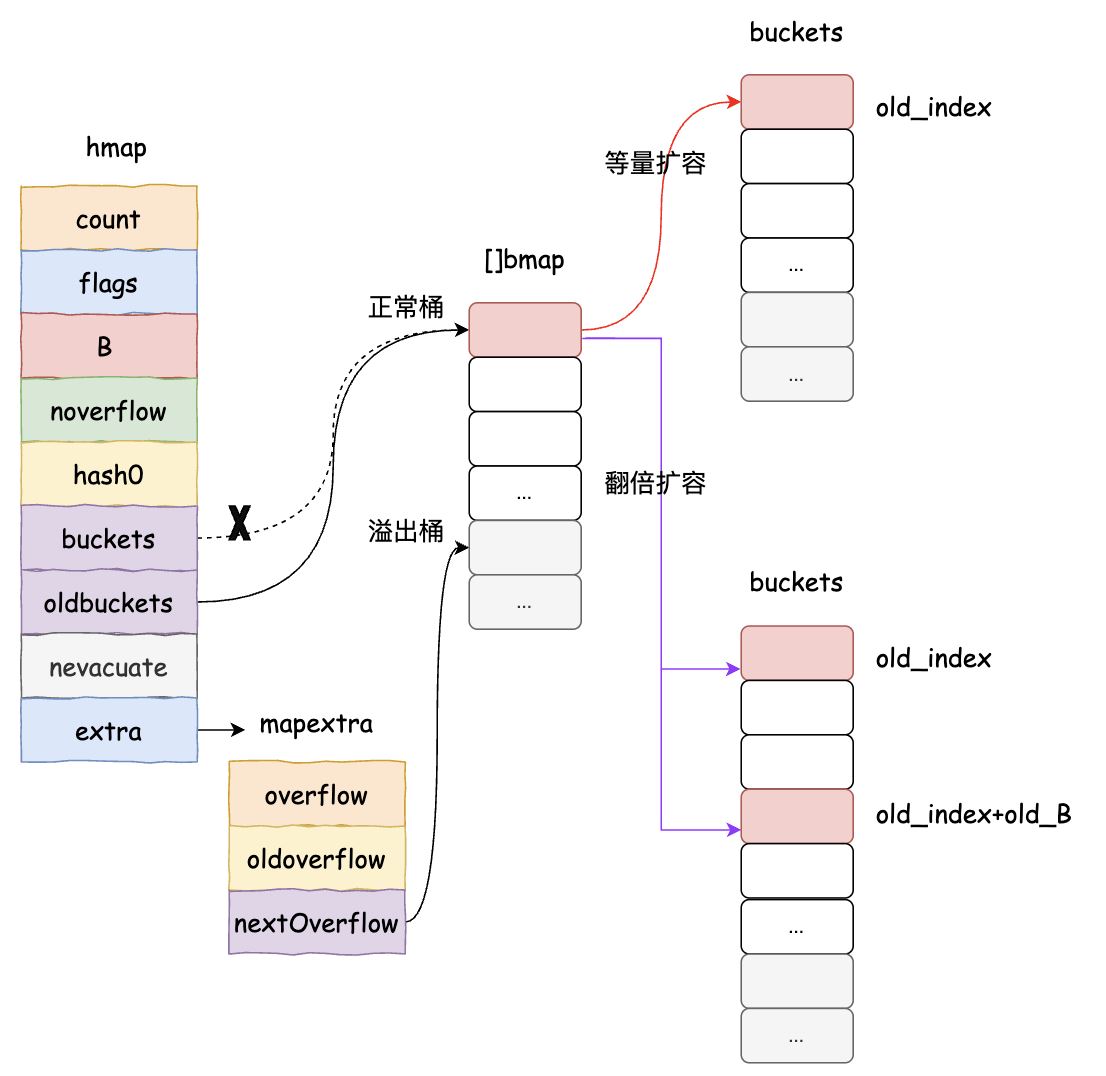

evacuate函數實現遷移的核心點在于:

  • evacDst 結構:跟蹤遷移目標位置

等量擴容:只使用 x(相同索引位置,平行遷移)

翻倍擴容:使用 xy 兩個目標,將原來一個索引下的bucket內容分配到新bmap數組的兩個相關索引下:

  • x:新桶數組低位(索引 = oldbucket
  • y:新桶數組高位(索引 = oldbucket + newbit

在翻倍擴容的時候,雖然鍵的哈希值沒有變化,但通過精妙的遷移策略和新索引計算機制,仍然能確保鍵的正確查找!翻倍擴容時,新掩碼 = 1 << B(B 是舊桶數量的指數),遷移到新桶數組到高位或地位,決定于hash & newbit。然后在查找時,使用新掩碼計算索引,在不改變hash函數的情況完美解決查找問題。(新舊mask的區別就是:新mask比舊值多了 B+1 bit位的判斷,后 B bit位還是保持一致,所以可以利用hash的第 B+1位值來確定key遷移到低位還是高位)

新索引 = {
舊索引 (當 hash & newbit == 0 時)
舊索引 + newbit (當 hash & newbit != 0 時)
} ======> 新索引 = hash & (newMask),新mask的第 B+1 bit位的值 == 2^B
newMask = (1 << (B+1)) - 1 = (1 << B) * 2 - 1 = newbit*2 - 1

假設:

  • 舊 B=2 (4個桶,掩碼 0b11)
  • 新 B=3 (8個桶,掩碼 0b111)
  • newbit = 1<<2 = 4 (0b100)
  • 鍵哈希值:h = 13 (二進制 0b1101)
階段計算過程結果
舊索引h & 0b11 = 0b1101 & 0b00111 (0b01)
遷移決策h & newbit = 0b1101 & 0b01004 (非0) → 遷移到高位
新索引h & 0b111 = 0b1101 & 0b01115 (0b101)
驗證舊索引(1) + newbit(4)5

// evacDst is an evacuation destination.
type evacDst struct {
   b *bmap          // current destination bucket
   i int            // key/elem index into b
   k unsafe.Pointer // pointer to current key storage
   e unsafe.Pointer // pointer to current elem storage
}

// 該函數用于實現hmap擴容時,數據的搬遷工作
// 如果是等量擴容,那么就初始化一個evacDst
// 如果是翻倍擴容,那么就初始化兩個evacDst
func evacuate(t *maptype, h *hmap, oldbucket uintptr) {
   // 定位舊bucket的地址以及擴容前map的容量
   b := (*bmap)(add(h.oldbuckets, oldbucket*uintptr(t.bucketsize)))
   newbit := h.noldbuckets()
   // 如果 b 沒有被搬遷過
   if !evacuated(b) {
      // xy contains the x and y (low and high) evacuation destinations.
      // xy 包含的是移動的目標
      // x 表示新 bucket 數組的前半部分,y 表示新 bucket 數組的后半部分
      var xy [2]evacDst
      x := &xy[0]
      x.b = (*bmap)(add(h.buckets, oldbucket*uintptr(t.bucketsize)))
      x.k = add(unsafe.Pointer(x.b), dataOffset)
      x.e = add(x.k, bucketCnt*uintptr(t.keysize))

      if !h.sameSizeGrow() {
         // Only calculate y pointers if we're growing bigger.
         // Otherwise GC can see bad pointers.
         // 如果不是等 size 擴容,前后 bucket 序號有變,使用 y 來進行搬遷
         // 擴容后的map bucket數量是原先的兩倍,x,y分別各占一半,數量與擴容前一樣
         // y部分桶的編號: oldbucket+newbit
         y := &xy[1]
         y.b = (*bmap)(add(h.buckets, (oldbucket+newbit)*uintptr(t.bucketsize)))
         y.k = add(unsafe.Pointer(y.b), dataOffset)
         y.e = add(y.k, bucketCnt*uintptr(t.keysize))
      }

      // 遍歷所有的 bucket,包括 overflow buckets,b 是老的 bucket 地址
      for ; b != nil; b = b.overflow(t) {
         // 從oldbucket的第一個cell開始
         k := add(unsafe.Pointer(b), dataOffset)
         e := add(k, bucketCnt*uintptr(t.keysize))
         // 遍歷 bucket 中的所有 cell
         for i := 0; i < bucketCnt; i, k, e = i+1, add(k, uintptr(t.keysize)), add(e, uintptr(t.elemsize)) {
            // 當前 cell 的 top hash 值
            top := b.tophash[i]
            // 如果 cell 為空,即沒有 key
            if isEmpty(top) {
               // 那就標志它被"搬遷"過,繼續下一個cell
               b.tophash[i] = evacuatedEmpty
               continue
            }

            // 正常不會出現這種情況
            // 未被搬遷的 cell 只可能是 empty 或是正常的 top hash(大于 minTopHash)
            if top < minTopHash {
               throw("bad map state")
            }
            k2 := k
            if t.indirectkey() {
               k2 = *((*unsafe.Pointer)(k2))
            }

            var useY uint8
            if !h.sameSizeGrow() {
               // Compute hash to make our evacuation decision (whether we need
               // to send this key/elem to bucket x or bucket y).
               // 計算哈希,以判斷我們的數據要轉移到哪一部分的 bucket,
               // 可能是 x 部分,也可能是 y 部分
               hash := t.hasher(k2, uintptr(h.hash0))
               if h.flags&iterator != 0 && !t.reflexivekey() && !t.key.equal(k2, k2) {
                  // If key != key (NaNs), then the hash could be (and probably
                  // will be) entirely different from the old hash. Moreover,
                  // it isn't reproducible. Reproducibility is required in the
                  // presence of iterators, as our evacuation decision must
                  // match whatever decision the iterator made.
                  // Fortunately, we have the freedom to send these keys either
                  // way. Also, tophash is meaningless for these kinds of keys.
                  // We let the low bit of tophash drive the evacuation decision.
                  // We recompute a new random tophash for the next level so
                  // these keys will get evenly distributed across all buckets
                  // after multiple grows.
                  useY = top & 1
                  top = tophash(hash)
               } else {
                  // 根據hash & newbit 來確定新bucket的索引,確保遷移完成之后,
                  // 使用原先的hash值 & 新的mask 還能找到正確的索引
                  if hash&newbit != 0 {
                     useY = 1
                  }
               }
            }

            if evacuatedX+1 != evacuatedY || evacuatedX^1 != evacuatedY {
               throw("bad evacuatedN")
            }

            // 在oldbucket對應的cell中標記top的搬遷狀態
            b.tophash[i] = evacuatedX + useY // evacuatedX + 1 == evacuatedY
            dst := &xy[useY]                 // evacuation destination

            // 當前bucket中已經放滿了元素,需要使用overflow bucket
            if dst.i == bucketCnt {
               dst.b = h.newoverflow(t, dst.b)
               dst.i = 0
               dst.k = add(unsafe.Pointer(dst.b), dataOffset)
               dst.e = add(dst.k, bucketCnt*uintptr(t.keysize))
            }
            dst.b.tophash[dst.i&(bucketCnt-1)] = top // mask dst.i as an optimization, to avoid a bounds check
            if t.indirectkey() {
               *(*unsafe.Pointer)(dst.k) = k2 // copy pointer
            } else {
               typedmemmove(t.key, dst.k, k) // copy elem
            }
            if t.indirectelem() {
               *(*unsafe.Pointer)(dst.e) = *(*unsafe.Pointer)(e)
            } else {
               typedmemmove(t.elem, dst.e, e)
            }
            dst.i++
            // These updates might push these pointers past the end of the
            // key or elem arrays.  That's ok, as we have the overflow pointer
            // at the end of the bucket to protect against pointing past the
            // end of the bucket.
            dst.k = add(dst.k, uintptr(t.keysize))
            dst.e = add(dst.e, uintptr(t.elemsize))
         }
      }
      // Unlink the overflow buckets & clear key/elem to help GC.
      // 如果沒有協程在使用老的 buckets,就把老 buckets 清除掉,幫助gc
      if h.flags&oldIterator == 0 && t.bucket.ptrdata != 0 {
         b := add(h.oldbuckets, oldbucket*uintptr(t.bucketsize))
         // Preserve b.tophash because the evacuation state is maintained there.
         // 只清除bucket 的 key,value 部分,保留 top hash 部分,指示搬遷狀態
         ptr := add(b, dataOffset)
         n := uintptr(t.bucketsize) - dataOffset
         memclrHasPointers(ptr, n)
      }
   }

   // 更新搬遷進度,如果此次搬遷的 bucket 等于當前進度
   if oldbucket == h.nevacuate {
      advanceEvacuationMark(h, t, newbit)
   }
}

3.5 map的刪除

map的刪除主要流程就是需要在key所在的索引bmap鏈表中查找到對應的值,進行內容的刪除釋放。這里需要特別注意的是,為了提升查找效率,有一個emptyRest前向傳播機制:如果被刪除的key后續位置都是emptyRest,則需要將其前面標記為emptyOne的cell升級為emptyRest,表示從這個cell往后不再有數據。

func mapdelete(t *maptype, h *hmap, key unsafe.Pointer) {

   if raceenabled && h != nil  {
      callerpc := getcallerpc()
      pc := funcPC(mapdelete)
      racewritepc(unsafe.Pointer(h), callerpc, pc)
      raceReadObjectPC(t.key, key, callerpc, pc)
   }
   if msanenabled && h != nil{
      msanread(key, t.key.size)
   }

   // 如果map為空,或者元素個數為零,直接返回
   if h == nil || h.count == 0 {
      if t.hashMightPanic() {
         t.hasher(key, 0)
      }
      return
   }

   // 有g(shù)oroutine在寫map時,無法完成刪除操作
   if h.flags&hashWriting != 0 {
      throw("concurrent map writes")
   }
   // 計算需要寫入的key的hash值
   hash := t.hasher(key, uintptr(h.hash0))

   // 調用hasher函數時,可能發生paninc,因此沒法完成一次寫操作
   // 如果hasher沒有發生panic,那么將flags設置成flags += 4
   h.flags ^= hashWriting

   //  計算低 8 位 hash,根據計算出的 bucketMask 選擇對應的 bucket 編號
   bucket := hash & bucketMask(h.B)
   //  如果map正在擴容,則完成搬遷工作
   if h.growing() {
      growWork(t, h, bucket)
   }
   // 計算key對應桶編號的地址,以及hash值的高8位
   b := (*bmap)(add(h.buckets, bucket*uintptr(t.bucketsize)))
   bOrig := b
   top := tophash(hash)
search:
   // 兩層循環,第一層遍歷bucket后面所有的溢出桶
   //         第二層遍歷每個桶內部的8個key位置
   for ; b != nil; b = b.overflow(t) {
      for i := uintptr(0); i < bucketCnt; i++ {
         // 如果top不匹配
         if b.tophash[i] != top {
            // emptyRest標記此cell后面所有的key(包括overflow桶)都為空,此時直接跳出循環
            if b.tophash[i] == emptyRest {
               break search
            }
            continue
         }

         // 如果b.tophash[i] == top,計算key對應的地址
         // k是指針對象,解引用
         k := add(unsafe.Pointer(b), dataOffset+i*uintptr(t.keysize))
         // 為了保存key的原始類型,便于后續的清理
         k2 := k
         if t.indirectkey() {
            k2 = *((*unsafe.Pointer)(k2))
         }

         // 如果相同的 hash 位置的 key 和要插入的 key 字面上不相等
         // 如果兩個 key 的首八位后最后八位哈希值一樣,就會進行其值比較,算是一種哈希碰撞
         if !t.key.equal(key, k2) {
            continue
         }

         // Only clear key if there are pointers in it.
         if t.indirectkey() {
            *(*unsafe.Pointer)(k) = nil
         } else if t.key.ptrdata != 0 {
            memclrHasPointers(k, t.key.size)
         }
         e := add(unsafe.Pointer(b), dataOffset+bucketCnt*uintptr(t.keysize)+i*uintptr(t.elemsize))
         if t.indirectelem() {
            *(*unsafe.Pointer)(e) = nil
         } else if t.elem.ptrdata  != 0 {
            memclrHasPointers(e, t.elem.size)
         } else {
            memclrNoHeapPointers(e, t.elem.size)
         }

         // 標記tophash的狀態
         b.tophash[i] = emptyOne
         // If the bucket now ends in a bunch of emptyOne states, change those to emptyRest states.
         // It would be nice to make this a separate function, but for loops are not currently inlineable.
         if i == bucketCnt-1 { // 刪除的key位于bucket的尾巴
            // 如果后續還有overflow桶,且桶內部還有元素,那么直接跳到notLast
            // 將此tophash標記為emptyOne即可
            if b.overflow(t) != nil && b.overflow(t).tophash[0] != emptyRest {
               goto notLast
            }
         } else {
            // 如果key不是最后一個,且后續cell還有元素,也直接跳到notLast
            if b.tophash[i+1] != emptyRest {
               goto notLast
            }
         }
         for {
            // 刪除的key后面不再有元素,需要將tophash標記為emptyRest
            // 同時往前尋找,并將前面tophash為emptyOne的位置標記為emptyRest
            b.tophash[i] = emptyRest
            if i == 0 {
               if b == bOrig {
                  break // beginning of initial bucket, we're done.
               }
               // Find previous bucket, continue at its last entry.
               c := b
               // 從key的bucket開始,查找當前bucket的前一個桶地址
               for b = bOrig; b.overflow(t) != c; b = b.overflow(t) {
               }
               // bucket內部從最后一個cell開始查找tophash為emptyOne的cell
               i = bucketCnt - 1
            } else {
               i--
            }
            // 查找到一個有內容的tophash,結束循環
            if b.tophash[i] != emptyOne {
               break
            }
         }
      notLast:
         h.count--
         // Reset the hash seed to make it more difficult for attackers to
         // repeatedly trigger hash collisions. See issue 25237.
         if h.count == 0 {
            h.hash0 = fastrand()
         }
         break search
      }
   }

   // 禁止并發寫
   if h.flags&hashWriting == 0 {
      throw("concurrent map writes")
   }
   // flags對hashWriting按位置0,
   // '^='表示按右邊hashWriting二進制為1的位置,置0,其他位置與flags保持一致
   // 還原寫操作之前的flags
   h.flags &^= hashWriting
}

3.6 map的遍歷

3.6.1 hiter結構體

在對map進行遍歷時,會借助迭代器hiter輔助完成整個map的循環遍歷,其中startBucket標記此次遍歷的起始位置,wrapped標記遍歷是否從頭開始,checkBucket則是用于擴容中進行遍歷時,堅持oldBucket中的數據。

type hiter struct {
        // key 指針,保存此次遍歷得到的key
        key         unsafe.Pointer
        // value 指針,保存此次遍歷得到的value
        value       unsafe.Pointer
        // map 類型,包含如 key size 大小等
        t           *maptype
        // map header
        h           *hmap
        // 初始化時指向的 bucket
        buckets     unsafe.Pointer
        // 當前遍歷到的 bmap
        bptr        *bmap
        overflow    [2]*[]*bmap
        // 起始遍歷的 bucet 編號
        startBucket uintptr
        // 遍歷開始時 cell 的編號(每個 bucket 中有 8 個 cell)
        offset      uint8
        // 是否從頭遍歷了
        wrapped     bool
        // B 的大小
        B           uint8
        // 指示當前 cell 序號
        i           uint8
        // 指向當前的 bucket
        bucket      uintptr
        // 因為擴容,需要檢查的 bucket
        checkBucket uintptr
}

3.6.2 mapiternext函數

對map進行遍歷時,首先會調用mapiterinit函數,初始化hiter,該函數邏輯比較簡單,主要就是隨機確定遍歷起始位置,這里的起始位置包括:bmap的數組的起始下標、bmap bucket內部cell的起始點。隨后調用mapiternext函數開始執行具體的遍歷操作(每調用一次mapiternext函數獲取一個map中的鍵值對),該過程的主要流程如下:

1. 首先檢查是否有并發寫操作,如果有則拋出異常。

2. 獲取迭代器當前的狀態(當前遍歷的bucket,當前bucket內的位置i,當前bucket指針b等)。

3. 如果當前bucket(b)為nil,說明需要處理下一個bucket或者已經遍歷完一圈。

  • 如果當前bucket序號等于起始bucket(it.startBucket)且已經標記為繞回(wrapped),說明已經遍歷完所有bucket,設置key和elem為nil并返回。
  • 如果map正在擴容且迭代器開始時的B(it.B)等于當前map的B(h.B),說明迭代開始后擴容未完成,需要處理舊桶:
  • 計算對應的舊桶(oldbucket)地址。
  • 如果該舊桶尚未遷移(evacuated),則設置checkBucket為當前bucket(用于后續判斷鍵是否屬于當前新桶),并繼續遍歷舊桶。
  • 如果已經遷移,則直接遍歷新桶中對應位置的桶,并將checkBucket設置為noCheck。
  • 否則,直接遍歷新桶中當前bucket位置的桶。
  • 然后bucket序號加1,如果達到bucket總數(2^B),則重置為0并標記wrapped為true(表示已經繞回一圈)。
  • 重置i為0,開始遍歷新桶。

4. 遍歷當前bucket(b)的8個cell(槽位),注意這里不是從0開始,而是根據it.offset進行偏移(使用offi = (i+it.offset) & (bucketCnt-1))以實現隨機開始。

  • 如果tophash[offi]為空(emptyOne或evacuatedEmpty)則跳過。
  • 獲取鍵k和值e的地址。
  • 如果checkBucket不為noCheck(說明在擴容過程中且當前遍歷的是舊桶),則需要判斷該鍵是否屬于當前迭代的新桶(checkBucket):
  • 對于正常鍵(非NaN),計算其哈希值并判斷它是否屬于checkBucket,如果不屬于則跳過。
  • 對于NaN(k!=k),使用tophash的低位來決定它應該去哪個桶,如果與checkBucket的高位不匹配則跳過。
  • 如果鍵值有效,則判斷該槽位是否已經被遷移(evacuatedX或evacuatedY)且鍵是正常的(可比較且相等):
  • 如果未被遷移,或者鍵是NaN(不可比較),則直接使用當前找到的鍵值對(因為此時數據還未遷移或無法比較,所以認為有效)。
  • 否則,說明在迭代過程中map已經擴容完成,該鍵可能已經被遷移,需要從新map中查找(調用mapaccessK):如果返回的鍵為nil,說明該鍵已被刪除,跳過;否則使用返回的鍵值對。

5. 設置迭代器的狀態(key, elem, bucket, bptr, i, checkBucket)并返回。

6. 如果當前bucket的8個cell都遍歷完了,則跳到overflow bucket(如果有),重置i為0,然后跳轉到next標簽繼續處理。

func mapiternext(it *hiter) {
   h := it.h
   if raceenabled {
      callerpc := getcallerpc()
      racewritepc(unsafe.Pointer(h), callerpc, funcPC(mapiternext))
   }

   // 如果有g(shù)oroutine正在寫,拋出異常
   if h.flags&hashWriting != 0 {
      throw("concurrent map iteration and writes")
   }

   t := it.t
   bucket := it.bucket
   b := it.bptr
   i := it.i
   checkBucket := it.checkBucket

next:
   // 后續沒有overflow bucket需要遍歷
   if b == nil {
      // 當前遍歷的bucket=startBucket,即完成循環回到最初的位置
      // 且該bucket已經從頭到尾遍歷完了,map的遍歷結束
      if bucket == it.startBucket && it.wrapped {
         // end of iteration
         it.key = nil
         it.elem = nil
         return
      }

      // 如果map正處于擴容狀態,還需要遍歷oldbucket
      if h.growing() && it.B == h.B {
         // Iterator was started in the middle of a grow, and the grow isn't done yet.
         // If the bucket we're looking at hasn't been filled in yet (i.e. the old
         // bucket hasn't been evacuated) then we need to iterate through the old
         // bucket and only return the ones that will be migrated to this bucket.
         oldbucket := bucket & it.h.oldbucketmask()
         // 根據bucket num在oldbucket的編號位置,計算bucket的地址
         b = (*bmap)(add(h.oldbuckets, oldbucket*uintptr(t.bucketsize)))
         if !evacuated(b) {
            // 如果oldbucket中此編號的bucket沒有完成搬遷,那么標記check
            checkBucket = bucket
         } else {
            // 如果oldbucket中此編號的bucket完成了搬遷,直接遍歷newbucket中對應位置的bucket
            b = (*bmap)(add(it.buckets, bucket*uintptr(t.bucketsize)))
            checkBucket = noCheck
         }
      } else {
         b = (*bmap)(add(it.buckets, bucket*uintptr(t.bucketsize)))
         checkBucket = noCheck
      }
      // 指向下一個bucket
      bucket++
      // 判斷是否已經遍歷到了末尾,如果是,則需要從頭重新開始遍歷,
      // 直至bucket == startbucket,標記一次完整的遍歷
      if bucket == bucketShift(it.B) {
         bucket = 0
         it.wrapped = true
      }
      i = 0
   }

   // 遍歷bucket的8個cell,但不是從頭開始遍歷的
   for ; i < bucketCnt; i++ {
      offi := (i + it.offset) & (bucketCnt - 1)
      // 如果tophash為空,即沒有數據,直接檢查下一個
      if isEmpty(b.tophash[offi]) || b.tophash[offi] == evacuatedEmpty {
         // TODO: emptyRest is hard to use here, as we start iterating
         // in the middle of a bucket. It's feasible, just tricky.
         continue
      }
      k := add(unsafe.Pointer(b), dataOffset+uintptr(offi)*uintptr(t.keysize))
      if t.indirectkey() {
         k = *((*unsafe.Pointer)(k))
      }

      e := add(unsafe.Pointer(b), dataOffset+bucketCnt*uintptr(t.keysize)+uintptr(offi)*uintptr(t.elemsize))
      if checkBucket != noCheck && !h.sameSizeGrow() {
         // Special case: iterator was started during a grow to a larger size
         // and the grow is not done yet. We're working on a bucket whose
         // oldbucket has not been evacuated yet. Or at least, it wasn't
         // evacuated when we started the bucket. So we're iterating
         // through the oldbucket, skipping any keys that will go
         // to the other new bucket (each oldbucket expands to two buckets during a grow).
         if t.reflexivekey() || t.key.equal(k, k) {
            // If the item in the oldbucket is not destined for the current new bucket in the iteration, skip it.
            hash := t.hasher(k, uintptr(h.hash0))
            if hash&bucketMask(it.B) != checkBucket {
               continue
            }
         } else {
            // Hash isn't repeatable if k != k (NaNs).  We need a
            // repeatable and randomish choice of which direction
            // to send NaNs during evacuation. We'll use the low
            // bit of tophash to decide which way NaNs go.
            // NOTE: this case is why we need two evacuate tophash
            // values, evacuatedX and evacuatedY, that differ in their low bit.
            if checkBucket>>(it.B-1) != uintptr(b.tophash[offi]&1) {
               continue
            }
         }
      }
      if (b.tophash[offi] != evacuatedX && b.tophash[offi] != evacuatedY) ||
         !(t.reflexivekey() || t.key.equal(k, k)) {
         // This is the golden data, we can return it.
         // OR
         // key!=key, so the entry can't be deleted or updated, so we can just return it.
         // That's lucky for us because when key!=key we can't look it up successfully.
         it.key = k
         if t.indirectelem() {
            e = *((*unsafe.Pointer)(e))
         }
         it.elem = e
      } else {
         // The hash table has grown since the iterator was started.
         // The golden data for this key is now somewhere else.
         // Check the current hash table for the data.
         // This code handles the case where the key has been deleted, updated, or deleted and reinserted.
         // NOTE: we need to regrab the key as it has potentially been
         // updated to an equal() but not identical key (e.g. +0.0 vs -0.0).
         rk, re := mapaccessK(t, h, k)
         if rk == nil {
            continue // key has been deleted
         }
         it.key = rk
         it.elem = re
      }
      it.bucket = bucket
      if it.bptr != b { // avoid unnecessary write barrier; see issue 14921
         it.bptr = b
      }
      it.i = i + 1
      it.checkBucket = checkBucket
      return
   }

   // 通過it.i走到此處,遍歷overflow bucket
   b = b.overflow(t)
   i = 0
   goto next
}

總結

以上為個人經驗,希望能給大家一個參考,也希望大家多多支持腳本之家。

相關文章

  • Go語言什么時候該使用指針

    Go語言什么時候該使用指針

    本文主要介紹了Go語言什么情況下應該使用指針,文中通過示例代碼介紹的非常詳細,具有一定的參考價值,感興趣的小伙伴們可以參考一下
    2022-01-01
  • Golang工具庫viper的使用教程

    Golang工具庫viper的使用教程

    viper?是?go?項目中用來讀取配置文件的庫,支持讀取?yaml、toml、json、hcl、env?等格式的配置文件,下面就來和大家聊聊它的具體使用吧
    2023-07-07
  • golang特有程序結構入門教程

    golang特有程序結構入門教程

    GO語言是一門不錯的編程語言能夠到達靜態編譯語言的安全和性能,在本文中重點給大家介紹goland特有程序結構及引用類型別名的特征,感興趣的朋友跟隨小編一起看看吧
    2021-06-06
  • OpenTelemetry-go的SDK使用方法詳解

    OpenTelemetry-go的SDK使用方法詳解

    這篇文章主要介紹了OpenTelemetry-go的SDK使用方法,OpenTelemetry幫我們實現了相應語言的SDK,所以我們只需要進行調用即可,本文根據官方文檔實例講解,需要的朋友可以參考下
    2022-09-09
  • Go?time包AddDate使用解惑實例詳解

    Go?time包AddDate使用解惑實例詳解

    這篇文章主要為大家介紹了Go?time包AddDate使用解惑實例詳解,有需要的朋友可以借鑒參考下,希望能夠有所幫助,祝大家多多進步,早日升職加薪
    2022-09-09
  • golang包循環引用的幾種解決方案總結

    golang包循環引用的幾種解決方案總結

    golang有包循環引用問題,用過的應該都知道,下面這篇文章主要給大家介紹了關于golang包循環引用的幾種解決方案,文中通過實例代碼介紹的非常詳細,需要的朋友可以參考下
    2022-09-09
  • Go類型斷言提取測試接口值動態類型及靜態轉換確保類型接口編譯安全

    Go類型斷言提取測試接口值動態類型及靜態轉換確保類型接口編譯安全

    這篇文章主要為大家介紹了Go類型斷言提取測試接口值動態類型及靜態轉換確保類型實現特定接口的編譯時安全性詳解,有需要的朋友可以借鑒參考下,希望能夠有所幫助,祝大家多多進步,早日升職加薪
    2023-10-10
  • 在Golang中實現RSA算法的加解密操作詳解

    在Golang中實現RSA算法的加解密操作詳解

    RSA 是一種非對稱加密算法,廣泛使用于數據的安全傳輸,crypto/rsa 是 Golang 中實現了 RSA 算法的一個標準庫,提供了生成公私鑰對、加解密數據、簽名和驗簽等功能,本文給大家介紹了在Golang中實現RSA算法的加解密操作,需要的朋友可以參考下
    2023-12-12
  • GoLang中Json?Tag用法實例總結

    GoLang中Json?Tag用法實例總結

    這篇文章主要給大家介紹了關于GoLang中Json?Tag用法的相關資料,文中通過實例代碼介紹的非常詳細,對大家的學習或者工作具有一定的參考學習價值,需要的朋友可以參考下
    2022-02-02
  • C語言的10大基礎算法

    C語言的10大基礎算法

    算法是一個程序和軟件的靈魂,作為一名優秀的程序員,只有對一些基礎的算法有著全面的掌握,才會在設計程序和編寫代碼的過程中顯得得心應手。這篇文章主要介紹了C語言的10大基礎算法,需要的朋友可以參考下
    2019-09-09

最新評論
