基于Python編寫一個基于插件架構的圖片瀏覽器

更新時間：2025年01月08日 09:50:47 作者：winfredzhang

這篇文章主要為大家詳細介紹了如何使用Python開發一個基于插件架構的圖片瀏覽器,文中的示例代碼講解詳細,感興趣的小伙伴可以跟隨小編一起學習一下

項目概述

我們將開發一個具有以下功能的應用:

支持動態加載插件

可以瀏覽選擇圖片文件夾

以縮略圖方式顯示JPEG圖片

使用wxPython構建友好的用戶界面

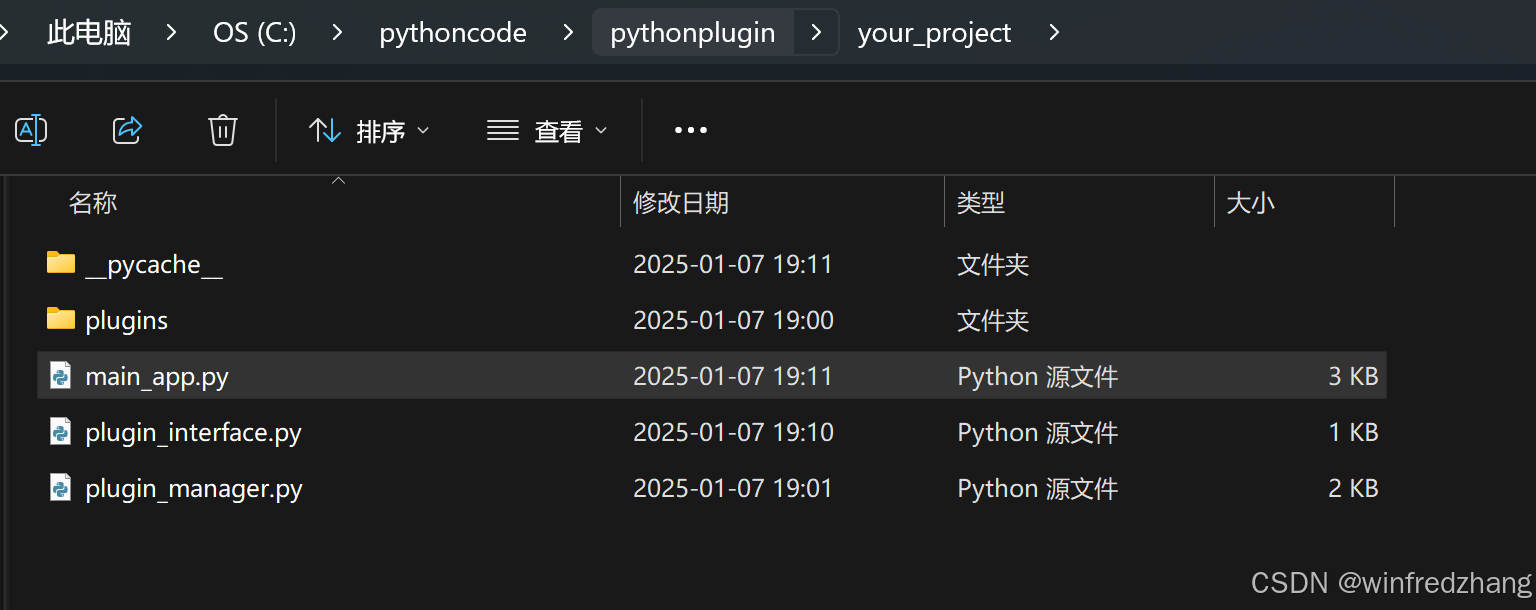

項目結構

項目采用如下目錄結構:

your_project/
├── main_app.py # 主程序
├── plugin_interface.py # 插件接口定義
├── plugin_manager.py # 插件管理器
└── plugins/ # 插件目錄
├── __init__.py
└── example_plugin.py # 示例插件

代碼實現

1. 插件接口 (plugin_interface.py)

首先定義插件接口,所有插件都需要繼承這個基類:

# plugin_interface.py
class PluginInterface:
    def __init__(self):
        self.name = "Base Plugin"
        self.description = "Base plugin description"
        self.parameters = {}

    def initialize(self):
        pass

    def execute(self, parameters=None):
        pass

    def cleanup(self):
        pass

2. 插件管理器 (plugin_manager.py)

插件管理器負責加載和管理插件:

# plugin_manager.py
import os
import importlib.util

???????class PluginManager:
    def __init__(self):
        self.plugins = {}

    def load_plugin(self, plugin_path):
        # 獲取插件文件名（不含擴展名）
        plugin_name = os.path.splitext(os.path.basename(plugin_path))[0]

        # 動態導入插件模塊
        spec = importlib.util.spec_from_file_location(plugin_name, plugin_path)
        module = importlib.util.module_from_spec(spec)
        spec.loader.exec_module(module)

        # 尋找繼承自PluginInterface的類
        for attr_name in dir(module):
            attr = getattr(module, attr_name)
            if isinstance(attr, type) and attr.__module__ == plugin_name and hasattr(attr, 'execute'):
                plugin_instance = attr()
                self.plugins[plugin_name] = plugin_instance
                break

    def load_plugins_from_directory(self, directory):
        if not os.path.exists(directory):
            os.makedirs(directory)

        for filename in os.listdir(directory):
            if filename.endswith('.py') and not filename.startswith('__'):
                plugin_path = os.path.join(directory, filename)
                self.load_plugin(plugin_path)

    def get_plugin(self, plugin_name):
        return self.plugins.get(plugin_name)

3. 圖片瀏覽插件 (example_plugin.py)

實現圖片瀏覽功能的插件:

# example_plugin.py
from plugin_interface import PluginInterface
import wx
import os
from PIL import Image
import io

class ThumbnailFrame(wx.Frame):
    def __init__(self, parent, title, image_folder):
        super().__init__(parent, title=title, size=(800, 600))

        self.panel = wx.ScrolledWindow(self)
        self.panel.SetScrollbars(1, 1, 1, 1)

        # 創建網格布局
        self.grid_sizer = wx.GridSizer(rows=0, cols=4, hgap=10, vgap=10)
        self.panel.SetSizer(self.grid_sizer)

        # 加載圖片
        self.load_images(image_folder)

    def load_images(self, folder_path):
        for filename in os.listdir(folder_path):
            if filename.lower().endswith(('.jpg', '.jpeg')):
                image_path = os.path.join(folder_path, filename)
                try:
                    # 使用PIL打開圖片并調整大小
                    with Image.open(image_path) as img:
                        # 調整圖片大小為縮略圖
                        img.thumbnail((150, 150))
                        # 轉換為wx.Bitmap
                        width, height = img.size
                        img_data = io.BytesIO()
                        img.save(img_data, format='PNG')
                        img_data = img_data.getvalue()
                        wx_image = wx.Image(io.BytesIO(img_data))
                        bitmap = wx_image.ConvertToBitmap()

                        # 創建圖片控件
                        img_button = wx.BitmapButton(self.panel, bitmap=bitmap)
                        img_button.SetToolTip(filename)

                        # 添加到網格
                        self.grid_sizer.Add(img_button, 0, wx.ALL, 5)
                except Exception as e:
                    print(f"Error loading image {filename}: {str(e)}")

        self.panel.Layout()

???????class ExamplePlugin(PluginInterface):
    def __init__(self):
        super().__init__()
        self.name = "Image Thumbnail Plugin"
        self.description = "Display thumbnails of JPEG images in a folder"

    def execute(self, parameters=None):
        if not parameters or 'image_folder' not in parameters:
            print("No image folder specified")
            return

        image_folder = parameters['image_folder']
        if not os.path.exists(image_folder):
            print(f"Folder does not exist: {image_folder}")
            return

        # 創建并顯示縮略圖窗口
        frame = ThumbnailFrame(None, "Image Thumbnails", image_folder)
        frame.Show()

4. 主程序 (main_app.py)

主程序創建GUI界面并協調插件的使用:

# main_app.py
import wx
from plugin_manager import PluginManager
import os

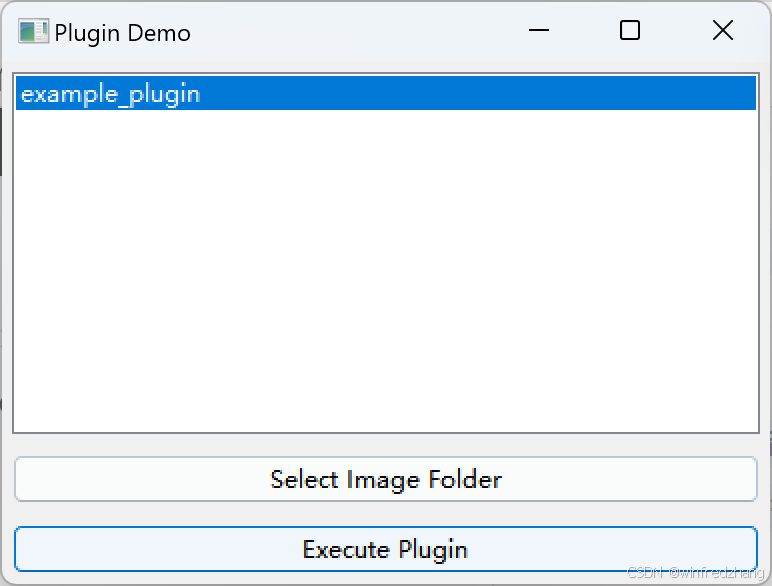

class MainFrame(wx.Frame):
    def __init__(self):
        super().__init__(parent=None, title='Plugin Demo', size=(400, 300))
        self.plugin_manager = PluginManager()

        # 加載插件
        self.plugin_manager.load_plugins_from_directory("plugins")

        # 創建界面
        self.init_ui()

    def init_ui(self):
        panel = wx.Panel(self)
        vbox = wx.BoxSizer(wx.VERTICAL)

        # 創建插件列表
        plugin_list = wx.ListBox(panel)
        for plugin_name in self.plugin_manager.plugins:
            plugin_list.Append(plugin_name)

        # 添加文件夾選擇按鈕
        select_folder_button = wx.Button(panel, label='Select Image Folder')
        select_folder_button.Bind(wx.EVT_BUTTON, self.on_select_folder)

        # 添加執行按鈕
        execute_button = wx.Button(panel, label='Execute Plugin')
        execute_button.Bind(wx.EVT_BUTTON, self.on_execute)

        vbox.Add(plugin_list, 1, wx.EXPAND | wx.ALL, 5)
        vbox.Add(select_folder_button, 0, wx.EXPAND | wx.ALL, 5)
        vbox.Add(execute_button, 0, wx.EXPAND | wx.ALL, 5)

        panel.SetSizer(vbox)
        self.plugin_list = plugin_list
        self.selected_folder = None

    def on_select_folder(self, event):
        dlg = wx.DirDialog(self, "Choose a directory:",
                          style=wx.DD_DEFAULT_STYLE)

        if dlg.ShowModal() == wx.ID_OK:
            self.selected_folder = dlg.GetPath()

        dlg.Destroy()

    def on_execute(self, event):
        selection = self.plugin_list.GetSelection()
        if selection != wx.NOT_FOUND:
            plugin_name = self.plugin_list.GetString(selection)
            plugin = self.plugin_manager.get_plugin(plugin_name)

            if plugin:
                if not self.selected_folder:
                    wx.MessageBox('Please select an image folder first!',
                                'No Folder Selected',
                                wx.OK | wx.ICON_INFORMATION)
                    return

                # 執行插件，傳入文件夾路徑
                plugin.execute({'image_folder': self.selected_folder})

???????if __name__ == '__main__':
    app = wx.App()
    frame = MainFrame()
    frame.Show()
    app.MainLoop()
