Python使用PIL構建圖片裁剪工具的實現步驟
C:\pythoncode\new\cropimageandsave.py
功能特性
圖片加載:支持加載 JPG 和 PNG 格式的圖片。
動態裁剪:通過鼠標繪制矩形選擇框進行裁剪。
縮放適配:圖片會根據面板大小自動縮放顯示。
保存裁剪結果:裁剪后的圖片可以保存為 PNG 文件。
代碼實現
完整代碼如下:
import wx
import os
from PIL import Image
class ImageCropperFrame(wx.Frame):
def __init__(self):
super().__init__(parent=None, title='圖片裁剪工具', size=(800, 600))
self.init_ui()
def init_ui(self):
# 創建菜單欄
menubar = wx.MenuBar()
file_menu = wx.Menu()
open_item = file_menu.Append(wx.ID_OPEN, '打開圖片', '打開一個圖片文件')
menubar.Append(file_menu, '文件')
self.SetMenuBar(menubar)
# 創建面板和圖片顯示控件
self.panel = wx.Panel(self)
self.image_panel = wx.Panel(self.panel)
self.image_panel.SetBackgroundColour(wx.Colour(200, 200, 200))
# 初始化變量
self.image = None
self.bitmap = None
self.start_pos = None
self.current_pos = None
self.is_drawing = False
# 設置布局
sizer = wx.BoxSizer(wx.VERTICAL)
sizer.Add(self.image_panel, 1, wx.EXPAND)
self.panel.SetSizer(sizer)
# 綁定事件
self.Bind(wx.EVT_MENU, self.on_open, open_item)
self.image_panel.Bind(wx.EVT_PAINT, self.on_paint)
self.image_panel.Bind(wx.EVT_LEFT_DOWN, self.on_left_down)
self.image_panel.Bind(wx.EVT_LEFT_UP, self.on_left_up)
self.image_panel.Bind(wx.EVT_MOTION, self.on_motion)
def on_open(self, event):
# 打開文件對話框
with wx.FileDialog(self, "選擇圖片文件",
wildcard="圖片文件 (*.jpg;*.jpeg;*.png)|*.jpg;*.jpeg;*.png",
style=wx.FD_OPEN | wx.FD_FILE_MUST_EXIST) as fileDialog:
if fileDialog.ShowModal() == wx.ID_CANCEL:
return
# 加載圖片
pathname = fileDialog.GetPath()
self.load_image(pathname)
self.image_path = pathname
def load_image(self, path):
# 使用PIL加載圖片
self.pil_image = Image.open(path)
# 轉換為wx.Bitmap
self.image = wx.Image(path, wx.BITMAP_TYPE_ANY)
# 調整圖片大小以適應窗口
self.scale_image()
self.Refresh()
def scale_image(self):
# 獲取面板大小
panel_size = self.image_panel.GetSize()
# 計算縮放比例
width_ratio = panel_size.width / self.image.GetWidth()
height_ratio = panel_size.height / self.image.GetHeight()
scale = min(width_ratio, height_ratio)
# 縮放圖片
new_width = int(self.image.GetWidth() * scale)
new_height = int(self.image.GetHeight() * scale)
self.image = self.image.Scale(new_width, new_height)
self.bitmap = wx.Bitmap(self.image)
# 保存縮放比例用于裁剪
self.scale_factor = scale
def on_paint(self, event):
dc = wx.PaintDC(self.image_panel)
if self.bitmap:
dc.DrawBitmap(self.bitmap, 0, 0)
# 繪制選擇框
if self.start_pos and self.current_pos:
dc.SetPen(wx.Pen(wx.RED, 1, wx.PENSTYLE_DOT))
dc.SetBrush(wx.TRANSPARENT_BRUSH)
x = min(self.start_pos[0], self.current_pos[0])
y = min(self.start_pos[1], self.current_pos[1])
w = abs(self.current_pos[0] - self.start_pos[0])
h = abs(self.current_pos[1] - self.start_pos[1])
dc.DrawRectangle(x, y, w, h)
def on_left_down(self, event):
self.start_pos = event.GetPosition()
self.current_pos = self.start_pos
self.is_drawing = True
def on_motion(self, event):
if self.is_drawing:
self.current_pos = event.GetPosition()
self.Refresh()
def on_left_up(self, event):
if self.is_drawing:
self.is_drawing = False
# 獲取選擇區域
x1 = min(self.start_pos[0], self.current_pos[0])
y1 = min(self.start_pos[1], self.current_pos[1])
x2 = max(self.start_pos[0], self.current_pos[0])
y2 = max(self.start_pos[1], self.current_pos[1])
# 轉換回原始圖片坐標
orig_x1 = int(x1 / self.scale_factor)
orig_y1 = int(y1 / self.scale_factor)
orig_x2 = int(x2 / self.scale_factor)
orig_y2 = int(y2 / self.scale_factor)
# 裁剪圖片
cropped = self.pil_image.crop((orig_x1, orig_y1, orig_x2, orig_y2))
# 生成保存路徑
directory = os.path.dirname(self.image_path)
filename = os.path.splitext(os.path.basename(self.image_path))[0]
save_path = os.path.join(directory, f"{filename}_cropped.png")
# 保存裁剪后的圖片
cropped.save(save_path)
# 顯示成功消息
wx.MessageBox(f"裁剪后的圖片已保存至:\n{save_path}",
"保存成功",
wx.OK | wx.ICON_INFORMATION)
# 重置選擇區域
self.start_pos = None
self.current_pos = None
self.Refresh()
if __name__ == '__main__':
app = wx.App()
frame = ImageCropperFrame()
frame.Show()
app.MainLoop()核心實現
圖片加載與縮放
使用 PIL.Image 加載圖片,并通過 wx.Image 將其轉換為適配 wxPython 的格式。同時,通過計算縮放比例,確保圖片適配顯示區域。
繪制矩形選擇框
利用 wx.PaintDC 繪制矩形選擇框,在鼠標事件(按下、移動、釋放)中動態更新選擇框。
裁剪與保存
通過 PIL.Image.crop 方法,根據用戶選擇的區域裁剪圖片,并自動生成裁剪后的文件路徑進行保存。

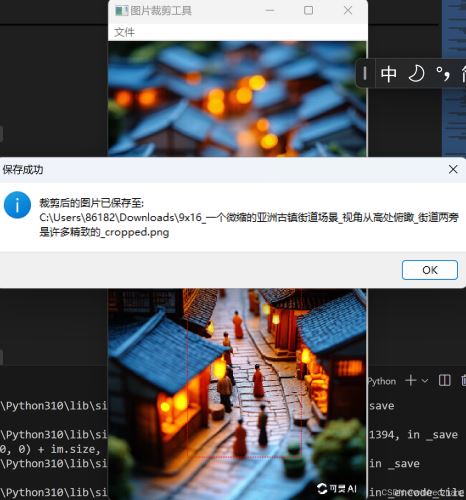

運行結果


總結
此工具簡單實用,能夠快速完成圖片裁剪任務。您可以根據實際需求進一步擴展,例如添加更多格式支持或多圖片批量裁剪功能。歡迎嘗試并提出您的建議!
到此這篇關于Python使用PIL構建圖片裁剪工具的實現步驟的文章就介紹到這了,更多相關Python PIL圖片裁剪工具內容請搜索腳本之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持腳本之家!
