Python基于YOLOv8和OpenCV實現車道線和車輛檢測功能

更新時間：2025年01月15日 09:51:31 作者：old_power

使用YOLOv8（You Only Look Once）和OpenCV實現車道線和車輛檢測,目標是創建一個可以檢測道路上的車道并識別車輛的系統,并估計它們與攝像頭的距離,這篇文章主要介紹了Python基于YOLOv8和OpenCV實現車道線和車輛檢測,需要的朋友可以參考下

使用YOLOv8（You Only Look Once）和OpenCV實現車道線和車輛檢測，目標是創建一個可以檢測道路上的車道并識別車輛的系統，并估計它們與攝像頭的距離。該項目結合了計算機視覺技術和深度學習物體檢測。

1、系統主要功能

車道檢測：使用邊緣檢測和霍夫線變換檢測道路車道。
汽車檢測：使用 YOLOv8 模型識別汽車并在汽車周圍繪制邊界框。
距離估計：使用邊界框大小計算檢測到的汽車與攝像頭的距離。

2、環境要求

OpenCV：用于圖像處理和車道檢測。
Ultralytics YOLOv8：用于車輛檢測。
NumPy：用于數組操作。

pip install opencv-python-headless numpy ultralytics

opencv-python 和 opencv-python-headless 區別是 OpenCV 的 Python 包，主要區別在于是否包含 GUI 相關的功能。

opencv-python

包含 GUI 功能：支持窗口顯示、鼠標事件等圖形界面操作。
依賴：需要 GUI 庫（如 GTK、Qt）支持。
適用場景：適用于需要顯示圖像或與用戶交互的環境，如桌面應用。

opencv-python-headless

不包含 GUI 功能：去除了窗口顯示和用戶交互功能。
依賴：無需 GUI 庫，適合無圖形界面的環境。
適用場景：適用于服務器或無圖形界面的環境，如遠程服務器、Docker 容器。

3、代碼

import cv2
import numpy as np
import math
import time
from ultralytics import YOLO  # YOLOv8 module
# Function to mask out the region of interest
def region_of_interest(img, vertices):
    mask = np.zeros_like(img)
    match_mask_color = 255
    cv2.fillPoly(mask, vertices, match_mask_color)
    masked_image = cv2.bitwise_and(img, mask)
    return masked_image
# Function to draw the filled polygon between the lane lines
def draw_lane_lines(img, left_line, right_line, color=[0, 255, 0], thickness=10):
    line_img = np.zeros_like(img)
    poly_pts = np.array([[
        (left_line[0], left_line[1]),
        (left_line[2], left_line[3]),
        (right_line[2], right_line[3]),
        (right_line[0], right_line[1])
    ]], dtype=np.int32)
    # Fill the polygon between the lines
    cv2.fillPoly(line_img, poly_pts, color)
    # Overlay the polygon onto the original image
    img = cv2.addWeighted(img, 0.8, line_img, 0.5, 0.0)
    return img
# The lane detection pipeline
def pipeline(image):
    height = image.shape[0]
    width = image.shape[1]
    region_of_interest_vertices = [
        (0, height),
        (width / 2, height / 2),
        (width, height),
    ]
    # Convert to grayscale and apply Canny edge detection
    gray_image = cv2.cvtColor(image, cv2.COLOR_RGB2GRAY)
    cannyed_image = cv2.Canny(gray_image, 100, 200)
    # Mask out the region of interest
    cropped_image = region_of_interest(
        cannyed_image,
        np.array([region_of_interest_vertices], np.int32)
    )
    # Perform Hough Line Transformation to detect lines
    lines = cv2.HoughLinesP(
        cropped_image,
        rho=6,
        theta=np.pi / 60,
        threshold=160,
        lines=np.array([]),
        minLineLength=40,
        maxLineGap=25
    )
    # Separating left and right lines based on slope
    left_line_x = []
    left_line_y = []
    right_line_x = []
    right_line_y = []
    if lines is None:
        return image
    for line in lines:
        for x1, y1, x2, y2 in line:
            slope = (y2 - y1) / (x2 - x1) if (x2 - x1) != 0 else 0
            if math.fabs(slope) < 0.5:  # Ignore nearly horizontal lines
                continue
            if slope <= 0:  # Left lane
                left_line_x.extend([x1, x2])
                left_line_y.extend([y1, y2])
            else:  # Right lane
                right_line_x.extend([x1, x2])
                right_line_y.extend([y1, y2])
    # Fit a linear polynomial to the left and right lines
    min_y = int(image.shape[0] * (3 / 5))  # Slightly below the middle of the image
    max_y = image.shape[0]  # Bottom of the image
    if left_line_x and left_line_y:
        poly_left = np.poly1d(np.polyfit(left_line_y, left_line_x, deg=1))
        left_x_start = int(poly_left(max_y))
        left_x_end = int(poly_left(min_y))
    else:
        left_x_start, left_x_end = 0, 0  # Defaults if no lines detected
    if right_line_x and right_line_y:
        poly_right = np.poly1d(np.polyfit(right_line_y, right_line_x, deg=1))
        right_x_start = int(poly_right(max_y))
        right_x_end = int(poly_right(min_y))
    else:
        right_x_start, right_x_end = 0, 0  # Defaults if no lines detected
    # Create the filled polygon between the left and right lane lines
    lane_image = draw_lane_lines(
        image,
        [left_x_start, max_y, left_x_end, min_y],
        [right_x_start, max_y, right_x_end, min_y]
    )
    return lane_image
# Function to estimate distance based on bounding box size
def estimate_distance(bbox_width, bbox_height):
    # For simplicity, assume the distance is inversely proportional to the box size
    # This is a basic estimation, you may use camera calibration for more accuracy
    focal_length = 1000  # Example focal length, modify based on camera setup
    known_width = 2.0  # Approximate width of the car (in meters)
    distance = (known_width * focal_length) / bbox_width  # Basic distance estimation
    return distance
# Main function to read and process video with YOLOv8
def process_video():
    # Load the YOLOv8 model
    model = YOLO('weights/yolov8n.pt')
    # 或者加載官方模型
    # model = YOLO("yolov8n.pt")  # load an official model
    # Open the video file
    cap = cv2.VideoCapture('video/video.mp4')
    # Check if video opened successfully
    if not cap.isOpened():
        print("Error: Unable to open video file.")
        return
    # Set the desired frame rate
    target_fps = 30
    frame_time = 1.0 / target_fps  # Time per frame to maintain 30fps
    # Resize to 720p (1280x720)
    cap.set(cv2.CAP_PROP_FRAME_WIDTH, 1280)
    cap.set(cv2.CAP_PROP_FRAME_HEIGHT, 720)
    # Loop through each frame
    while cap.isOpened():
        ret, frame = cap.read()
        if not ret:
            break
        # Resize frame to 720p
        resized_frame = cv2.resize(frame, (1280, 720))
        # Run the lane detection pipeline
        lane_frame = pipeline(resized_frame)
        # Run YOLOv8 to detect cars in the current frame
        results = model(resized_frame)
        # Process the detections from YOLOv8
        for result in results:
            boxes = result.boxes
            for box in boxes:
                x1, y1, x2, y2 = map(int, box.xyxy[0])  # Bounding box coordinates
                conf = box.conf[0]  # Confidence score
                cls = int(box.cls[0])  # Class ID
                # Only draw bounding boxes for cars with confidence >= 0.5
                if model.names[cls] == 'car' and conf >= 0.5:
                    label = f'{model.names[cls]} {conf:.2f}'
                    # Draw the bounding box
                    cv2.rectangle(lane_frame, (x1, y1), (x2, y2), (0, 255, 255), 2)
                    cv2.putText(lane_frame, label, (x1, y1 - 10),
                                cv2.FONT_HERSHEY_SIMPLEX, 0.5, (0, 255, 255), 2)
                    # Estimate the distance of the car
                    bbox_width = x2 - x1
                    bbox_height = y2 - y1
                    distance = estimate_distance(bbox_width, bbox_height)
                    # Display the estimated distance
                    distance_label = f'Distance: {distance:.2f}m'
                    cv2.putText(lane_frame, distance_label, (x1, y2 + 20),
                                cv2.FONT_HERSHEY_SIMPLEX, 0.5, (255, 0, 0), 2)
        # Display the resulting frame with both lane detection and car detection
        cv2.imshow('Lane and Car Detection', lane_frame)
        # Limit the frame rate to 30fps
        time.sleep(frame_time)
        # Break the loop when 'q' is pressed
        if cv2.waitKey(1) & 0xFF == ord('q'):
            break
    # Release video capture and close windows
    cap.release()
    cv2.destroyAllWindows()
# Run the video processing function
process_video()

4、工作原理

4.1 車道線檢測 Pipeline

車道線檢測包括一下幾個步驟:

Step 1: 屏蔽感興趣區域（ROI）
只處理圖像的下半部分（車道線通常是可見的）。

def region_of_interest(img, vertices):
    mask = np.zeros_like(img)
    match_mask_color = 255
    cv2.fillPoly(mask, vertices, match_mask_color)
    masked_image = cv2.bitwise_and(img, mask)
    return masked_image

Step 2: 使用Canny進行邊緣檢測
將圖像轉換為灰度，并應用Canny邊緣檢測來突出顯示邊緣。

gray_image = cv2.cvtColor(image, cv2.COLOR_RGB2GRAY)
cannyed_image = cv2.Canny(gray_image, 100, 200)

Step 3: 霍夫線變換
霍夫線變換用于檢測當前車道的線段。

lines = cv2.HoughLinesP(
    cropped_image,
    rho=6,
    theta=np.pi / 60,
    threshold=160,
    lines=np.array([]),
    minLineLength=40,
    maxLineGap=25
)

4.2 使用YOLOv8進行車輛檢測

Step 1: 加載YOLOv8模型
我們使用預訓練的YOLOv8模型來檢測每一幀中的汽車（或者使用官方提供的模型）。

from ultralytics import YOLO
model = YOLO('weights/yolov8n.pt')
# model = YOLO('yolov8n.pt') #官方提供的模型

Step 2: 繪制邊界框
對于每一輛檢測到的汽車，繪制邊界框，并顯示類名（汽車）和置信度分?jǐn)?shù)。

for box in boxes:
    x1, y1, x2, y2 = map(int, box.xyxy[0])
    conf = box.conf[0]
    if model.names[cls] == 'car' and conf >= 0.5:
        label = f'{model.names[cls]} {conf:.2f}'
        cv2.rectangle(lane_frame, (x1, y1), (x2, y2), (0, 255, 255), 2)
        cv2.putText(lane_frame, label, (x1, y1 - 10), cv2.FONT_HERSHEY_SIMPLEX, 0.5, (0, 255, 255), 2)

Step 3:. 距離估計
根據邊界框的大小估計到每輛檢測到的汽車的距離。

def estimate_distance(bbox_width, bbox_height):
    focal_length = 1000  # Example focal length
    known_width = 2.0  # Approximate width of a car (in meters)
    distance = (known_width * focal_length) / bbox_width
    return distance

Step 4:. 視頻處理 Pipeline
將車道檢測、車輛檢測和距離估計結合到一個實時視頻處理pipeline中。

while cap.isOpened():
    ret, frame = cap.read()
    if not ret:
        break
    lane_frame = pipeline(resized_frame)
    results = model(resized_frame)
    for result in results:
        # Draw bounding boxes and estimate distance
    cv2.imshow('Lane and Car Detection', lane_frame)
    if cv2.waitKey(1) & 0xFF == ord('q'):
        break

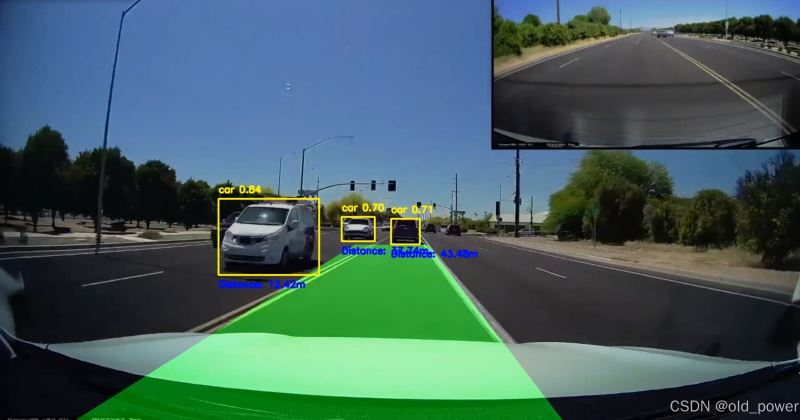

5、結果

項目源碼地址: https://github.com/CityIsBetter/Lane_Detection

到此這篇關于Python基于YOLOv8和OpenCV實現車道線和車輛檢測的文章就介紹到這了,更多相關Python YOLOv8和OpenCV車道線檢測內容請搜索腳本之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持腳本之家！
