基于Python開發Office文檔圖片提取器

 更新時間:2025年01月19日 09:53:00   作者:黑客白澤
這篇文章主要為大家詳細介紹了一個基于PyQt5開發的桌面應用,可以實現Office文檔圖片提取功能,文中的示例代碼講解詳細,需要的可以參考一下

1. 簡介

本程序是一個基于PyQt5開發的桌面應用,名為“Office文檔圖片批量提取工具”。其主要功能是從各種Office文檔(包括.doc、.docx、.xls、.xlsx、.ppt、.pptx)中提取圖片,并將提取的圖片保存在指定的目錄中。用戶可以通過該工具批量操作多個文件,并查看提取日志。

功能簡介

1.文件選擇:

  • 用戶可以通過點擊“添加文件”按鈕選擇多個Office文件(.doc、.docx、.xls、.xlsx、.ppt、.pptx)。
  • 支持拖拽文件到文件列表中進行快速添加。
  • 用戶還可以通過“移除選中”按鈕刪除選中的文件。

2.輸出目錄選擇:

用戶可以選擇保存提取圖片的輸出目錄,確保所有提取的圖片都能保存在指定位置。

3.提取功能:

  • 點擊“提取圖片”按鈕后,程序會根據文件類型自動調用相應的函數提取圖片。
  • 支持從.docx、.xlsx、.pptx等文件格式中提取圖片。
  • 對于.doc、.xls、.ppt文件,使用win32com.client處理,這需要在Windows環境下運行。

4.日志記錄:

  • 提取過程中的每一條記錄(包括文件名、圖片名稱、保存路徑)都會被記錄在提取日志表格中,方便用戶查看提取結果。
  • 如果某個文件沒有找到圖片,或者發生錯誤,日志中會顯示相應的提示。

5.用戶界面:

  • 用戶界面簡潔,分為多個區域:文件選擇框、輸出目錄設置、提取日志框。
  • 支持水平和垂直布局,確保界面簡潔且功能齊全。

6.錯誤處理:

  • 如果沒有添加任何文件或沒有選擇輸出目錄,程序會彈出警告框提示用戶。
  • 在提取過程中,任何錯誤都會被捕獲并記錄到日志中,用戶能夠快速查看錯誤原因。

技術實現

PyQt5:用于構建用戶界面。

docx、openpyxl、python-pptx:用于處理不同類型的Office文檔。

Pillow:用于圖像處理和保存。

win32com.client:用于處理Windows特定的.doc、.ppt文件。

QTableWidget:用于顯示提取日志。

該程序使用戶能夠高效、批量地從多種Office文檔中提取圖像,并對提取結果進行查看和管理。

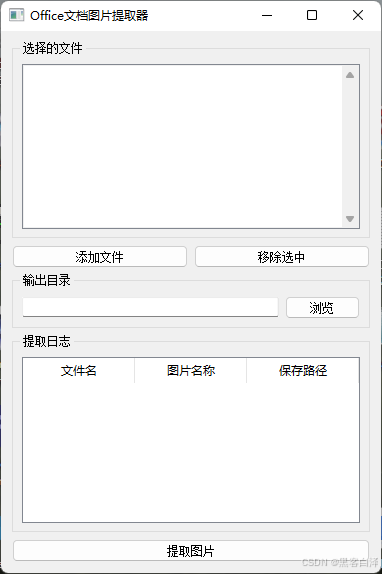

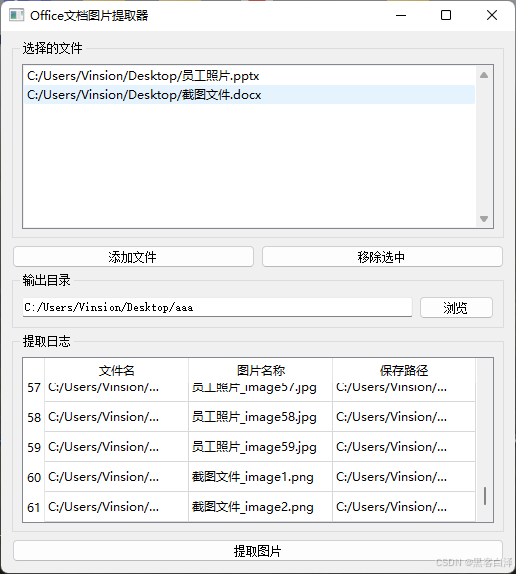

2. 運行效果

3. 相關源碼

import sys
import os
from PyQt5.QtWidgets import QApplication, QWidget, QVBoxLayout, QHBoxLayout, QGridLayout, QPushButton, QLabel, QLineEdit, QFileDialog, QListWidget, QTableWidget, QTableWidgetItem, QHeaderView, QAbstractItemView, QGroupBox, QMessageBox, QSpacerItem, QSizePolicy
from PyQt5.QtCore import Qt
from PyQt5.QtGui import QDragEnterEvent, QDropEvent
from docx import Document
from PIL import Image
from io import BytesIO
from openpyxl import load_workbook
from pptx import Presentation
import win32com.client  # 用于處理 .doc 和 .ppt 文件(Windows特定)


class OptimizedUI(QWidget):
    def __init__(self):
        super().__init__()

        self.setWindowTitle("Office文檔圖片提取器")
        self.setGeometry(100, 100, 800, 600)

        self.init_ui()

    def init_ui(self):
        layout = QVBoxLayout(self)

        # 文件選擇框
        file_frame = QGroupBox("選擇的文件")
        file_layout = QVBoxLayout()
        self.file_list = QListWidget()
        self.file_list.setSelectionMode(QAbstractItemView.MultiSelection)
        file_layout.addWidget(self.file_list)

        # ScrollBar
        self.file_list.setVerticalScrollBarPolicy(Qt.ScrollBarAlwaysOn)
        file_frame.setLayout(file_layout)

        # 按鈕
        button_layout = QHBoxLayout()
        add_button = QPushButton("添加文件")
        add_button.clicked.connect(self.browse_files)
        remove_button = QPushButton("移除選中")
        remove_button.clicked.connect(self.remove_files)

        button_layout.addWidget(add_button)
        button_layout.addWidget(remove_button)

        # 輸出目錄
        output_frame = QGroupBox("輸出目錄")
        output_layout = QHBoxLayout()
        self.output_folder = QLineEdit()
        browse_button = QPushButton("瀏覽")
        browse_button.clicked.connect(self.browse_output_folder)
        output_layout.addWidget(self.output_folder)
        output_layout.addWidget(browse_button)
        output_frame.setLayout(output_layout)

        # 提取日志框
        log_frame = QGroupBox("提取日志")
        log_layout = QVBoxLayout()
        self.log_table = QTableWidget(0, 3)
        self.log_table.setHorizontalHeaderLabels(["文件名", "圖片名稱", "保存路徑"])
        self.log_table.horizontalHeader().setSectionResizeMode(0, QHeaderView.Stretch)
        self.log_table.horizontalHeader().setSectionResizeMode(1, QHeaderView.Stretch)
        self.log_table.horizontalHeader().setSectionResizeMode(2, QHeaderView.Stretch)
        log_layout.addWidget(self.log_table)
        log_frame.setLayout(log_layout)

        # 提取按鈕
        extract_button = QPushButton("提取圖片")
        extract_button.clicked.connect(self.extract_and_log)

        # 布局
        layout.addWidget(file_frame)
        layout.addLayout(button_layout)
        layout.addWidget(output_frame)
        layout.addWidget(log_frame)
        layout.addWidget(extract_button)

        self.setLayout(layout)

        # 啟用拖放文件功能
        self.setAcceptDrops(True)

    def browse_files(self):
        files, _ = QFileDialog.getOpenFileNames(self, "選擇文件", "", "Office Files (*.doc *.docx *.xls *.xlsx *.ppt *.pptx)")
        if files:
            self.file_list.addItems(files)

    def remove_files(self):
        selected_items = self.file_list.selectedItems()
        for item in selected_items:
            self.file_list.takeItem(self.file_list.row(item))

    def browse_output_folder(self):
        folder = QFileDialog.getExistingDirectory(self, "選擇輸出目錄")
        if folder:
            self.output_folder.setText(folder)

    def extract_and_log(self):
        files = [self.file_list.item(i).text() for i in range(self.file_list.count())]
        output_dir = self.output_folder.text()

        if not files:
            QMessageBox.warning(self, "警告", "請至少添加一個文件。")
            return

        if not output_dir:
            QMessageBox.warning(self, "警告", "請選擇輸出目錄。")
            return

        log_data = []  # 用于保存日志信息

        for file_path in files:
            try:
                for image_name, image_path in self.extract_images(file_path, output_dir):
                    if image_name:
                        log_data.append((file_path, image_name, image_path))
                    else:
                        log_data.append((file_path, "N/A", image_path))
            except ValueError as e:
                log_data.append((file_path, "N/A", f"錯誤:{str(e)}"))

        self.update_log_table(log_data)

    def update_log_table(self, log_data):
        self.log_table.setRowCount(0)  # 清空表格
        for row, log_entry in enumerate(log_data):
            self.log_table.insertRow(row)
            for col, value in enumerate(log_entry):
                self.log_table.setItem(row, col, QTableWidgetItem(value))

    def extract_images(self, file_path, output_dir):
        """根據文件類型調用不同的提取圖片函數。"""
        if file_path.endswith(".docx"):
            return self.extract_images_from_docx(file_path, output_dir)
        elif file_path.endswith(".xlsx"):
            return self.extract_images_from_xlsx(file_path, output_dir)
        elif file_path.endswith(".pptx"):
            return self.extract_images_from_pptx(file_path, output_dir)
        elif file_path.endswith(".doc"):
            return self.extract_images_from_doc(file_path, output_dir)
        elif file_path.endswith(".xls"):
            return self.extract_images_from_xls(file_path, output_dir)
        elif file_path.endswith(".ppt"):
            return self.extract_images_from_ppt(file_path, output_dir)
        else:
            raise ValueError("不支持的文件類型")

    def extract_images_from_docx(self, file_path, output_dir):
        """從 .docx 文件中提取圖片并保存到輸出目錄。"""
        try:
            doc = Document(file_path)
            image_count = 0
            for rel in doc.part.rels.values():
                if "image" in rel.target_ref:
                    image_count += 1
                    image_data = rel.target_part.blob
                    image = Image.open(BytesIO(image_data))

                    ext = image.format.lower()
                    image_name = f"{os.path.splitext(os.path.basename(file_path))[0]}_image{image_count}.{ext}"
                    image_path = os.path.join(output_dir, image_name)
                    image.save(image_path)

                    yield image_name, image_path

            if image_count == 0:
                yield None, "未找到圖片。"

        except Exception as e:
            yield None, f"錯誤:{str(e)}"

    def extract_images_from_xlsx(self, file_path, output_dir):
        """從 .xlsx 文件中提取圖片并保存到輸出目錄。"""
        try:
            workbook = load_workbook(file_path)
            image_count = 0
            for sheet in workbook.sheetnames:
                sheet_obj = workbook[sheet]
                for image in sheet_obj._images:
                    image_count += 1
                    image_data = image.ref
                    img = Image.open(BytesIO(image_data))

                    ext = img.format.lower()
                    image_name = f"{os.path.splitext(os.path.basename(file_path))[0]}_image{image_count}.{ext}"
                    image_path = os.path.join(output_dir, image_name)
                    img.save(image_path)

                    yield image_name, image_path

            if image_count == 0:
                yield None, "未找到圖片。"

        except Exception as e:
            yield None, f"錯誤:{str(e)}"

    def extract_images_from_pptx(self, file_path, output_dir):
        """從 .pptx 文件中提取圖片并保存到輸出目錄。"""
        try:
            prs = Presentation(file_path)
            image_count = 0

            for slide in prs.slides:
                for shape in slide.shapes:
                    if shape.shape_type == 13:  # 圖片類型
                        image_stream = shape.image.blob  # 獲取圖像流

                        ext = shape.image.ext.lower()  # 使用圖片的擴展名(如jpg, png)
                        image_name = f"{os.path.splitext(os.path.basename(file_path))[0]}_image{image_count + 1}.{ext}"
                        image_path = os.path.join(output_dir, image_name)

                        image = Image.open(BytesIO(image_stream))
                        image.save(image_path)

                        image_count += 1  # 圖片計數
                        yield image_name, image_path

            if image_count == 0:
                yield None, "未找到圖片。"

        except Exception as e:
            yield None, f"錯誤:{str(e)}"

    def extract_images_from_doc(self, file_path, output_dir):
        """從 .doc 文件中提取圖片(Windows特定,使用win32com)。"""
        try:
            word = win32com.client.Dispatch("Word.Application")
            doc = word.Documents.Open(file_path)
            image_count = 0

            for shape in doc.Shapes:
                if shape.Type == 13:  # 圖片類型
                    image_count += 1
                    image_stream = shape.PictureFormat.Picture
                    image = Image.open(BytesIO(image_stream))

                    ext = image.format.lower()
                    image_name = f"{os.path.splitext(os.path.basename(file_path))[0]}_image{image_count}.{ext}"
                    image_path = os.path.join(output_dir, image_name)
                    image.save(image_path)

                    yield image_name, image_path

            if image_count == 0:
                yield None, "未找到圖片。"

        except Exception as e:
            yield None, f"錯誤:{str(e)}"
        finally:
            word.Quit()

    def extract_images_from_xls(self, file_path, output_dir):
        """從 .xls 文件中提取圖片(Windows特定,使用xlrd或openpyxl)。"""
        try:
            import xlrd
            workbook = xlrd.open_workbook(file_path)
            image_count = 0
            yield None, "暫不支持的圖片提取。"

        except Exception as e:
            yield None, f"錯誤:{str(e)}"

    def extract_images_from_ppt(self, file_path, output_dir):
        """從 .ppt 文件中提取圖片(Windows特定,使用win32com)。"""
        try:
            ppt = win32com.client.Dispatch("PowerPoint.Application")
            presentation = ppt.Presentations.Open(file_path)
            image_count = 0

            for slide in presentation.Slides:
                for shape in slide.Shapes:
                    if shape.Type == 13:  # 圖片類型
                        image_count += 1
                        image_stream = shape.PictureFormat.Picture
                        image = Image.open(BytesIO(image_stream))

                        ext = image.format.lower()
                        image_name = f"{os.path.splitext(os.path.basename(file_path))[0]}_image{image_count}.{ext}"
                        image_path = os.path.join(output_dir, image_name)
                        image.save(image_path)

                        yield image_name, image_path

            if image_count == 0:
                yield None, "未找到圖片。"

        except Exception as e:
            yield None, f"錯誤:{str(e)}"
        finally:
            ppt.Quit()

    def dragEnterEvent(self, event):
        """處理拖拽進入事件"""
        if event.mimeData().hasUrls():
            event.acceptProposedAction()

    def dropEvent(self, event):
        """處理拖拽釋放事件"""
        for url in event.mimeData().urls():
            file_path = url.toLocalFile()
            if os.path.isfile(file_path):
                self.file_list.addItem(file_path)

# 運行應用
if __name__ == "__main__":
    app = QApplication(sys.argv)
    window = OptimizedUI()
    window.show()
    sys.exit(app.exec_())

到此這篇關于基于Python開發Office文檔圖片提取器的文章就介紹到這了,更多相關Python Office文檔圖片提取器內容請搜索腳本之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持腳本之家!

相關文章

  • python實現對excel中需要的數據的單元格填充顏色

    python實現對excel中需要的數據的單元格填充顏色

    這篇文章主要介紹了python實現對excel中需要的數據的單元格填充顏色,文章圍繞主題展開詳細單元格填充介紹,具有一定的參考價值,需要的小伙伴可以參考一下
    2022-06-06
  • 深入剖析Python的爬蟲框架Scrapy的結構與運作流程

    深入剖析Python的爬蟲框架Scrapy的結構與運作流程

    這篇文章主要介紹了Python的爬蟲框架Scrapy的結構與運作流程,并以一個實際的項目來講解Scrapy的原理機制,十分推薦!需要的朋友可以參考下
    2016-01-01
  • python標準庫os庫的函數介紹

    python標準庫os庫的函數介紹

    這篇文章主要介紹了python標準庫os庫的函數介紹,需要的朋友可以參考下
    2020-02-02
  • Python協程的四種實現方式總結

    Python協程的四種實現方式總結

    今天繼續給大家介紹Python關知識,本文主要內容是Python協程的四種實現方式。文中的示例代碼講解詳細,感興趣的小伙伴可以跟隨小編一起學習一下
    2023-01-01
  • selenium環境搭建及基本元素定位方式詳解

    selenium環境搭建及基本元素定位方式詳解

    selenium最初是一個自動化測試工具,而爬蟲中使用它主要是為了解決requests無法執行javaScript代碼的問題,這篇文章主要介紹了selenium環境搭建及基本元素定位方式,需要的朋友可以參考下
    2023-04-04
  • Python 實現一個簡單的web服務器

    Python 實現一個簡單的web服務器

    這篇文章主要介紹了Python 實現一個簡單的web服務器的方法,幫助大家更好的理解和學習python,感興趣的朋友可以了解下
    2021-01-01
  • 利用python畫一顆心的方法示例

    利用python畫一顆心的方法示例

    最近工作中要用到python的統計和繪圖功能,無意間搜索到了這個,還挺有意思的。就分享給大家,下面這篇文章主要介紹了利用python畫一顆心的方法示例,需要的朋友可以參考借鑒,一起來看看吧。
    2017-01-01
  • 深入了解python裝飾器

    深入了解python裝飾器

    這篇文章主要介紹了解python裝飾器,裝飾器定義一個為其他函數添加功能的函數,裝飾器就是在不修改裝飾對象源代碼以及調用方式的前提下,為裝飾對象添加新功能,下面和小編一起進入文章內容了解更多知識,需要的朋友可以參考一下
    2022-03-03
  • python實現圖片橫向和縱向拼接

    python實現圖片橫向和縱向拼接

    這篇文章主要為大家詳細介紹了python實現圖片橫向和縱向拼接,文中示例代碼介紹的非常詳細,具有一定的參考價值,感興趣的小伙伴們可以參考一下
    2020-03-03
  • 代碼講解Python對Windows服務進行監控

    代碼講解Python對Windows服務進行監控

    本篇文章給大家分享了通過Python對Windows服務進行監控的實例代碼,對此有興趣的朋友可以學習參考下。
    2018-02-02

最新評論
