pip install SciencePlots

import matplotlib.font_manager as fm
import os
# 字體文件夾路徑
font_dir = r'C:\Windows\Fonts'  # Windows系統字體路徑
# 獲取字體文件
font_files = fm.findSystemFonts(fontpaths=[font_dir])
# 添加字體
for font_file in font_files:
    fm.fontManager.addfont(font_file)

import matplotlib.pyplot as plt
import scienceplots
# 基礎科學風格
plt.style.use(['science'])
# 科學風格 + 明亮主題 + 中文支持
plt.style.use(['science', 'bright', 'no-latex', 'cjk-sc-font'])
# IEEE期刊風格
plt.style.use(['science', 'ieee'])

import numpy as np
import matplotlib.pyplot as plt
from matplotlib.colors import ListedColormap
import scienceplots
# 設置繪圖風格
plt.style.use(['science', 'bright', 'no-latex','grid', 'cjk-sc-font'])
def create_custom_cmap():
    """創建自定義漸變色映射"""
    # 定義顏色
    color_a_hex = "#C6DFDF"
    color_b_hex = "#6a73cf"
    def hex_to_rgb(hex_color):
        hex_color = hex_color.lstrip('#')
        return tuple(int(hex_color[i:i+2], 16) for i in (0, 2, 4))
    def interpolate_color(color1, color2, steps):
        delta_r = (color2[0] - color1[0]) / steps
        delta_g = (color2[1] - color1[1]) / steps
        delta_b = (color2[2] - color1[2]) / steps
        colors = []
        for i in range(steps + 1):
            r = color1[0] + delta_r * i
            g = color1[1] + delta_g * i
            b = color1[2] + delta_b * i
            colors.append((r/255.0, g/255.0, b/255.0))
        return colors
    color_a = hex_to_rgb(color_a_hex)
    color_b = hex_to_rgb(color_b_hex)
    colors = interpolate_color(color_a, color_b, 100)
    return ListedColormap(colors)

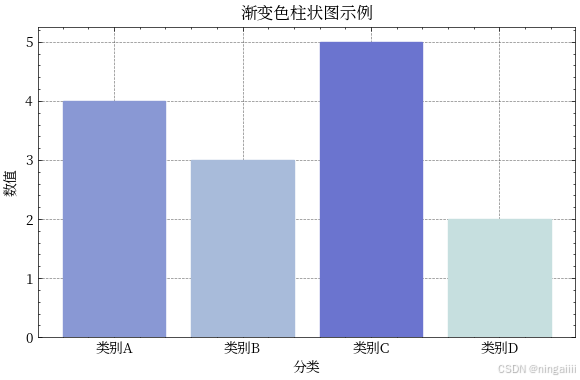

# 創建示例數據
categories = ['類別A', '類別B', '類別C', '類別D']
values = [4, 3, 5, 2]
# 創建圖表
fig, ax = plt.subplots(figsize=(6, 4))
# 創建漸變色映射
cmap = create_custom_cmap()
# 繪制柱狀圖，為每個柱子設置不同的顏色
bars = ax.bar(categories, values)
# 為每個柱子設置漸變色
for i, bar in enumerate(bars):
    # 根據值的大小計算顏色索引
    color_idx = int((values[i] - min(values)) / (max(values) - min(values)) * 99)
    bar.set_color(cmap(color_idx))
# 設置標簽和標題
ax.set_xlabel('分類')
ax.set_ylabel('數值')
ax.set_title('漸變色柱狀圖示例')
# 調整布局
plt.tight_layout()
# 顯示圖表
plt.show()

plt.style.use(['science', 'bright', 'no-latex'])
# 創建圖表
fig, ax = plt.subplots(figsize=(8, 6))
# 設置邊距
plt.tight_layout(pad=1.5)
# 添加網格線
ax.grid(True, linestyle='--', alpha=0.7)
# 設置圖例位置
ax.legend(loc='upper right', bbox_to_anchor=(1.15, 1))

# 設置高DPI輸出
plt.savefig('figure.png', dpi=300, bbox_inches='tight')
