利用python抓取HTML頁面數據并作可視化數據分析

 更新時間:2025年04月20日 10:16:09   作者:@半良人
這篇文章主要為大家詳細介紹了如何利用python抓取HTML頁面數據并作可視化數據分析,文中的示例代碼講解詳細,感興趣的小伙伴可以參考一下

本文所展示的代碼是一個完整的數據采集、處理與可視化工具,主要用于從指定網站下載Excel文件,解析其中的數據,并生成投資者數量的趨勢圖表。以下是代碼的主要功能模塊及其作用:

1.網頁數據獲取

使用fetch_html_page函數從目標網站抓取HTML頁面內容。

通過parse_html_for_excel_links解析HTML內容,提取所有Excel文件鏈接。

利用parse_html_for_max_page解析最大分頁數,確保能夠遍歷所有頁面。

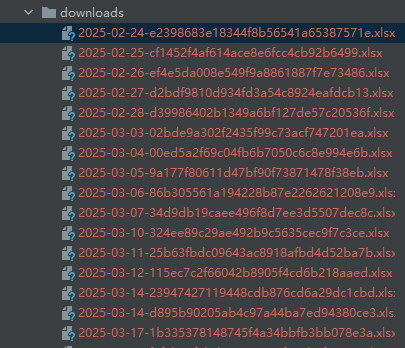

2.文件下載與存儲

download_excel_file負責根據Excel文件的URL下載文件并保存到本地指定路徑。

download_excel_data實現批量下載功能,支持多頁數據的完整采集。

3.數據讀取與處理

read_excel_file使用pandas庫讀取Excel文件內容。
process_excel_data將Excel數據轉換為字典格式,便于后續處理。
process_downloaded_files批量處理下載的Excel文件,提取關鍵數據并存儲為列表。

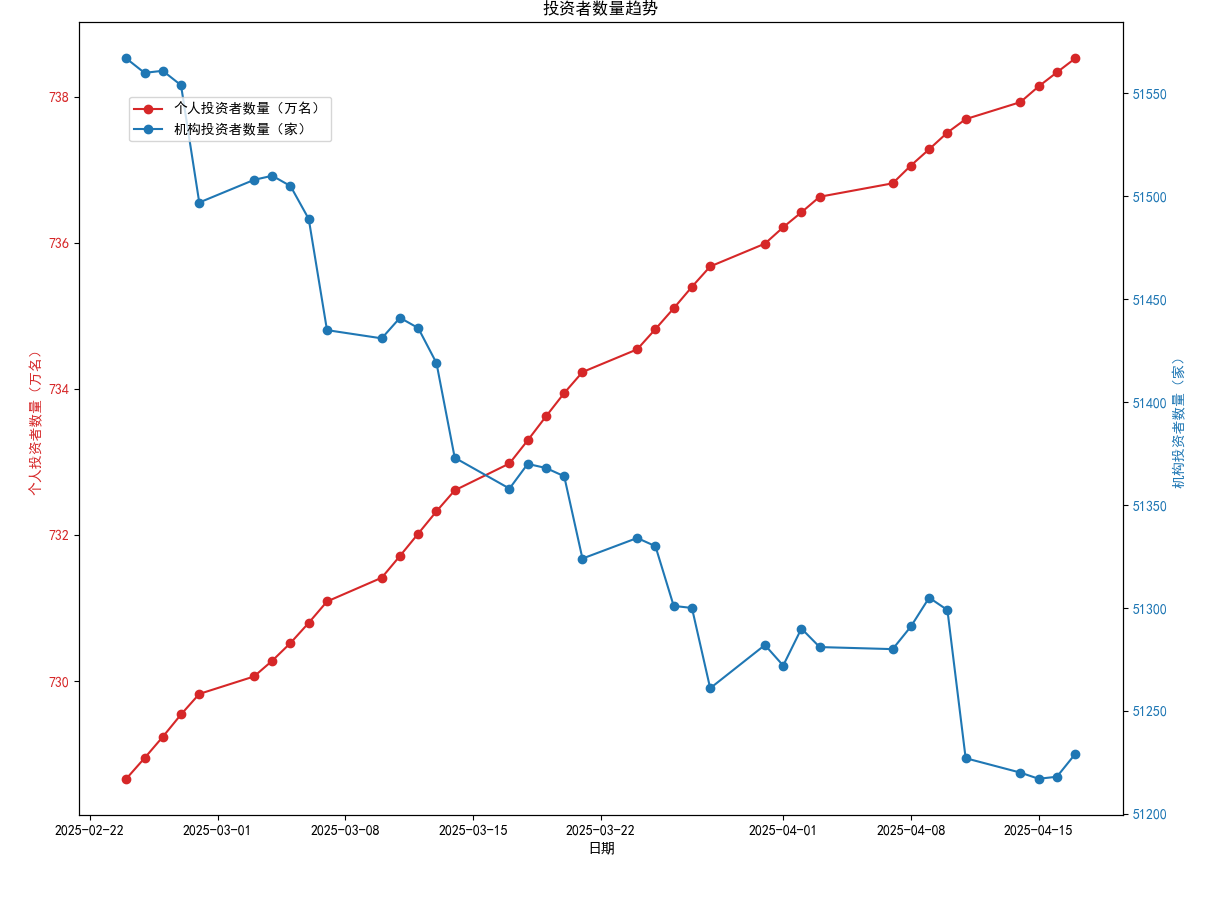

4.數據可視化

plot_investor_trends利用matplotlib繪制雙Y軸折線圖,展示個人投資者和機構投資者的數量變化趨勢。

圖表包含日期、個人投資者數量(萬名)和機構投資者數量(家),并通過不同顏色區分?jǐn)?shù)據系列。

整體流程

代碼從指定網站抓取數據,自動下載相關Excel文件。

解析Excel文件中的投資者數據,并生成趨勢圖表以直觀展示數據變化。

import warnings

import requests
from bs4 import BeautifulSoup
import pandas as pd
import os
import re
import matplotlib

# 設置matplotlib的字體配置,以支持中文顯示
matplotlib.rcParams['font.sans-serif'] = ['SimHei']  # 或者 ['Microsoft YaHei']
matplotlib.rcParams['axes.unicode_minus'] = False
matplotlib.use('TkAgg')
from matplotlib import pyplot as plt


def fetch_html_page(url):
    """
    獲取HTML頁面內容。

    參數:
    url (str): 目標網頁的URL。

    返回:
    str: 頁面的HTML內容,如果請求失敗則返回None。
    """
    headers = {
        "User-Agent": "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/91.0.4472.124 Safari/537.36"
    }
    response = requests.get(url, headers=headers)
    if response.status_code == 200:
        print(f"成功獲取頁面: {url}")
        return response.text
    else:
        print(f"Error: {response.status_code}, {response.text}")
        return None


def parse_html_for_excel_links(html_content):
    """
    解析HTML內容中的Excel鏈接。

    參數:
    html_content (str): HTML頁面內容。

    返回:
    list: 包含所有找到的Excel文件鏈接的列表。
    """
    soup = BeautifulSoup(html_content, 'html.parser')
    excel_links = []
    for a_tag in soup.find_all('a', href=True):
        href = a_tag.get('href')
        if href and href.endswith('.xlsx'):
            excel_links.append(href)
    return excel_links


def parse_html_for_max_page(html_content):
    """
    解析HTML內容以找到最大頁面數。

    參數:
    html_content (str): HTML頁面內容。

    返回:
    int: 最大頁面數。
    """
    soup = BeautifulSoup(html_content, 'html.parser')
    max_page = 1
    for a_tag in soup.find_all('a', class_='pagingNormal'):
        onclick = a_tag.get('onclick')
        if onclick:
            match = re.search(r"'(/test/j/[^']+)'", onclick)
            if match:
                page_number = match.group(1).split('-')[-1].split('.')[0]
                max_page = max(max_page, int(page_number))
    return max_page


def download_excel_file(url, save_path):
    """
    下載Excel文件并保存到指定路徑。

    參數:
    url (str): Excel文件的URL。
    save_path (str): 文件的保存路徑。
    """
    headers = {
        "User-Agent": "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/91.0.4472.124 Safari/537.36"
    }
    response = requests.get(url, headers=headers)
    if response.status_code == 200:
        with open(save_path, 'wb') as f:
            f.write(response.content)
        print(f"下載完成: {save_path}")
    else:
        print(f"Error: {response.status_code}, {response.text}")


def download_excel_data():
    """
    下載所有Excel數據文件。
    """
    base_url = 'https://test/index.html'  # 替換為實際網頁地址
    current_url = base_url
    page_number = 1

    html_content = fetch_html_page(current_url)
    if not html_content:
        return

    max_page = parse_html_for_max_page(html_content)
    print(f"最大頁面數: {max_page}")

    while page_number <= max_page:
        print(f"正在處理第 {page_number} 頁: {current_url}")
        html_content = fetch_html_page(current_url)
        if not html_content:
            break

        excel_links = parse_html_for_excel_links(html_content)
        if not excel_links:
            print("未找到Excel鏈接。")
            break

        for link in excel_links:
            full_url = f"https://www.test.cn{link}"
            # 提取日期和文件名部分
            file_path_parts = link.split('/')
            file_name = ('/'.join(file_path_parts[-3:-1]) + '/' + file_path_parts[-1]).replace('/', '-')
            save_path = os.path.join('downloads', file_name)
            os.makedirs(os.path.dirname(save_path), exist_ok=True)
            download_excel_file(full_url, save_path)

        if page_number < max_page:
            next_page_link = f"/test/d2bb5c19-{page_number + 1}.html"
            current_url = f"https://www.test.cn{next_page_link}"
            page_number += 1
        else:
            print("沒有更多頁面。")
            break


def read_excel_file(file_path):
    """
    讀取Excel文件內容。

    參數:
    file_path (str): Excel文件的路徑。

    返回:
    DataFrame: 讀取到的Excel文件內容,如果讀取失敗則返回None。
    """
    try:
        with warnings.catch_warnings():
            warnings.simplefilter("ignore", UserWarning)
            df = pd.read_excel(file_path, engine='openpyxl', header=None)
        return df
    except Exception as e:
        print(f"讀取Excel文件時出錯: {e}")
        return None


def process_excel_data(df):
    """
    處理Excel數據,將其轉換為字典格式。

    參數:
    df (DataFrame): Excel文件內容。

    返回:
    dict: 轉換后的字典數據。
    """
    if df is None:
        return {}

    # 處理合并單元格
    # df = df.fillna(method='ffill').fillna(method='bfill')

    # 將數據轉換為字典
    data_dict = {}
    current_section = None
    for index, row in df.iterrows():
        if index == 1:  # 第二行
            key = row[1]
            if pd.isnull(key):
                key = df.iloc[1, 0]
            value = row[2] if pd.notnull(row[2]) else None
            data_dict[key] = value
        elif index > 1:
            if pd.notnull(row[0]):
                current_section = row[0]
                data_dict[current_section] = {}
            if pd.notnull(row[1]):
                key = row[1]
                value = row[2] if pd.notnull(row[2]) else None
                data_dict[current_section][key] = value

    return data_dict


def process_downloaded_files(directory):
    """
    處理下載的Excel文件,提取數據。

    參數:
    directory (str): 存放下載文件的目錄路徑。

    返回:
    list: 包含所有處理后的數據字典的列表。
    """
    data_list = []
    for filename in os.listdir(directory):
        if filename.endswith('.xlsx'):
            file_path = os.path.join(directory, filename)
            df = read_excel_file(file_path)
            if df is not None:
                print(f"處理文件: {filename}")
                data_dict = process_excel_data(df)
                print(data_dict)  # 打印處理后的字典
                data_list.append(data_dict)
    return data_list


def plot_investor_trends(data_list):
    """
    繪制投資者數量趨勢圖。

    參數:
    data_list (list): 包含投資者數據的列表。
    """
    # 提取時間值和投資者數量
    dates = []
    individual_investors = []
    institutional_investors = []

    for data_dict in data_list:
        date_str = data_dict['統計指標']
        date = pd.to_datetime(date_str)
        dates.append(date)
        individual_investors.append(data_dict['證券公司開展業務情況']['個人投資者數量(萬名)'])
        institutional_investors.append(data_dict['證券公司開展業務情況']['機構投資者數量(家)'])

    # 創建折線圖
    fig, ax1 = plt.subplots(figsize=(10, 6))

    # 繪制個人投資者數量
    color = 'tab:red'
    ax1.set_xlabel('日期')
    ax1.set_ylabel('個人投資者數量(萬名)', color=color)
    ax1.plot(dates, individual_investors, color=color, label='個人投資者數量(萬名)', marker='o')
    ax1.tick_params(axis='y', labelcolor=color)

    # 創建第二個 Y 軸
    ax2 = ax1.twinx()  # 共享 X 軸

    # 繪制機構投資者數量
    color = 'tab:blue'
    ax2.set_ylabel('機構投資者數量(家)', color=color)
    ax2.plot(dates, institutional_investors, color=color, label='機構投資者數量(家)', marker='o')
    ax2.tick_params(axis='y', labelcolor=color)

    # 設置標題和圖例
    fig.tight_layout()  # 調整子圖參數,防止標簽重疊
    plt.title('投資者數量趨勢')
    fig.legend(loc='upper left', bbox_to_anchor=(0.1, 0.9))

    # 顯示圖形
    plt.show()


# 調用函數繪制投資者趨勢圖
plot_investor_trends(process_downloaded_files('downloads'))

到此這篇關于利用python抓取HTML頁面數據并作可視化數據分析的文章就介紹到這了,更多相關python抓取HTML頁面數據內容請搜索腳本之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持腳本之家!
