使用Python開發Markdown兼容公式格式轉換工具
一、工具背景
在技術寫作中經常遇到公式格式問題:MathML無法顯示、LaTeX格式錯亂…
本工具實現以下核心功能:
- 自動轉換MathML到KaTeX
- 標準化LaTeX公式格式
- 保留原文其他內容
- 圖形化操作界面

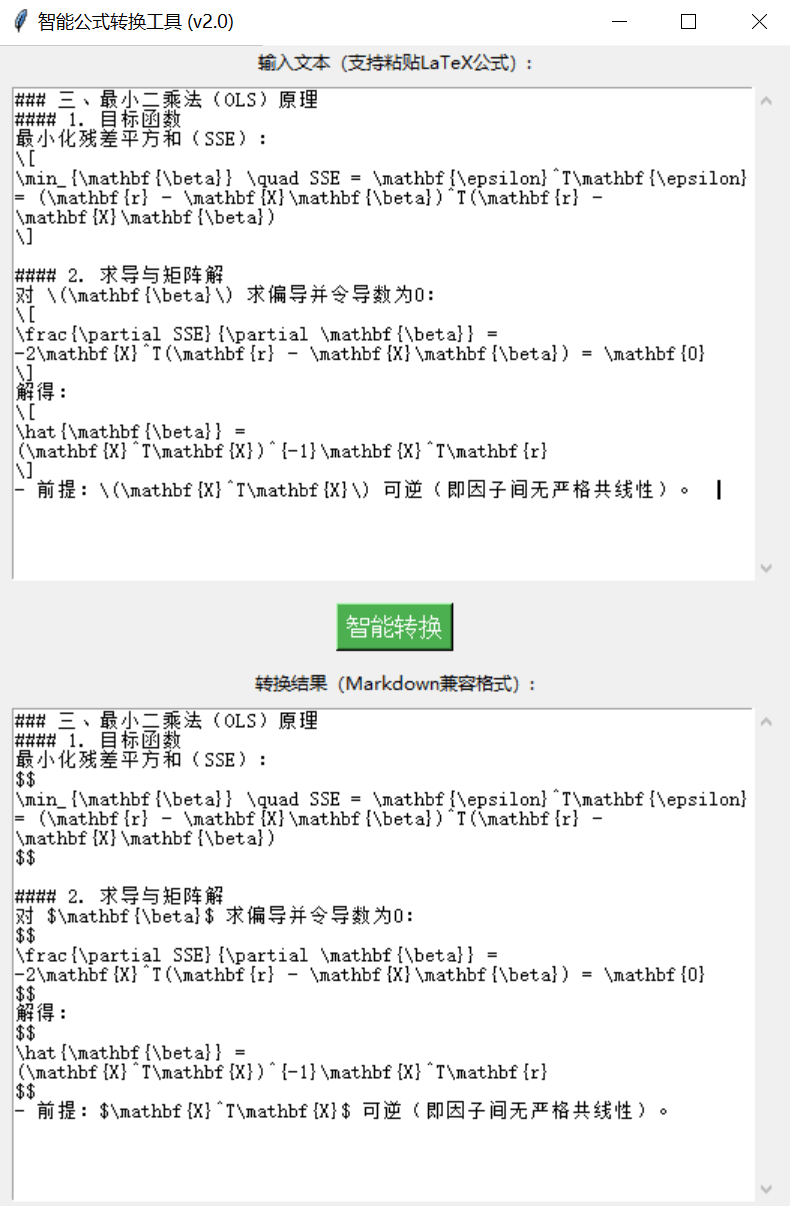

工具效果演示
二、環境配置(Windows 10/11)
1. 創建conda環境
# 打開PowerShell執行 conda create -n formula_tool python=3.8 conda activate formula_tool pip install tk lxml pyinstaller
2. 獲取XSLT轉換文件
# 下載MathML轉LaTeX的XSLT文件 Invoke-WebRequest -Uri "https://raw.githubusercontent.com/ronaldo1967/MathML-to-LaTeX/master/mathml2tex.xsl" -OutFile mathml2tex.xsl
三、完整Python代碼(帶GUI)
# formula_converter_gui.py import tkinter as tk from tkinter import scrolledtext, filedialog import re from lxml import etree import os class FormulaConverterGUI: def __init__(self, master): self.master = master master.title("公式格式轉換工具 v1.0") master.geometry("800x600") # 界面組件 self.create_widgets() self.xslt_path = "mathml2tex.xsl" def create_widgets(self): # 輸入框 self.input_label = tk.Label(self.master, text="輸入內容:") self.input_label.pack(pady=5) self.input_text = scrolledtext.ScrolledText(self.master, wrap=tk.WORD, height=15) self.input_text.pack(fill=tk.BOTH, expand=True, padx=10) # 操作按鈕 self.button_frame = tk.Frame(self.master) self.button_frame.pack(pady=10) self.convert_btn = tk.Button(self.button_frame, text="轉換公式", command=self.convert) self.convert_btn.pack(side=tk.LEFT, padx=5) self.clear_btn = tk.Button(self.button_frame, text="清空內容", command=self.clear) self.clear_btn.pack(side=tk.LEFT, padx=5) self.save_btn = tk.Button(self.button_frame, text="保存結果", command=self.save_file) self.save_btn.pack(side=tk.LEFT, padx=5) # 輸出框 self.output_label = tk.Label(self.master, text="轉換結果:") self.output_label.pack(pady=5) self.output_text = scrolledtext.ScrolledText(self.master, wrap=tk.WORD, height=15) self.output_text.pack(fill=tk.BOTH, expand=True, padx=10) # 狀態欄 self.status_bar = tk.Label(self.master, text="就緒", bd=1, relief=tk.SUNKEN, anchor=tk.W) self.status_bar.pack(side=tk.BOTTOM, fill=tk.X) def convert(self): content = self.input_text.get("1.0", tk.END) converted = self.process_content(content) self.output_text.delete("1.0", tk.END) self.output_text.insert(tk.END, converted) self.status_bar.config(text="轉換完成") def process_content(self, content): patterns = { 'latex_block': re.compile(r'\$\$(.*?)\$\$', re.DOTALL), 'latex_inline': re.compile(r'\$(.*?)\$'), 'mathml': re.compile(r'<math.*?>(.*?)</math>', re.DOTALL) } # 處理塊級公式 content = patterns['latex_block'].sub( lambda m: f'$$\n{m.group(1).strip()}\n$$', content ) # 處理行內公式 content = patterns['latex_inline'].sub( lambda m: f'${m.group(1).strip()}$', content ) # 處理MathML mathml_matches = patterns['mathml'].finditer(content) for match in mathml_matches: try: tex = self.mathml_to_tex(match.group(0)) content = content.replace(match.group(0), f'$$ {tex} $$') except Exception as e: self.status_bar.config(text=f"轉換失?。簕str(e)}") return content def mathml_to_tex(self, mathml_str): xslt = etree.parse(self.xslt_path) transform = etree.XSLT(xslt) doc = etree.fromstring(mathml_str) result = transform(doc) return str(result).strip() def clear(self): self.input_text.delete("1.0", tk.END) self.output_text.delete("1.0", tk.END) self.status_bar.config(text="已清空") def save_file(self): file_path = filedialog.asksaveasfilename( defaultextension=".md", filetypes=[("Markdown文件", "*.md"), ("所有文件", "*.*")] ) if file_path: with open(file_path, 'w', encoding='utf-8') as f: f.write(self.output_text.get("1.0", tk.END)) self.status_bar.config(text=f"文件已保存至:{file_path}") if __name__ == "__main__": root = tk.Tk() app = FormulaConverterGUI(root) root.mainloop()
四、核心功能解析
1. MathML轉換原理
def mathml_to_tex(mathml_str): xslt = etree.parse("mathml2tex.xsl") transform = etree.XSLT(xslt) return str(transform(etree.fromstring(mathml_str)))
2. 正則匹配引擎
# 塊級公式匹配 re.compile(r'\$\$(.*?)\$\$', re.DOTALL) # 行內公式匹配 re.compile(r'\$(.*?)\$')
五、工具使用說明
1. 界面操作流程
粘貼或輸入包含公式的內容
點擊"轉換公式"按鈕
查看右側轉換結果
使用"保存結果"導出Markdown文件
2. 支持格式示例
原始格式 | 轉換后格式 |
---|---|
<math>...</math> | $$ x = \frac{-b}{2a} $$ |
\Gamma(z)... | $$\Gamma(z)...$$ |
$E=mc^2$ | $E=mc^2$ |
