3種Python查看神經網絡結構的方法小結
1. 網絡結構代碼
import torch
import torch.nn as nn
# 定義Actor-Critic模型
class ActorCritic(nn.Module):
def __init__(self, state_dim, action_dim):
super(ActorCritic, self).__init__()
self.actor = nn.Sequential(
# 全連接層，輸入維度為 state_dim，輸出維度為 256
nn.Linear(state_dim, 64),
nn.ReLU(),
nn.Linear(64, action_dim),
# Softmax 函數，將輸出轉換為概率分布，dim=-1 表示在最后一個維度上應用 Softmax
nn.Softmax(dim=-1)
)
self.critic = nn.Sequential(
nn.Linear(state_dim, 64),
nn.ReLU(),
nn.Linear(64, 1)
)
def forward(self, state):
policy = self.actor(state)
value = self.critic(state)
return policy, value
# 參數設置
state_dim = 1
action_dim = 2
model = ActorCritic(state_dim, action_dim)
2. 查看結構
2.1 直接打印模型
print(model)
輸出：
ActorCritic(
(actor): Sequential(
(0): Linear(in_features=1, out_features=64, bias=True)
(1): ReLU()
(2): Linear(in_features=64, out_features=2, bias=True)
(3): Softmax(dim=-1)
)
(critic): Sequential(
(0): Linear(in_features=1, out_features=64, bias=True)
(1): ReLU()
(2): Linear(in_features=64, out_features=1, bias=True)
)
)
2.2 可視化網絡結構（需要安裝 torchviz 包）
安裝 torchsummary 包：
$ pip install torchsummary
python 代碼：
from torchviz import make_dot
# 創建一個虛擬輸入
x = torch.randn(1, state_dim)
# 生成計算圖
dot = make_dot(model(x), params=dict(model.named_parameters()))
dot.render("actor_critic_model", format="png") # 保存為PNG圖片
輸出 actor_critic_model
digraph {
graph [size="12,12"]
node [align=left fontname=monospace fontsize=10 height=0.2 ranksep=0.1 shape=box style=filled]
140281544075344 [label="
(1, 2)" fillcolor=darkolivegreen1]
140281544213744 [label=SoftmaxBackward0]
140281544213840 -> 140281544213744
140281544213840 [label=AddmmBackward0]
140281544213600 -> 140281544213840
140285722327344 [label="actor.2.bias
(2)" fillcolor=lightblue]
140285722327344 -> 140281544213600
140281544213600 [label=AccumulateGrad]
140281544214032 -> 140281544213840
140281544214032 [label=ReluBackward0]
140281544213984 -> 140281544214032
140281544213984 [label=AddmmBackward0]
140281544214176 -> 140281544213984
140285722327024 [label="actor.0.bias
(64)" fillcolor=lightblue]
140285722327024 -> 140281544214176
140281544214176 [label=AccumulateGrad]
140281544214224 -> 140281544213984
140281544214224 [label=TBackward0]
140281543934832 -> 140281544214224
140285722327264 [label="actor.0.weight
(64, 1)" fillcolor=lightblue]
140285722327264 -> 140281543934832
140281543934832 [label=AccumulateGrad]
140281544213648 -> 140281544213840
140281544213648 [label=TBackward0]
140281544214080 -> 140281544213648
140285722327184 [label="actor.2.weight
(2, 64)" fillcolor=lightblue]
140285722327184 -> 140281544214080
140281544214080 [label=AccumulateGrad]
140281544213744 -> 140281544075344
140285722328704 [label="
(1, 1)" fillcolor=darkolivegreen1]
140281544213888 [label=AddmmBackward0]
140281544214368 -> 140281544213888
140285722328064 [label="critic.2.bias
(1)" fillcolor=lightblue]
140285722328064 -> 140281544214368
140281544214368 [label=AccumulateGrad]
140281544214128 -> 140281544213888
140281544214128 [label=ReluBackward0]
140281544214464 -> 140281544214128
140281544214464 [label=AddmmBackward0]
140281544214512 -> 140281544214464
140285722327424 [label="critic.0.bias
(64)" fillcolor=lightblue]
140285722327424 -> 140281544214512
140281544214512 [label=AccumulateGrad]
140281544214560 -> 140281544214464
140281544214560 [label=TBackward0]
140281544214704 -> 140281544214560
140285722327504 [label="critic.0.weight
(64, 1)" fillcolor=lightblue]
140285722327504 -> 140281544214704
140281544214704 [label=AccumulateGrad]
140281544213696 -> 140281544213888
140281544213696 [label=TBackward0]
140281544214272 -> 140281544213696
140285722327584 [label="critic.2.weight
(1, 64)" fillcolor=lightblue]
140285722327584 -> 140281544214272
140281544214272 [label=AccumulateGrad]
140281544213888 -> 140285722328704
}

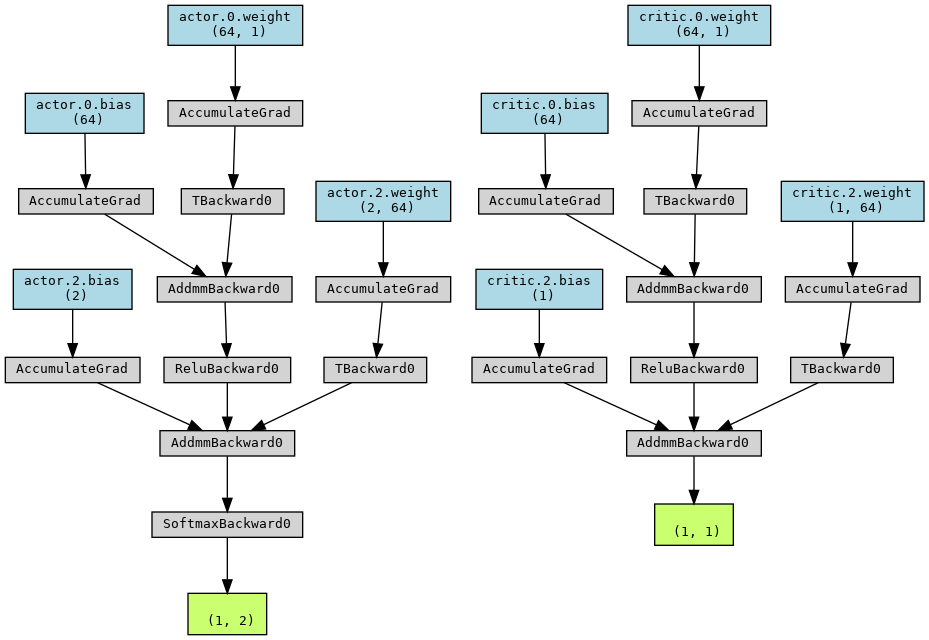

輸出模型圖片：
2.3 使用 summary 方法（需要安裝 torchsummary 包）
安裝 torchsummary 包：
pip install torchsummary
代碼：
from torchsummary import summary
device = torch.device("cuda:0" if torch.cuda.is_available() else "cpu")
print(device)
model = model.to(device)
summary(model, input_size=(state_dim,))
#查看模型參數
print("查看模型參數：")
for name, param in model.named_parameters():
print(f"Layer: {name} | Size: {param.size()} | Values: {param[:2]}...")
輸出：
cuda:0
----------------------------------------------------------------
Layer (type) Output Shape Param #
================================================================
Linear-1 [-1, 64] 128
ReLU-2 [-1, 64] 0
Linear-3 [-1, 2] 130
Softmax-4 [-1, 2] 0
Linear-5 [-1, 64] 128
ReLU-6 [-1, 64] 0
Linear-7 [-1, 1] 65
================================================================
Total params: 451
Trainable params: 451
Non-trainable params: 0
----------------------------------------------------------------
Input size (MB): 0.00
Forward/backward pass size (MB): 0.00
Params size (MB): 0.00
Estimated Total Size (MB): 0.00
----------------------------------------------------------------
查看模型參數：
Layer: actor.0.weight | Size: torch.Size([64, 1]) | Values: tensor([[ 0.7747],
[-0.0440]], device='cuda:0', grad_fn=<SliceBackward0>)...
Layer: actor.0.bias | Size: torch.Size([64]) | Values: tensor([ 0.5995, -0.2155], device='cuda:0', grad_fn=<SliceBackward0>)...
Layer: actor.2.weight | Size: torch.Size([2, 64]) | Values: tensor([[ 0.0373, 0.0851, 0.1000, 0.1060, 0.0387, 0.0479, 0.0127, 0.0696,
0.0388, 0.0033, 0.1173, -0.1195, -0.0830, 0.0186, 0.0063, -0.0863,
-0.0353, 0.0782, -0.0558, 0.0011, -0.0533, 0.1241, 0.0120, -0.0906,
-0.0551, -0.0673, -0.1070, 0.0402, -0.0662, 0.0596, -0.0811, 0.0457,
0.0349, 0.0564, -0.0155, -0.0404, 0.0843, -0.0978, 0.0459, 0.1097,
-0.0858, 0.0736, -0.0067, -0.0756, -0.0363, -0.0525, -0.0426, -0.1087,
-0.0611, 0.0420, -0.1038, 0.0402, 0.0065, -0.1217, -0.0467, 0.0383,
-0.0217, 0.0283, 0.0800, 0.0228, 0.0415, -0.0473, -0.0199, -0.0436],
[-0.1118, -0.0806, -0.0700, -0.0224, 0.0335, -0.0087, 0.0265, -0.1196,
-0.0907, -0.0360, 0.0621, -0.0471, -0.0939, -0.0912, -0.1061, 0.1051,
-0.0592, -0.0757, 0.0758, -0.1082, -0.0317, 0.1208, -0.0279, -0.0693,
0.0920, -0.0318, -0.0476, 0.0236, -0.0761, 0.0591, 0.0862, -0.0712,
0.0156, -0.1073, 0.1133, 0.0039, -0.0191, 0.0605, -0.0686, -0.1202,
0.0962, 0.0581, 0.1145, 0.0741, -0.0993, -0.0987, 0.0939, 0.1006,
0.0773, -0.0756, -0.1096, 0.0156, -0.0599, 0.0857, 0.1005, -0.0618,
0.0474, 0.0066, -0.0531, -0.0479, 0.1136, 0.0356, 0.1169, -0.0023]],
device='cuda:0', grad_fn=<SliceBackward0>)...
Layer: actor.2.bias | Size: torch.Size([2]) | Values: tensor([-0.0039, 0.0937], device='cuda:0', grad_fn=<SliceBackward0>)...
Layer: critic.0.weight | Size: torch.Size([64, 1]) | Values: tensor([[0.5799],
[0.0473]], device='cuda:0', grad_fn=<SliceBackward0>)...
Layer: critic.0.bias | Size: torch.Size([64]) | Values: tensor([ 0.6507, -0.6974], device='cuda:0', grad_fn=<SliceBackward0>)...
Layer: critic.2.weight | Size: torch.Size([1, 64]) | Values: tensor([[ 0.0738, -0.0370, -0.1010, -0.0333, -0.0595, -0.0172, 0.0928, 0.0815,
0.1221, -0.0842, 0.0511, 0.0452, -0.0386, -0.0503, -0.0964, 0.0370,
-0.0341, -0.0693, -0.0845, 0.0424, -0.0491, -0.0439, -0.0443, 0.0203,
0.0960, -0.1178, -0.0836, -0.0144, -0.0576, -0.0851, 0.0461, 0.1160,
0.0120, 0.1180, 0.0255, 0.1047, -0.0398, 0.0786, 0.1143, 0.0806,
0.1125, 0.0267, 0.0534, -0.0318, 0.1125, -0.0727, 0.1169, 0.0120,
-0.0178, -0.0845, 0.0069, 0.0194, 0.1188, 0.0481, 0.1077, -0.0840,
0.1013, 0.0586, -0.0857, -0.0974, -0.0630, 0.0359, -0.0080, -0.0926]],
device='cuda:0', grad_fn=<SliceBackward0>)...
Layer: critic.2.bias | Size: torch.Size([1]) | Values: tensor([0.0621], device='cuda:0', grad_fn=<SliceBackward0>)...
到此這篇關于3種Python查看神經網絡結構的方法小結的文章就介紹到這了,更多相關Python查看神經網絡結構內容請搜索腳本之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持腳本之家！
